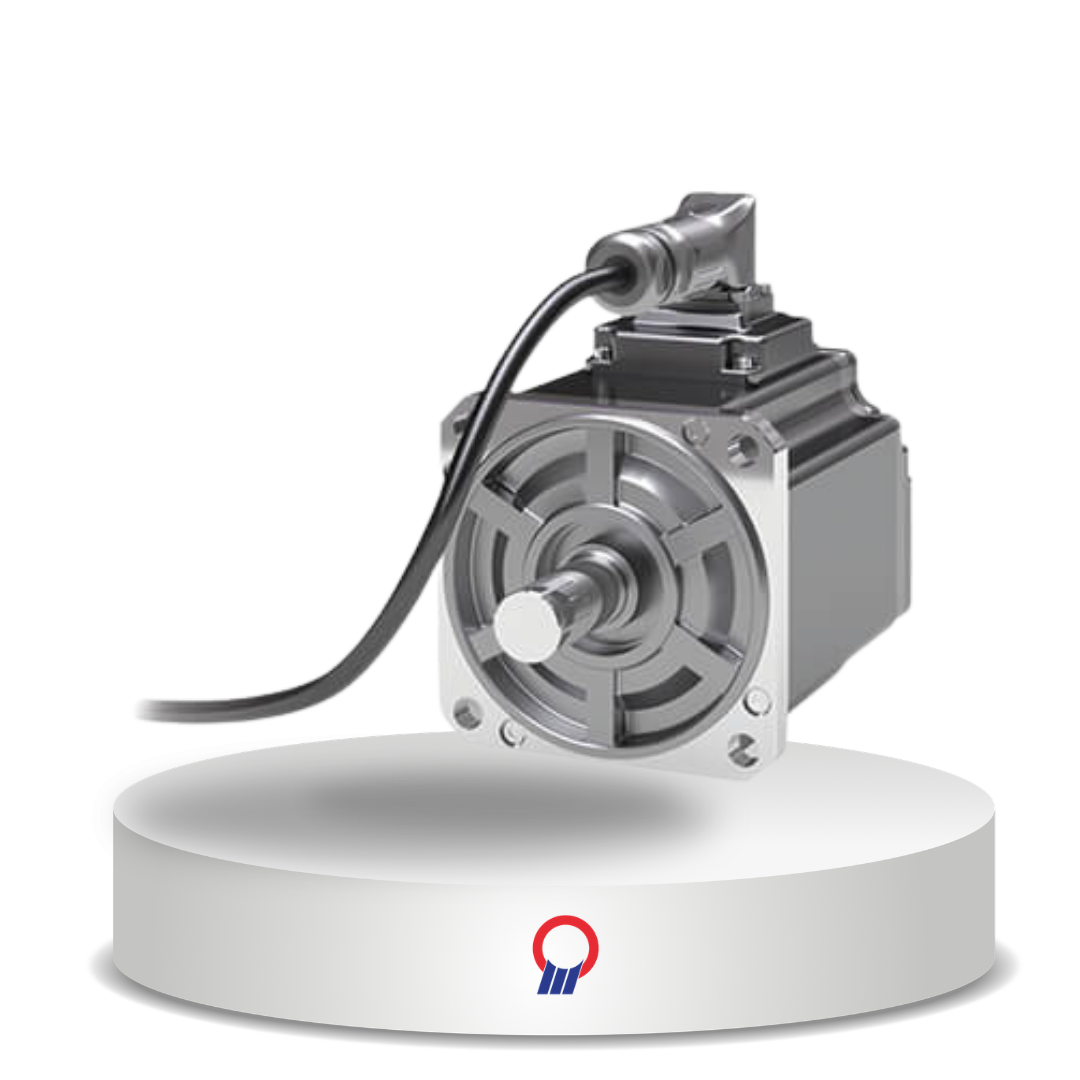

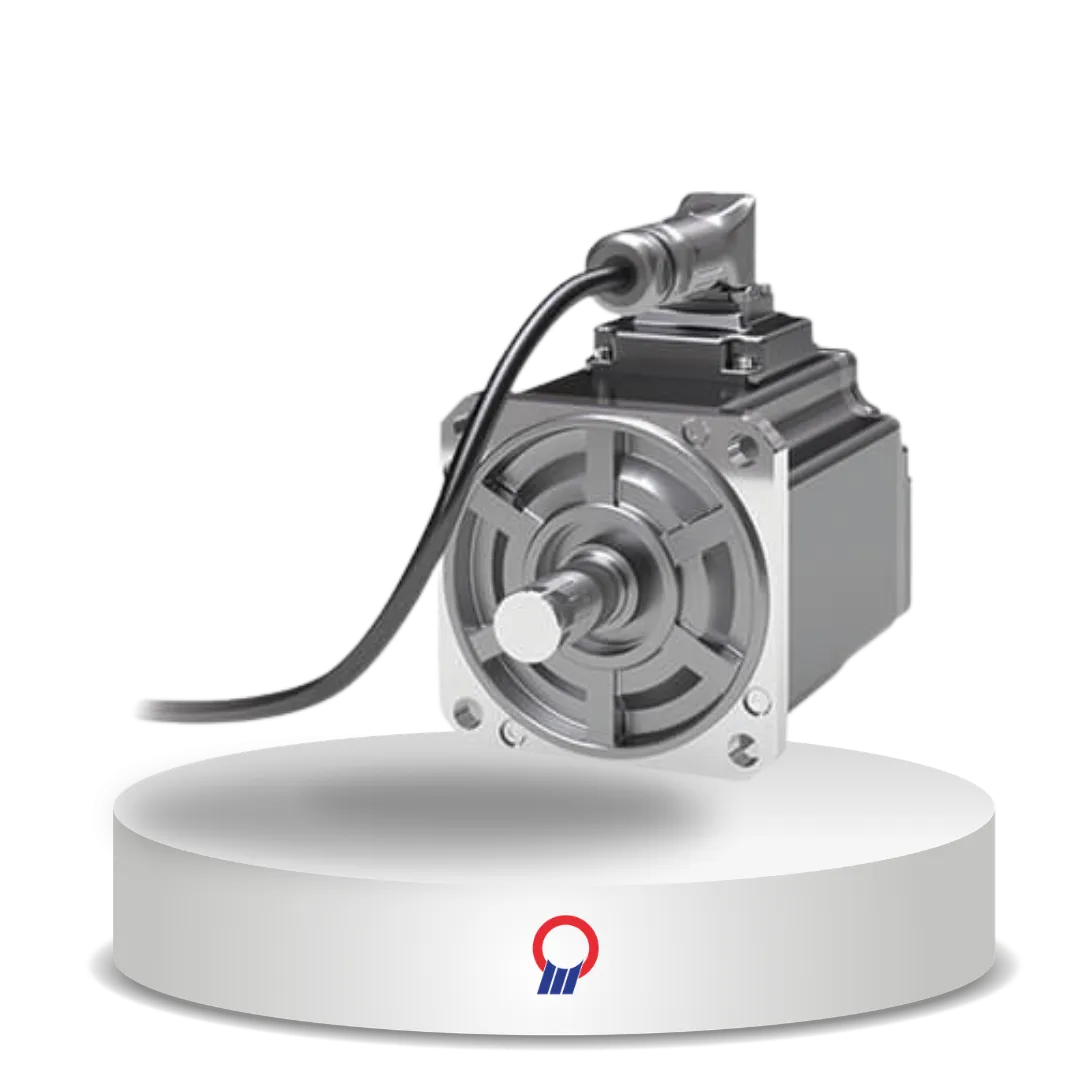

1S Motors with Safety Functionality

1S Motors with Safety Functionality

Overview

Memiliki kapasitas daya 230 VAC dari 200 W hingga 1,5 kW, dan 400 VAC dari 750 W hingga 3 kW.

Specifications

  • Encoder absolut multi-turn tanpa baterai dengan sertifikasi keselamatan

  • Encoder resolusi tinggi 20-bit

  • One click connection

  • Konektor berputar

  • Mampu mengurangi getaran pada mesin dengan kekakuan rendah saat akselerasi dan deselerasi

  • Koneksi satu kabel: kabel daya, encoder, dan rem digabung dalam kabel pra-rakit dengan konektor IP67

Specification

Series

Product Description
R88M-1AL1K030C-BS2 1SA AC servo motor, 1 kW, 400 VAC, 3000 rpm, 3.18 Nm, absolute encoder, with brake
R88M-1AL1K030C-S2 1SA AC servo motor, 1 kW, 400 VAC, 3000 rpm, 3.18 Nm, absolute encoder
R88M-1AL1K030T-BS2 1SA AC servo motor, 1 kW, 230 VAC, 3000 rpm, 3.18 Nm, absolute encoder, with brake
R88M-1AL1K030T-S2 1SA AC servo motor, 1 kW, 230 VAC, 3000 rpm, 3.18 Nm, absolute encoder
R88M-1AL1K530C-BS2 1SA AC servo motor, 1.5 kW, 400 VAC, 3000 rpm, 4.77 Nm, absolute encoder, with brake
R88M-1AL1K530C-S2 1SA AC servo motor, 1.5 kW, 400 VAC, 3000 rpm, 4.77 Nm, absolute encoder
R88M-1AL1K530T-BS2 1SA AC servo motor, 1.5 kW, 230 VAC, 3000 rpm, 4.77 Nm, absolute encoder, with brake
R88M-1AL1K530T-S2 1SA AC servo motor, 1.5 kW, 230 VAC, 3000 rpm, 4.77 Nm, absolute encoder
R88M-1AL2K030C-BS2 1SA AC servo motor, 2 kW, 400 VAC, 3000 rpm, 6.37 Nm, absolute encoder, with brake
R88M-1AL2K030C-S2 1SA AC servo motor, 2 kW, 400 VAC, 3000 rpm, 6.37 Nm, absolute encoder
R88M-1AL3K030C-BS2 1SA AC servo motor, 3 kW, 400 VAC, 3000 rpm, 9.55 Nm, absolute encoder, with brake
R88M-1AL3K030C-S2 1SA AC servo motor, 3 kW, 400 VAC, 3000 rpm, 9.55 Nm, absolute encoder
R88M-1AL75030C-BS2 1SA AC servo motor, 750 W, 400 VAC, 3000 rpm, 2.39 Nm, absolute encoder, with brake
R88M-1AL75030C-S2 1SA AC servo motor, 750 W, 400 VAC, 3000 rpm, 2.39 Nm, absolute encoder
R88M-1AM1K515C-BS2 1SA AC servo motor, 1.5 kW, 400 VAC, 1500 rpm, 9.55 Nm, absolute encoder, with brake
R88M-1AM1K515C-S2 1SA AC servo motor, 1.5 kW, 400 VAC, 1500 rpm, 9.55 Nm, absolute encoder
R88M-1AM1K515T-BS2 1SA AC servo motor, 1.5 kW, 230 VAC, 1500 rpm, 9.55 Nm, absolute encoder, with brake
R88M-1AM1K515T-S2 1SA AC servo motor, 1.5 kW, 230 VAC, 1500 rpm, 9.55 Nm, absolute encoder
R88M-1AM20030T-BS2 1SA AC servo motor, 200 W, 230 VAC, 3000 rpm, 0.637 Nm, absolute encoder, with brake
R88M-1AM20030T-S2 1SA AC servo motor, 200 W, 230 VAC, 3000 rpm, 0.637 Nm, absolute encoder
R88M-1AM3K015C-BS2 1SA AC servo motor, 3 kW, 400 VAC, 1500 rpm, 19.1 Nm, absolute encoder, with brake
R88M-1AM3K015C-S2 1SA AC servo motor, 3 kW, 400 VAC, 1500 rpm, 19.1 Nm, absolute encoder
R88M-1AM40030T-BS2 1SA AC servo motor, 400 W, 230 VAC, 3000 rpm, 1.27 Nm, absolute encoder, with brake
R88M-1AM40030T-S2 1SA AC servo motor, 400 W, 230 VAC, 3000 rpm, 1.27 Nm, absolute encoder
R88M-1AM75030T-BS2 1SA AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, absolute encoder, with brake
R88M-1AM75030T-S2 1SA AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, absolute encoder
