Highlighted Features
- 2 input channels of AC Current and/or Voltage
- Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?

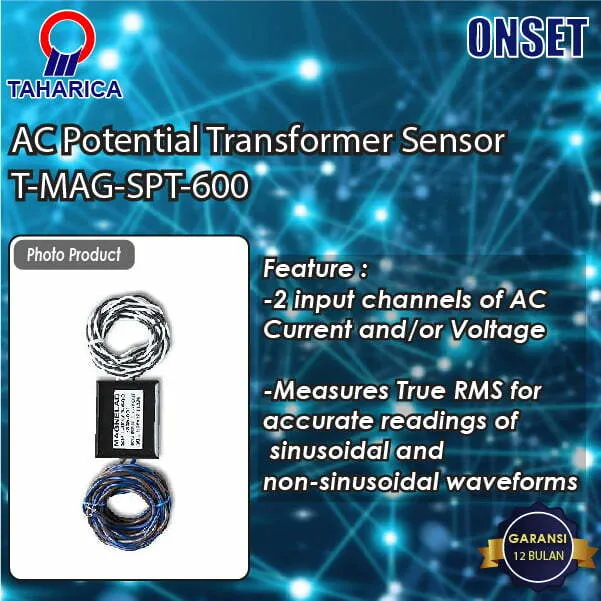

The T-MAG-SPT-600 sensor supports the following measurement: AC Voltage
The country of origin for this product is the United States. To see the full specifications for this product, please see our product manual found under the documentation tab if available
Measurement range: 150, 300, 600 Volts AC
Accuracy: ±1% (from 10% to 130% of rated voltage)
Phase angle: <1 degree
Output signal to FlexSmart Module: 0.333 Volt at rated input voltage
Connections: 8-ft PVC insulated wire, UL1015
High voltage input: #14 AWG, blue/brown
Low voltage output: #22 AWG twisted pair, black/white
Construction: Epoxy filled ABS plastic
Dimensions: 5.5 cm x 3.9 cm x 3.1 cm (2.2″ x 1.6″ x 1.2″)
Weight: 491.2g (17.33oz)
Number of data channels: 1
