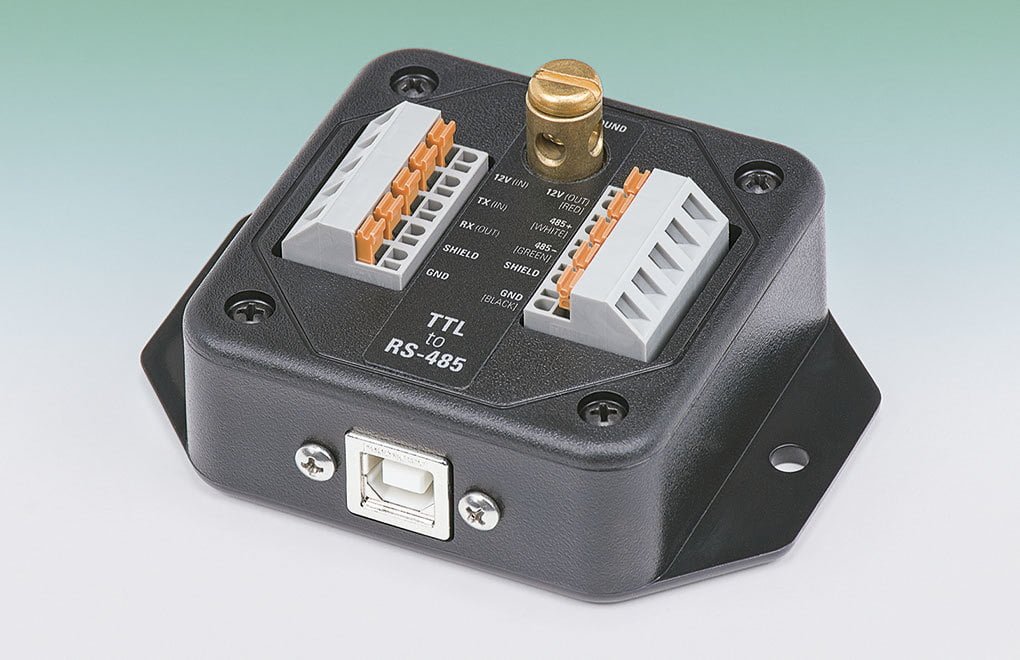

Addressable Bus Converter Model 8020-38

Power Supply Input:     USB: 5 Volts DC 500 mA;
TTL: 12 Volts DC 500 mA

Power Supply Output:  12 Volts DC 200 mA (max)

Sleep Current:                500 µA Max (During USB Suspend)

Operating Current:        15 mA (max)

Interface:                         RS-485 (half-duplex, two-wire differential);
USB 1.0 to USB 3.1;
5 V TTL (single-ended);
5 V TTL (single-ended, inverted)

Temperature Range:     −40°C to +80°C

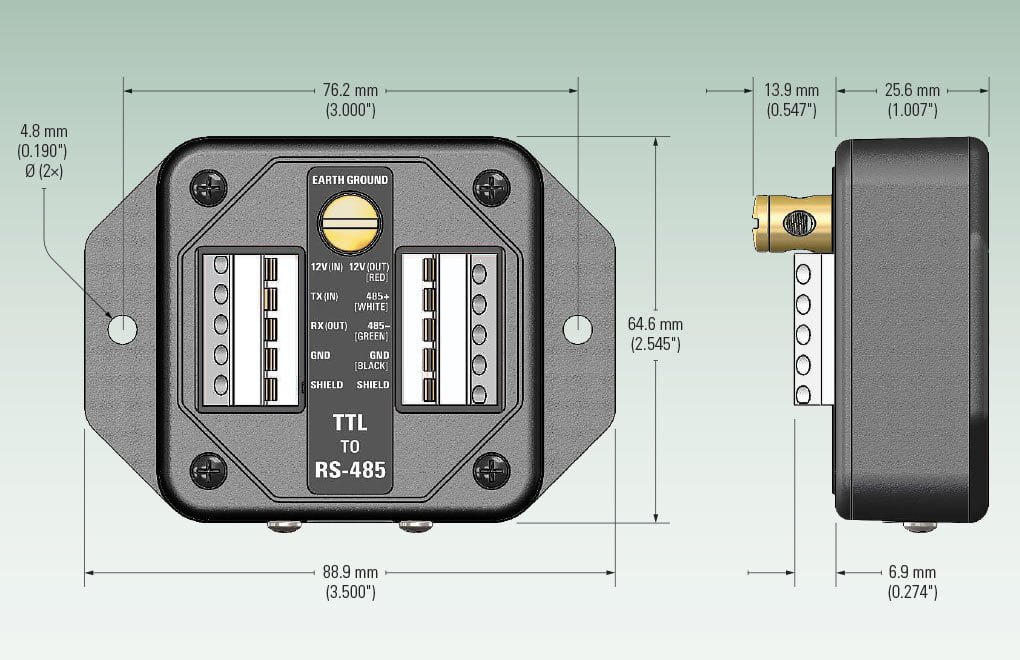

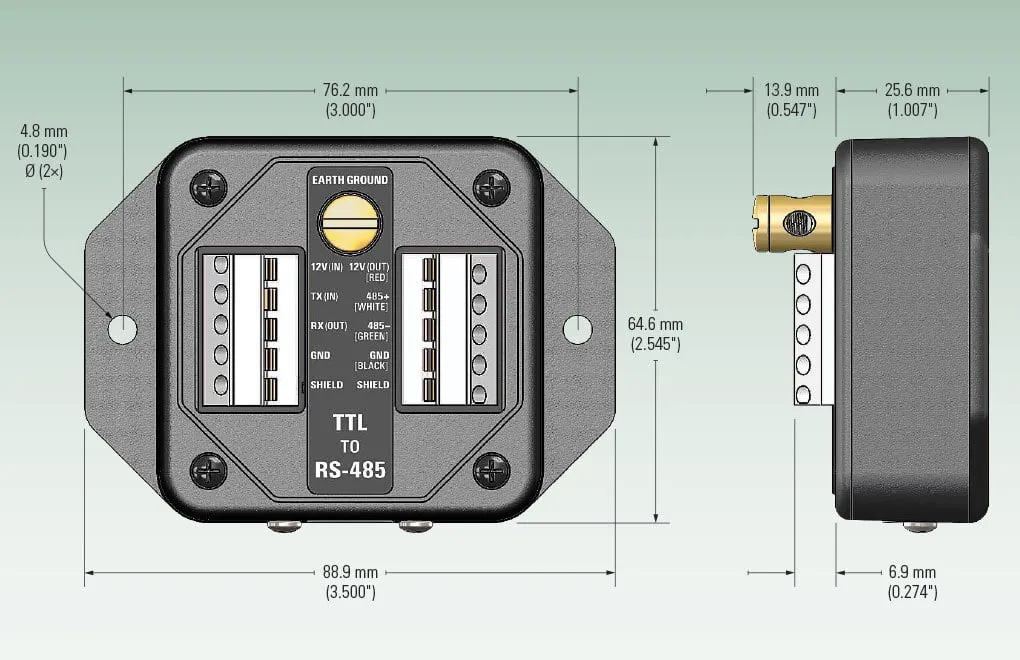

L × W × H:                      88.9 × 64.6 × 39.5 mm
