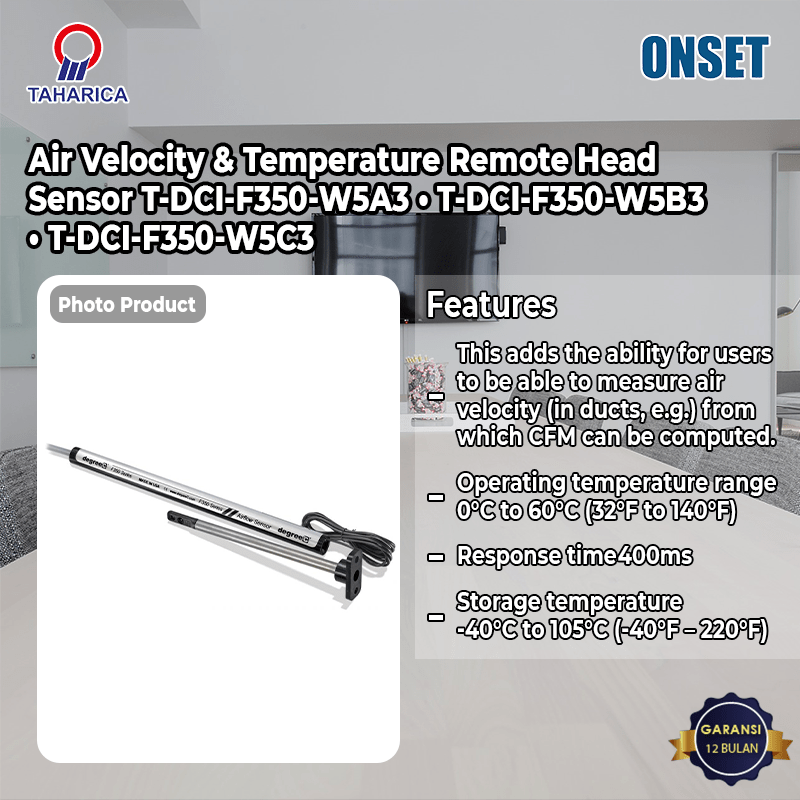

Highlighted Features
This adds the ability for users to be able to measure air velocity (in ducts, e.g.) from which CFM can be computed.
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-DCI-F350-W5x3 sensor supports the following measurement: Air Velocity
The country of origin for this product is the United States. To see the full specifications for this product, please see our product manual found under the documentation tab if available
| Operating temperature range | 0°C to 60°C (32°F to 140°F) |
| Velocity range | 0.15 to 1.0 m/s (30 to 200 fpm) 0.5 to 10 m/s (100 to 2,000 fpm) 1.0 to 20 m/s (200 to 4,000 fpm) |
| Response time | 400ms |
| Storage temperature | -40°C to 105°C (-40°F – 220°F) |
| Relative humidity (non-condensing) | 5-95% |
| Supply power requirements | 4.5-15 VDC, 35mA nominal |
| Velocity Output | 0-5V |
| Temperature output | 0-5V |
| Housing Construction | Polycarbonate (PC), UL94-V0 (head) UL94-HB (housing) |
| Plenum rated cable | 22 AWG |
| Environmental Protection | IP65 electronics, including conformal coated sensing element |
| Accuracy | 0.15 to 1.0 m/s (30 to 200 fpm): ± (1% of reading + 0.05 m/s [10 fpm]) 0.5 to 10 m/s (100 to 2,000 fpm): ± (4% of reading + 0.10 m/s [20 fpm]) 1.0 to 20 m/s (200 to 4,000 fpm): ± (5% of reading + 0.15 m/s [30 fpm]) |
| Stainless Steel Wand | 127mm (5″) |
| Sensor Head Height | 64mm (.25″) |
| Housing Length | 196 mm [7.75″] |
| Cable Length from Housing to Sensor Head | 1m [3′] |
