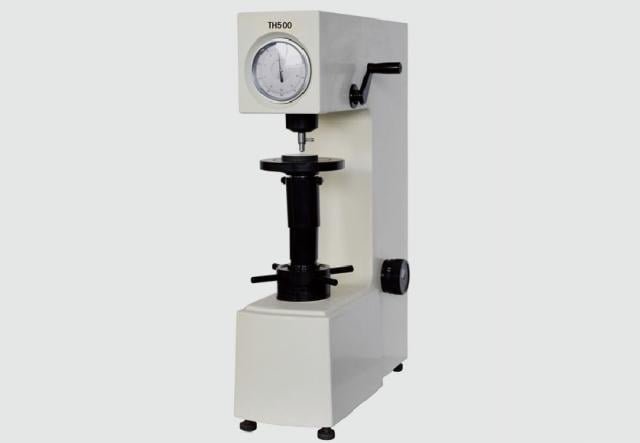

Analog Rockwell Hardness Tester TH500

TH500 Rockwell hardness tester is a popularly-used hardness testing instrument to measure the Rockwell hardness of the materials. No need for power supply, the speed of the test force loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It has easy operation and stable performance, therefore it is widely used.
Application Range
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.Features

● Rockwell hardness tester TH500 for mechanical project manual testing

● Practical economical solution, wide range measurement and simple operation.

● Wide usage range: hardened steel, the tempering steel, steel, steel rolling, annealing cold malleable iron, aluminum alloy, copper and so on.

Specification

Model

TH500

Initial Test Force

10kgf (98.07N)

Total Test Force

60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter

Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method

Manual

Hardness Reading

Dial

Resolution

0.5HR

Max. Height of Specimen

175mm

Throat

165mm

Execute Standard

ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2

Dimension

520×245×700mm，Packing Dimension: 650×370×950mm

Weight

Net Weight: 78kg，Gross Weight: 100kg



Packing List

Name

Qty

 Name

Qty
Instrument Main Body

1 set

 Diamond Rockwell Indenter

1 pc
ф1.588mmBall Indenter

1 pc

 Middle Plane Test Table

1 pc
Large Plane Test Table

1 pc

 V-shaped Test Table

1 pc
Hardness Block 60~70 HRC

1 pc

 Hardness Block 20~30 HRC

1 pc
Hardness Block 80~100 HRB

1 pc

 Weight A, B, C

3 pcs
Anti-dust Cover

1 pc

 Usage Instruction Manual

1 copy
