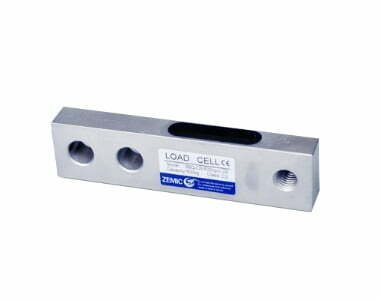

B8Q stainless steel shear beam load cell, OIML approved (200kg-2t)

B8Q stainless steel shear beam load cell, OIML approved (200kg-2t) - Image 3

B8Q stainless steel shear beam load cell, OIML approved (200kg-2t) - Image 4

B8Q stainless steel shear beam load cell, OIML approved (200kg-2t) - Image 5

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models B8Q

Technical Specifications B8Q

Spesifikasi

Stainless steel IP67 shear beam load cell
Low profile
Suitable for hopper, floor and other electronic scales
Current calibrated (SC-option)

Available Models

Capacity Accuracy Full article description
200kg C3 Excluded from OIML B8Q-C3-200kg-3B-SC(-W6)
500kg C3 B8Q-C3-500kg-3B-SC(-W6)
1000kg C3 B8Q-C3-1000kg-3B-SC(-W6)
2000kg C3 B8Q-C3-2000kg-3B-SC(-W6)
