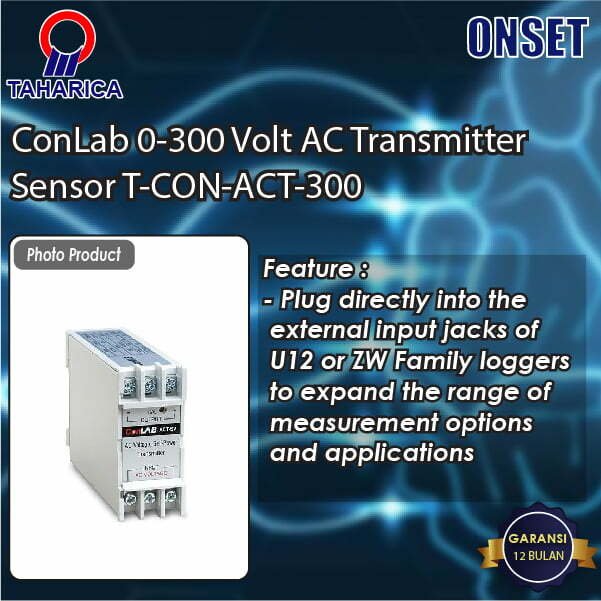

ConLab 0-300 Volt AC Transmitter Sensor T-CON-ACT-300

Jual Data Logger energi | Distributor Data Logger Hobo di Indonesia | Distributor Weather Station ( alat ukur cuaca )

0-300 volt self-powered transformer for monitoring sine wave, single-phase AC voltage. Requires Input Cable for use with U12 loggers.

Highlighted Features

Plug directly into the external input jacks of U12 and ZW Family loggers to expand the range of measurement options and applications

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The T-CON-ACT-300 sensor supports the following measurement: AC Voltage

The country of origin for this product is Israel. To see the full specifications for this product, please see our product manual found under the documentation tab if available

Ranges: 0–300 volts RMS
Sensor accuracy: < ±0.1% of span (20% to 120% of range) ±0.25% of span (10% of range)
Over range: +20% of span
Over load: +40% of span
Frequency: 60 Hz AC
Supply: Self-powered
Output: 0–20 mA
Response time to 90%: <240 msec
Operating conditions: -20° to 70°C (-4° to 158°F); 5-95% RH, non-condensing
Housing: Plastic polycarbonate

Protection Level
Box: According to IP-50 DIN 40050
Terminals: According to IP-10 DIN 40050

Mounting: Standard 35mm DIN rail

Notes: Because these sensors tie directly into the line, they should be used only by qualified personnel.

Requirements

For U12 & H8 Loggers: Input Cable (Part # CABLE-4-20mA)
For HOBO Energy Logger: FlexSmart Analog Module (Part # S-FS-CVIA)
