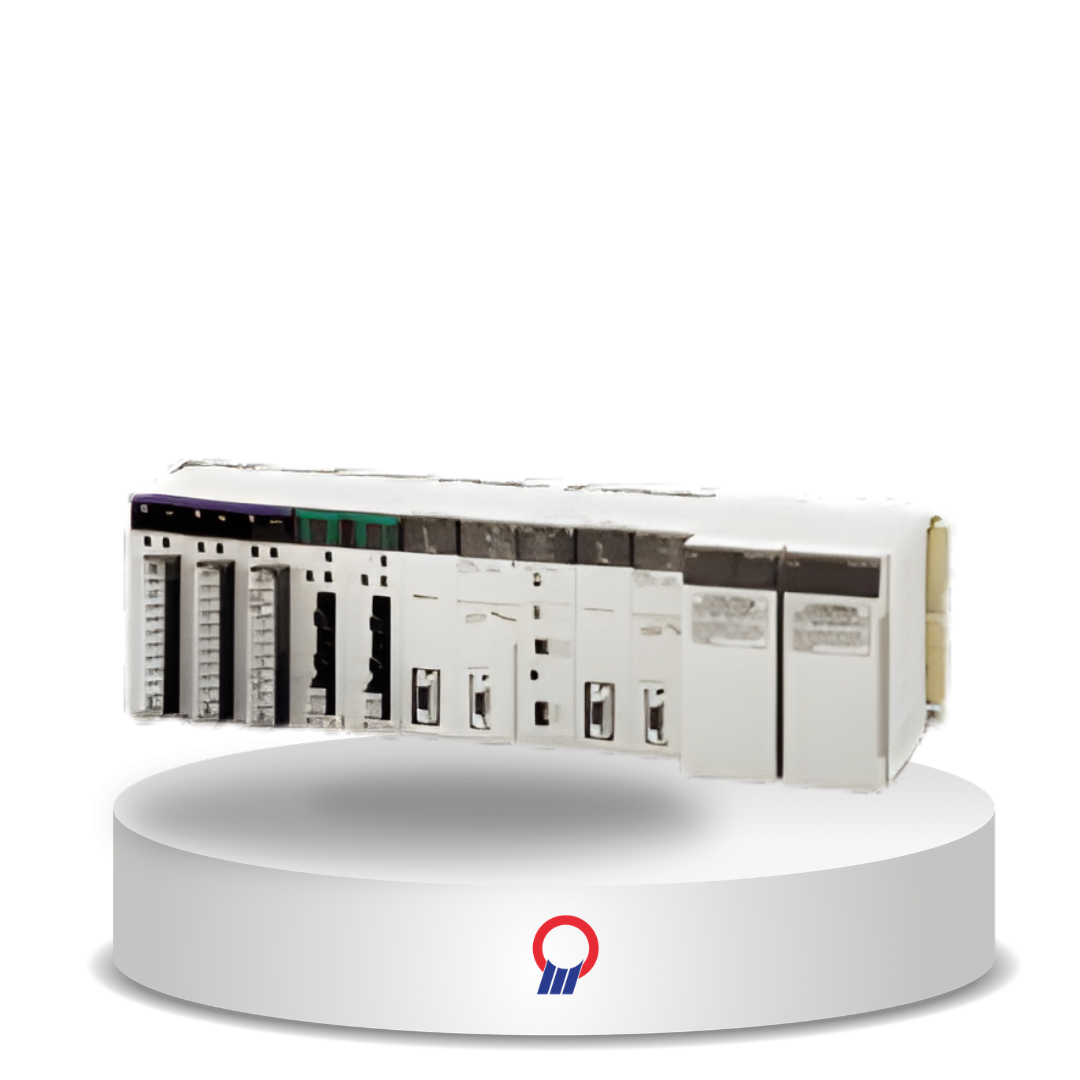

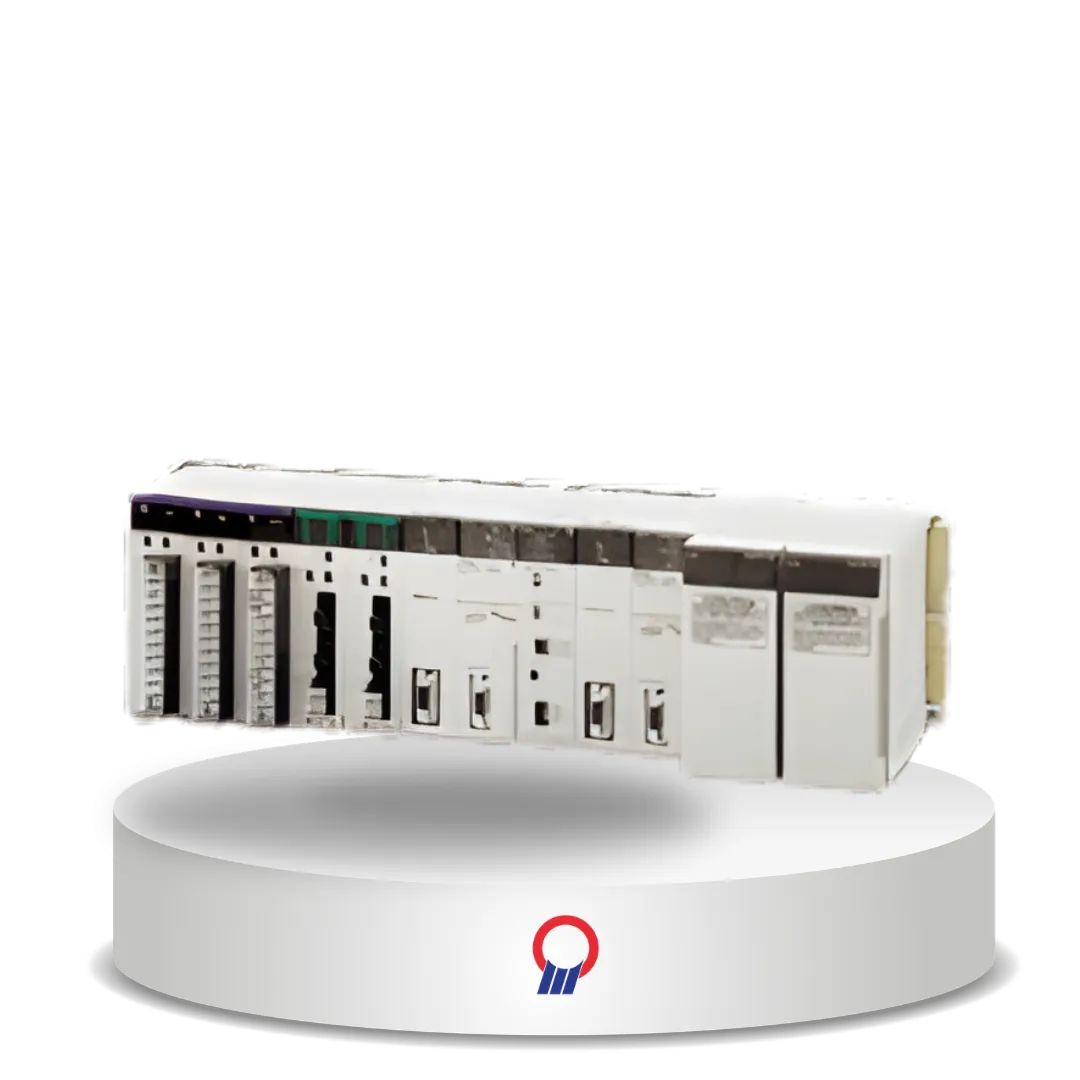

CS1D menambahkan berbagai opsi dual-redundancy pada arsitektur CS1 yang telah terbukti andal, untuk memastikan operasi 24 jam tanpa henti dengan downtime yang sangat minimal. Duplex CPU, dengan atau tanpa fungsi loop control, secara terus-menerus saling memeriksa kesalahan tanpa memerlukan program khusus dari pengguna. Ketersediaan sistem juga dapat ditingkatkan dengan menggunakan dual power supply. Selain itu, hot swapping pada CPU, power supply, dan unit I/O memungkinkan proses pemeliharaan dilakukan dengan sedikit atau tanpa gangguan pada proses produksi.
| Description | Remarks | Order code |
|---|---|---|
| High-speed data collection and storage unit, with CF card slot and Ethernet port | CPU bus unit | CS1W-SPU01-V2 |
| High-speed data collection and storage unit, with CF card slot and 2 Ethernet ports | CPU bus unit | CS1W-SPU02-V2 |
| Duplex unit, required for CS1D-CPU6_H systems | – | CS1D-DPL01 |
| Serial communication option board, 2 x RS-232C | – | CS1W-SCB21-V1 |
| Serial communication option board, 1 x RS-232C + 1 x RS422/RS-485 | – | CS1W-SCB41-V1 |
| Loop control option board | 50 control blocks max. | CS1W-LCB01 |
| Loop control option board | 300 control blocks max. | CS1W-LCB05 |
| Replacement battery set, for all CS1 CPUs | – | CS1W-BAT01 |
| Compact Flash memory card, 128 MB, for all models (not required for operation) | Industrial grade | HMC-EF183 |
| Compact Flash memory card, 256 MB, for all models (not required for operation) | Industrial grade | HMC-EF283 |
| Compact Flash memory card, 512 MB, for all models (not required for operation) | Industrial grade | HMC-EF583 |
| Compact Flash PC-Card adapter | – | HMC-AP001 |
| CX-One, integrated software for programming and configuration of all Omron control system components | – | CX-ONE-AL__C-E |
| Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port | length: 2.0 m | CS1W-CN226 |
| Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port | length: 6.0 m | CS1W-CN626 |
| USB to serial conversion cable | – | CS1W-CIF31 |
