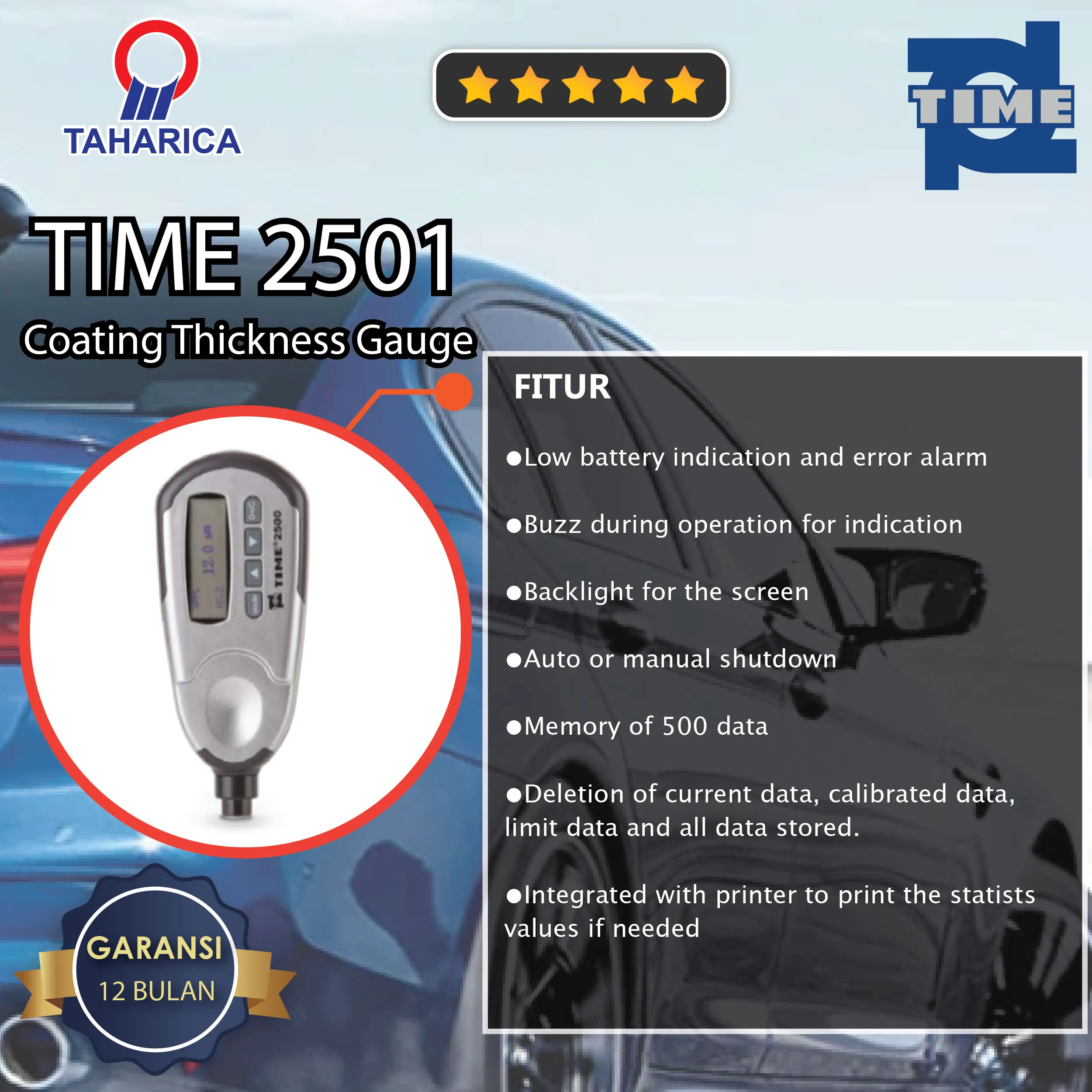

Digital Coating Thickness Gauge TIME®2501 Economic NF Type

TIME2501 is a super mini gauge, capable of measuring rapidly, nondestructively and precisely the thickness of insulating coatings on non-magnetic metallic base. This thickness gauge adopts the eddy current principle to measure the thickness of insulating coatings on non-magnetic metallic base (enamel, rubber, paint and plastics coatings on the base of copper, aluminum, zinc, tin, etc.). TIME2501 coating thickness gauge can be applied extensively in the manufacturing, metal processing and chemical industries and commodity inspection. Due to its small size and the integration of the probe and the instrument, it is especially useful in on-the-spot measuring at engineering sites.

Features

Integrated with Probe N: the eddy current principle to measure the thickness of insulating coatings on non-magnetic materials.
Zero point calibration and two-point calibration to correct the system error of the probe
Features two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE
Statistics include the mean, maximum, minimum, test numbers and standard deviation.
Memory of 500 data
Deletion of current data, calibrated data, limit data and all data stored.
Integrated with printer to print the statists values if needed
Low battery indication and error alarm
Buzz during operation for indication
Backlight for the screen
Auto or manual shutdown

Technical Specification

Type	Working principle	Scope of measurement(μm)	Low limit differentation(μm)	Display value tolerance(μm)
				Zero point calibration	Two-point calibration
TIME®2501	Eddy current	0-1250	0.1	±(3%H + 1.5)	±[(1%-3%)H + 1.5]

Type	Min.curvature radius of the object to be measurde(mm)		Min.area diameter of the base(mm)	Critical thickness of the base(mm)
TIME®2501	convexity 3	concave 10	Ø5	0.3
Working temperature	0~40?
Humidity	20%~90%
Power	AAA 1.5V Battery (2 pcs)
Dimensions (mm)	145×60×28
Weight (g)	132
