Features
- The instrument is controlled by a micro-computer with menu interface, PVC operation panel and large LCD display
- 2 test modes for open force and lock force
- Automatic retaining of peak value and recording the test results precisely
- Standard testing units which is convenient for data reference and comparison
- Intelligent designs of overload protection, automatic zeroing and error alert for safe test operation
- Equipped with RS232 port and micro printer port which is convenient to the data transmission and PC connection
- Supports LystemTM Lab Data Sharing System for uniform and systematic data management
Standards

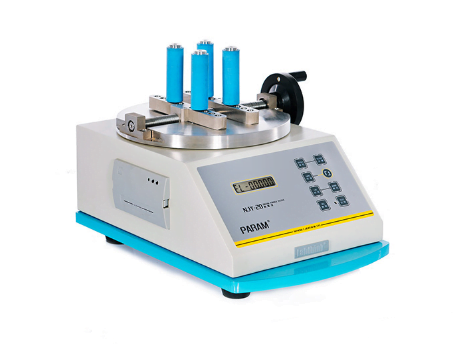

NJY-20 Bottle Cap Torque Tester conforms to various national and international standards:
ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034, GB/T 17876
Applications
| Basic Applications |
|---|
|
|
| Extended Applications |
|
|
Technical Specifications
| Specifications | NJY-20 Bottle Cap Torque Tester |
|---|---|
| Load Cell Capacity | 20 Nm (Standard) |
| 40 Nm (Optional) | |
| 50 Nm (Optional) | |
| Accuracy | 1% FS |
| Resolution | 0.001 Nm |
| Clamp Range | Φ5 mm ~ Φ170 mm (Diameter) |
| Statistical Analysis Allowance | 1 ~ 9 |
| If used with professional software, there will be no quantity limitation. Furthermore multi-units and statistical data analysis will be available. | |
| Instrument Dimension | 350 mm (L) x 240 mm (W) x 140 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 19 kg |
Configurations
- Standard Configurations
- Instrument and Micro Printer
- Optional Parts
- Professional Software and Communication Cable
