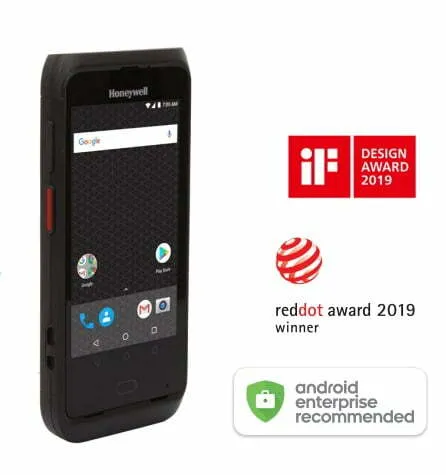

Dolphin CT40 Mobile Computer

Dolphin CT40 Mobile Computer
Dolphin CT40 Mobile Computer - Image 2
Dolphin CT40 Mobile Computer - Image 3
Dolphin CT40 Mobile Computer - Image 4
Dolphin CT40 Mobile Computer - Image 5
Dolphin CT40 Mobile Computer - Image 6
Dolphin CT40 Mobile Computer - Image 7

Memperkenalkan komputer seluler Honeywell CT40. Didesain untuk rekan toko retail dan pekerja yang sangat banyak bergerak lainnya, CT40 yang ringan dan ergonomis ini ramping dan bergaya perangkat sentuh penuh kelas perusahaan yang membantu meningkatkan dan meminimalkan produktivitas pekerja kelelahan. Dilengkapi dengan chipset octa-core berperforma tinggi, Wi-Fi cepat, dan 4G LTE konektivitas, komputer seluler CT40 memberi rekanan akses cepat ke informasi penting bisnis kapan pun mereka membutuhkannya. Perangkat CT40 dibangun dengan kokoh dengan kokoh housing dan layar Corning® Gorilla® Glass 5 untuk melindungi unit dari jatuh dan jatuh. Dibangun di atas platform Mobility Edge ™ Honeywell, komputer seluler CT40 dapat diupgrade di lima generasi Android ™, memberikan TCO keseluruhan yang lebih rendah dan memaksimalkan laba atas investasi pelanggan. Dan itu divalidasi oleh Android Enterprise Recommended, inisiatif yang dipimpin Google yang membantu bisnis dengan percaya diri memilih, menerapkan, dan mengelola Perangkat dan layanan Android paling sesuai dengan kebutuhan perusahaan mereka. Kompatibel dengan berbagai aplikasi yang terhubung dengan Honeywell, pihak ketiga perangkat lunak, dan portofolio lengkap aksesori, komputer seluler CT40 adalah lebih dari sekedar perangkat keras. Ini adalah solusi yang sangat terintegrasi untuk lingkungan mobilitas ritel dan bidang tugas ringan – dari lantai toko dan ruang belakang di dalam ruangan hingga logistik tugas ringan dan pengiriman di luar ruangan.

MECHANICAL

Dimensions: 162 mm x 77 mm x 18.2 mm
(6.4 in x 3.0 in x 0.7 in)
Weight: 289 g (10.1 oz) with battery pack
Display Size: 12.7 cm (5.0 in) TFT
Resolution: High Definition (1280 x 720)
Backlight: LED
Touchscreen: Multi-touch capacitive, Gorilla
Glass 5
Hard Keys: Volume up/down key, left/right scan,
power button
Soft Key: On-screen scan button,
reprogrammable into an application quicklaunch key
Audio: 3.5 mm jack**, PTT, VoIP ready, speaker,
HAC-compliant
I/O Ports: Durable, custom IO connector

ENVIRONMENTAL

Operating Temperature: -20°C to +50°C
(-4°F to +122°F)
Storage Temperature: -30°C to +70°C
(-22°F to +158°F)
Humidity: 5% to 95% (non-condensing)
Drop: Multiple 1.2 m (4 ft) drops to concrete at
-10°C to +50°C (+14°F to +122°F). Multiple drops
from 1.8 m (6 ft) to concrete per MIL-STD-810G
with rubber boot
Tumble: 1,000 times at 0.5 m (1.6 ft)
ESD: ±8 kV direct; ±12 kV air
Environmental Sealing: Independently certified
to meet IP64 standards for moisture and particle
intrusion

SYSTEM ARCHITECTURE

Processor: 2.2 GHz Qualcomm® Snapdragon™
660 octo-core
Memory: 2 GB or 4 GB DDR4 RAM, 32 GB Flash
Operating System: Each Android version
guaranteed from 7.1 to at least 11/R, committed
support for Android 12 and 13 pending feasibility
Default Language: World Wide English
Storage Expansion: User-accessible microSD
card up to 512 GB (SDXC/SDHC/SDIOcompliant)
Battery: Li-Ion, 3.85 V, 4040 mAh; smart battery
with integrated diagnostic tools
Hours of Operation: 12+ hours
Scan Engine: Honeywell N3601, N6603, N6703
Slim Imager (1D/2D barcode symbologies),
Honeywell SDKs for Android
Application Software: Honeywell utilities and
demos
Camera: 13-megapixel color camera with
autofocus
Sensor: Ambient light sensor, proximity sensor,
accelerometer, gyroscope

WARRANTY

One-year factory warranty

WIRELESS CONNECTIVITY

WWAN: WWAN Radio (ATT/VZW/SPRINT/TMO/
NA/EU)
LTE Advanced Support
Up to 400 Mbps CAT13 LTE downlink
Up to 75 Mbps CAT5 LTE uplink
LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 12,
13,17, 19, 20, 25, 26, 28, 29
LTE (TDD) – Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19
GSM/GPRS/EDGE Quad-Band
(850/900/1800/1900 MHz)
1xRTT/EV-DO – Bands BC0, BC1, BC10
(B26BW)
WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi certified
Additional WLAN Features: 802.11 d/e/h/i/k/
r/u/w
WLAN Security: OPEN, WEP, WPA/WPA2
(Personal and Enterprise)
Supported EAP: TLS, PEAP, TTLS, PWD, FAST,
LEAP CCX Version 4 certified
Bluetooth®: V5.0 Bluetooth and BLE Supported
Bluetooth Profiles: HFP, PBAP, A2DP, AVRCP,
OPP, SPP, GATT
NFC: Integrated Near Field Communication
VPN: IPSec V4/L2TP, PPTP
Push to Talk (PTT): Supported
GPS Supported Protocols: Simultaneous GNSS
Receiver Support for GPS, GLONASS, Galileo,
and Beidou

Features

  • The Mobility Edge enterprise management tools allow companies to test and validate applications once, accelerate deployments across the enterprise, optimize device performance, simplify maintenance, and extend product lifecycle.
  • Future-proof investment protection with support for five Android generations, starting with Android 7.1 (N). Security updates available for up to five years past the last Google patch through Honeywell Sentinel.
  • Easy compatibility and seamless integration with both Honeywell Connected applications as well as third-party applications such as MDM, Push to Talk, and VoIP software to maximize efficiency and protect your investment.
  • The rugged, sleek CT40 device is ergonomic, lightweight, and simple to use, fitting easily in the hand and able to be used comfortably and productively all day long.
  • Three scan imager options offered for enhanced data capture speed and reading range, even outdoors; choose user-friendly green LED dot or sharp red frame laser aimer.
