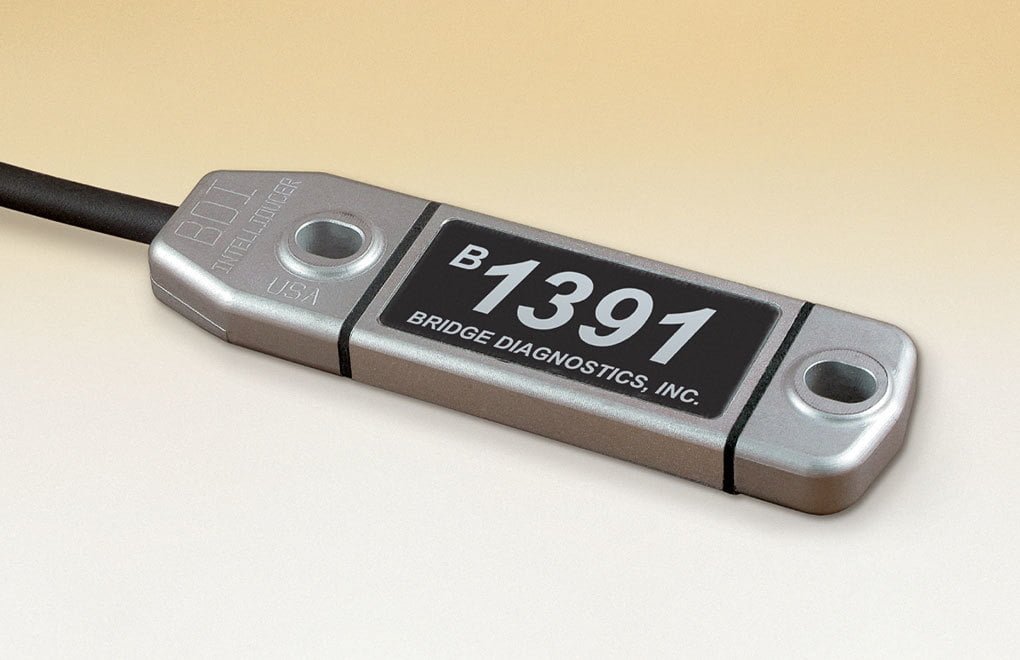

Dynamic Strain Transducers (Electrical Resistance) Model ST-350

Strain Range: ±4000 µε (Calibrated to ±2000 µε)

Effective Gauge Length: 76.2 mm

Accuracy: ±2%, individually calibrated to NIST standards

Sensitivity: 500 µε/mV/V (approximately)

Circuit: Full Wheatstone Bridge with 4 active 350 ohm foil gauges, 4-wire hookup

Temperature Range: −50°C to +120°C

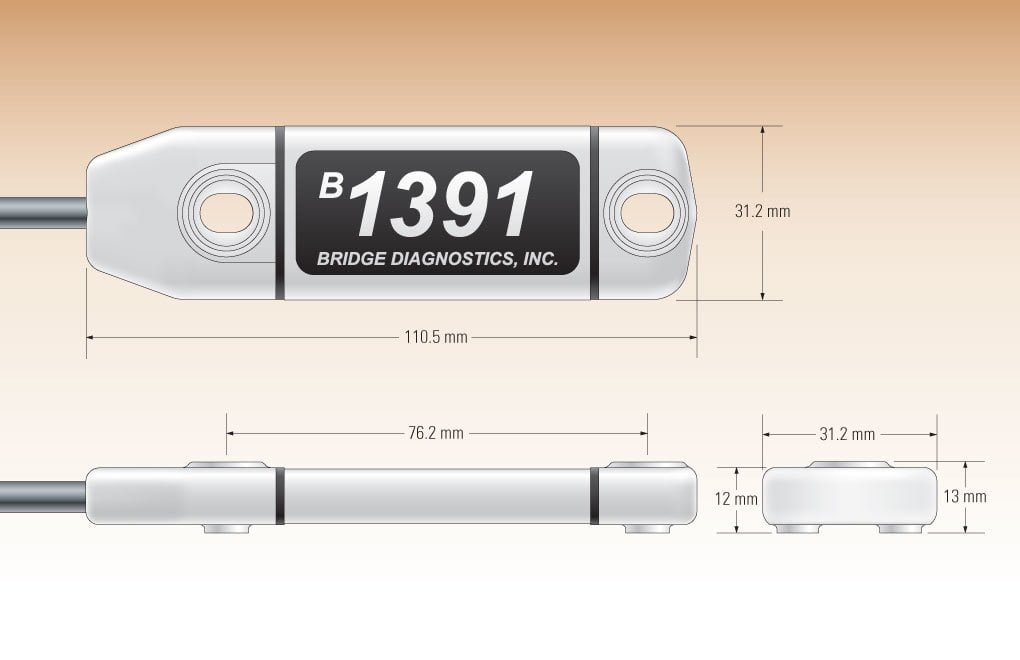

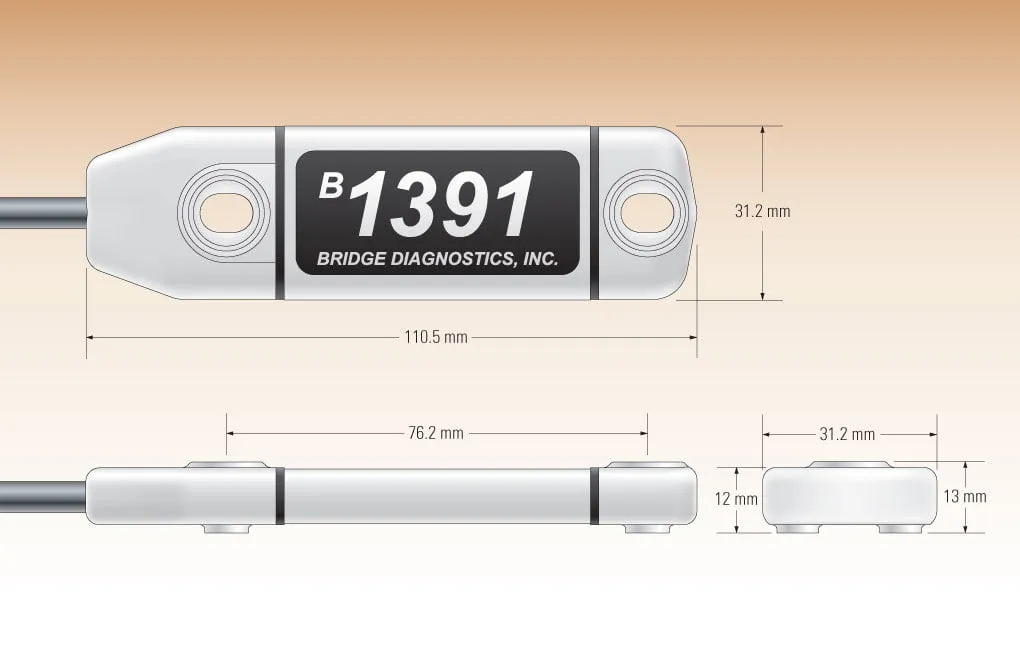

Overall Size: 110.5×31.2×13 mm
