Area Pengaruh Kecil

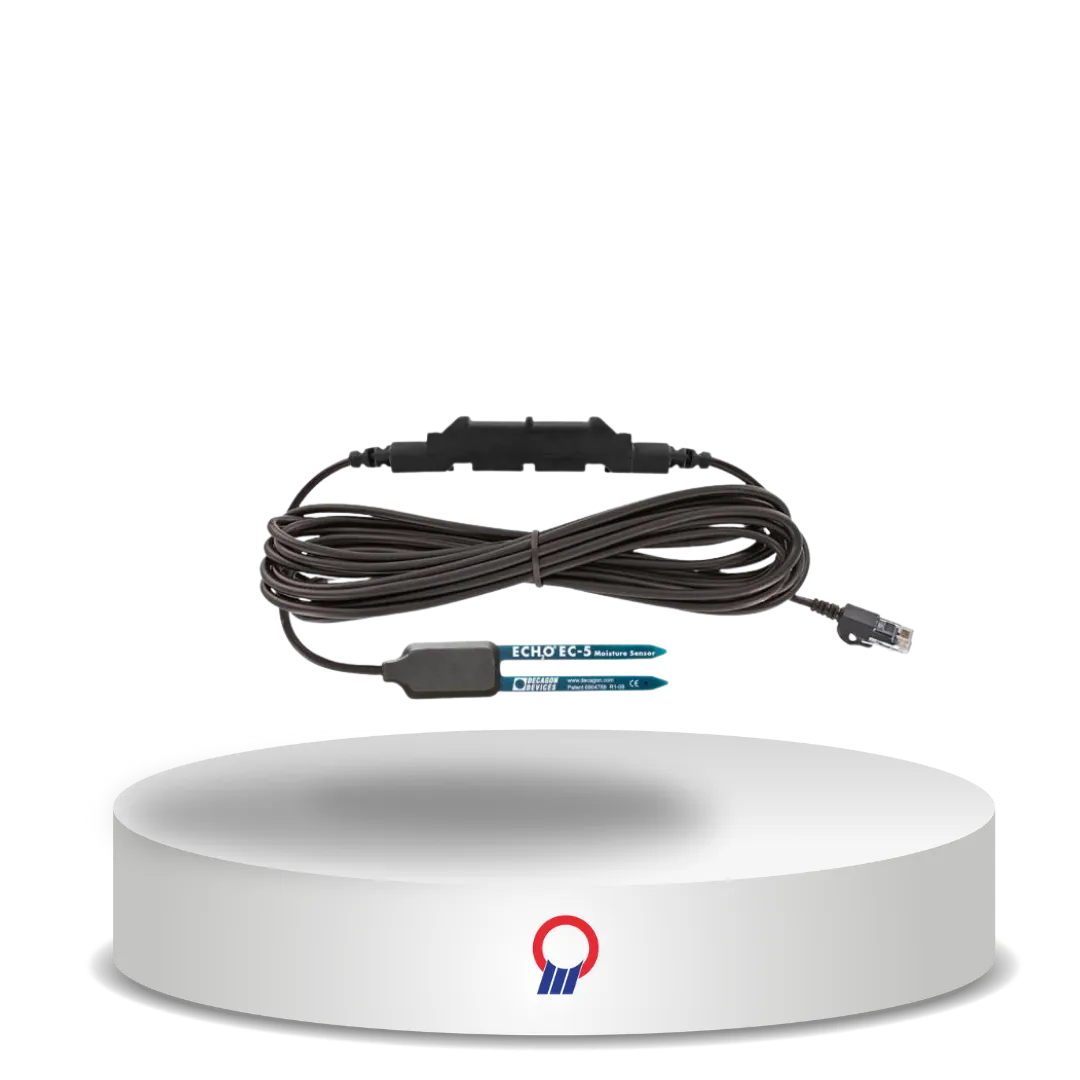

Sensor kelembapan tanah ekonomis dengan desain dua jarum untuk pemasangan mudah, mengintegrasikan sensor ECH2O™ EC-5 yang telah teruji serta A/D 12-bit untuk pengukuran akurat.
| Measurement Range | In soil: 0 to 0.550 (m³/m³) Extended range: -0.401 to 2.574 m³/m³ (full scale)The sensor is capable of providing readings outside the standard volumetric water content range. This is helpful in diagnosing sensor operation and installation. See User Manual for additional information. |
| Accuracy | ±0.031 m³/m³ (±3.1%) typical 0 to 50°C (32° to 122°F); ±0.020 m³/m³ (±2%) with soil specific calibration.
This is a system-level accuracy specification and is comprised of the ECH2O probe’s accuracy of ±0.03 m³/m³ typical (±0.02 m³/m³ soil specific) plus the smart sensor adapter accuracy of ±0.001 m³/m³ at 25°C (77°F). There are additional temperature accuracy deviations of ±0.003 m³/m³ / °C maximum for the ECH2O probe across operating temperature environment, typical <0.001 m³/m³ / °C. (The temperature dependence of the smart sensor adapter is negligible.) |
| Resolution | 0.0007 m³/m³ (0.07%) |
| Soil Probe Dimensions | 89 x 15 x 1.5 mm (3.5 x 0.62 x 0.06 in.) |
| Weight | 180 grams (6.3 oz) |
| Decagon ECH2O Probe Part No. | EC-5 |
| Sensor Operating Temperature | 0° to 50°C (32° to 122°F).
While the sensor probe and cable can safely operate at below-freezing temperatures (to -40°C/F) and up to 75°C (167°F), the soil moisture data collected at these extreme temperatures is outside of the sensor’s accurate measurement range. |
| Volume of Influence | 0.3 liter (10.1 oz) |
| Sensor Frequency | 70 MHz |
| Bits per Sample | 12 |
| Number of Data Channels | 1 |
| Note | A single smart sensor-compatible HOBO logger can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables) |
| Measurement Averaging Option | No |
| Cable Length Available | 5 m (16 ft) |
| Length of Smart Sensor Network Cable | 0.5 m (1.6 ft) |
