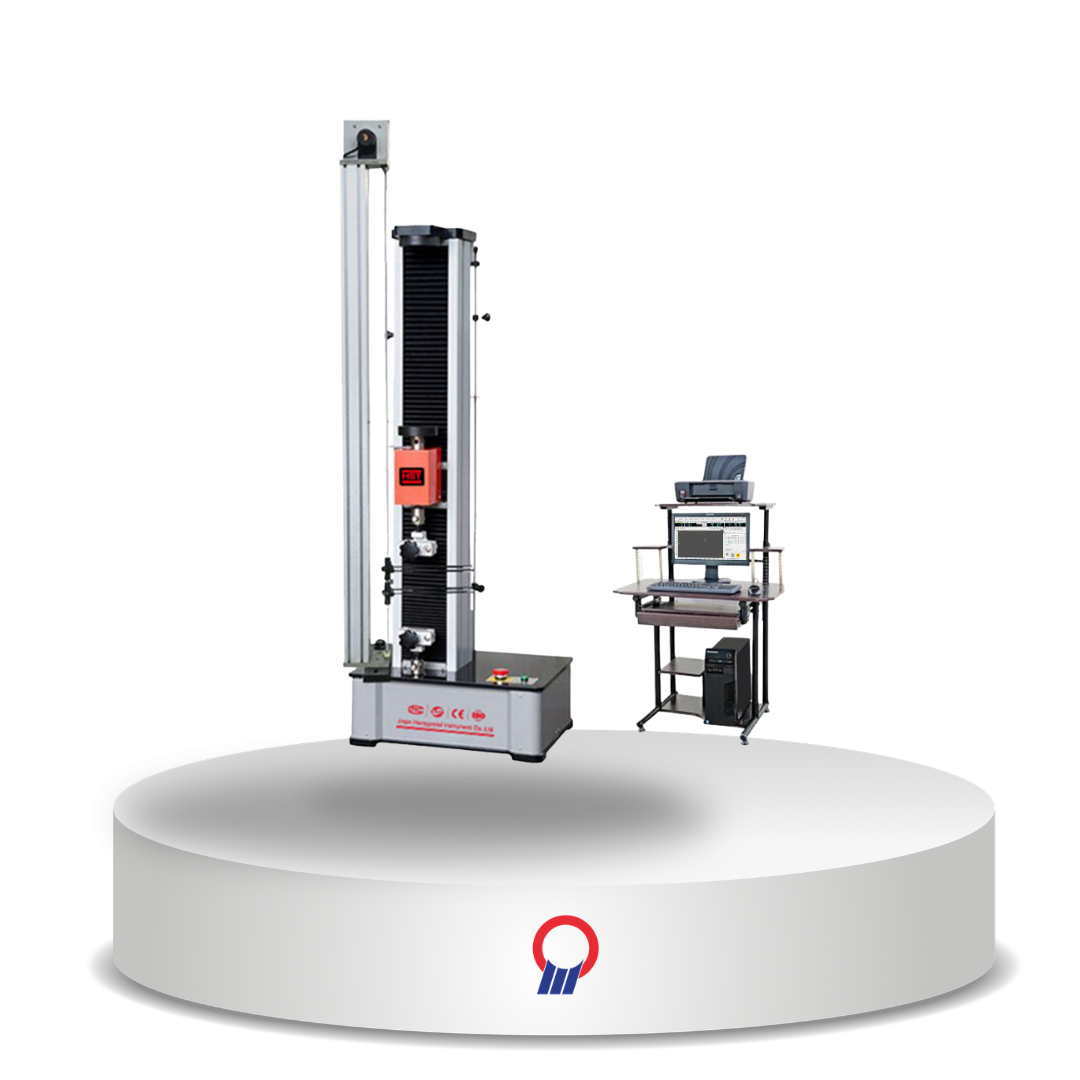

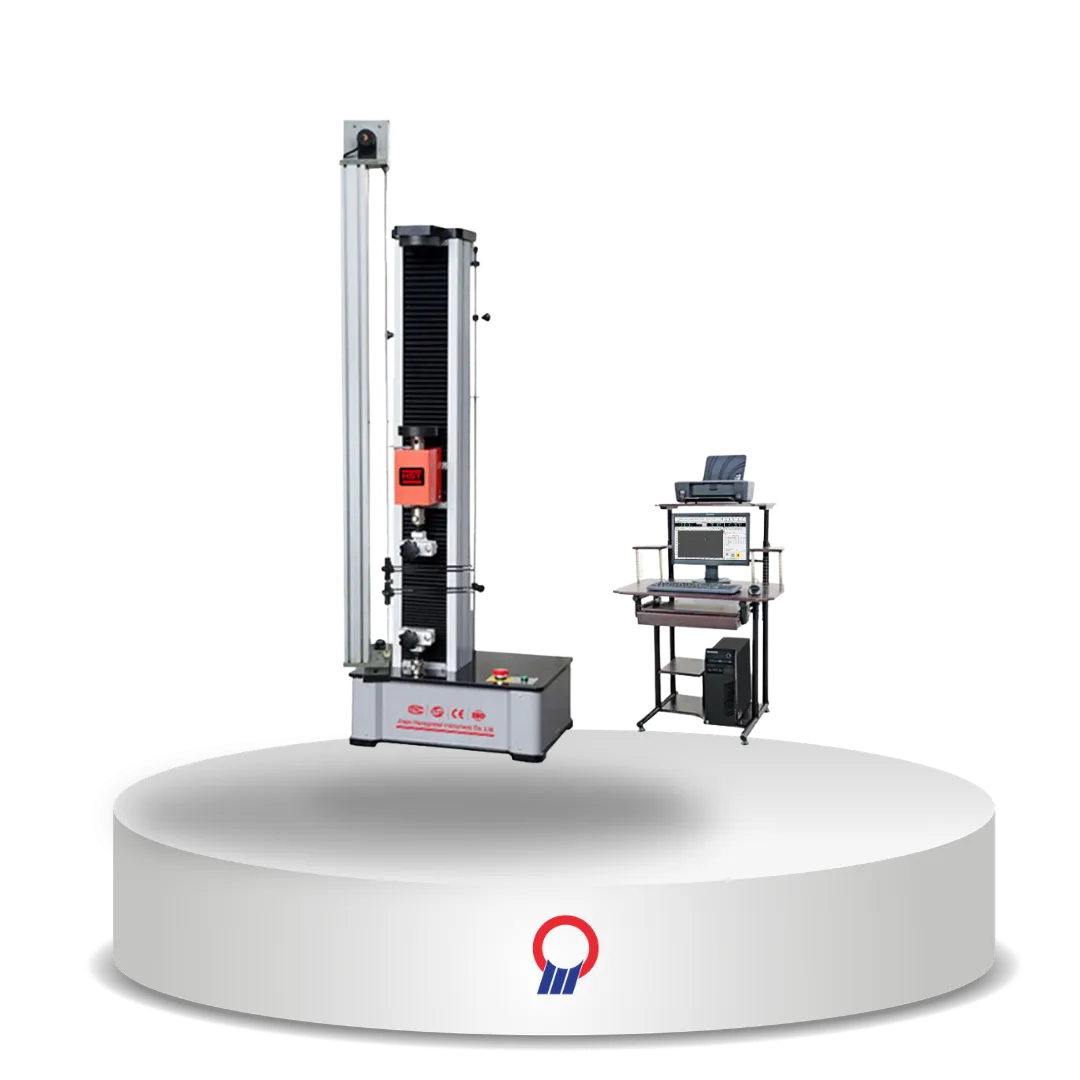

Fabric Tensile Strength Tester dapat digunakan untuk berbagai jenis pengujian material seperti tarik, tekan, lentur, geser, dan uji siklus rendah. Alat ini cocok untuk pengujian logam, karet, plastik, pegas, tekstil, serta berbagai komponen material. Peralatan ini banyak digunakan di berbagai bidang seperti industri, penelitian dan pengembangan (R&D), lembaga pengujian, serta pusat pendidikan dan pelatihan.
| Model | WDW-01, 02, 03, 05, 1, 2, 3, 5 |
| Structure | Single column double spaces |
| Max. Load (kN) | 0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5 |
| Material | All aluminum alloy surface spray painting shell |
| Load Accuracy | Class 0.5 |
| Load Range | 0.2% – 100% F·S |
| Load Resolution | 1 / 500000 |
| Resolution of Displacement | 0.01 mm |
| Test Speed (mm/min) | 0.05 – 500 (stepless arbitrary setting) |
| Speed Accuracy | Within ±1% set speed |
| E – Tensile Space (mm) | 600 (can be customized) |
| E – Compression Space (mm) | 600 (can be customized) |
| D – Test Width (mm) | 100 |
| F – Beam Travel Distance (mm) | 772 |
| Power Supply | AC220V ±10%, 50Hz / 60Hz (can be customized) |
