Ferrous and Non-ferrous Coating Thickness Gauge TIME®2510

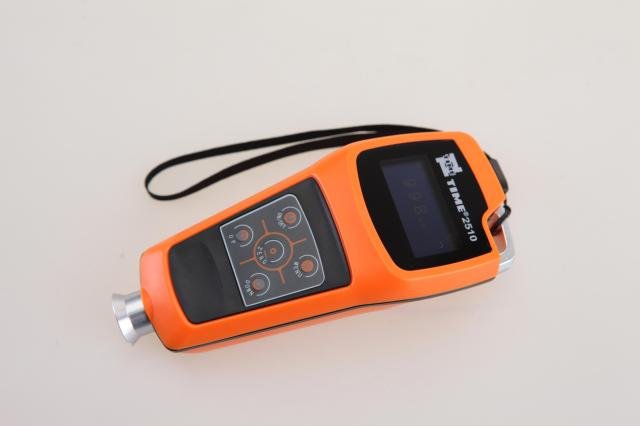

Ferrous and Non-ferrous Coating Thickness Gauge TIME®2510 - Image 3

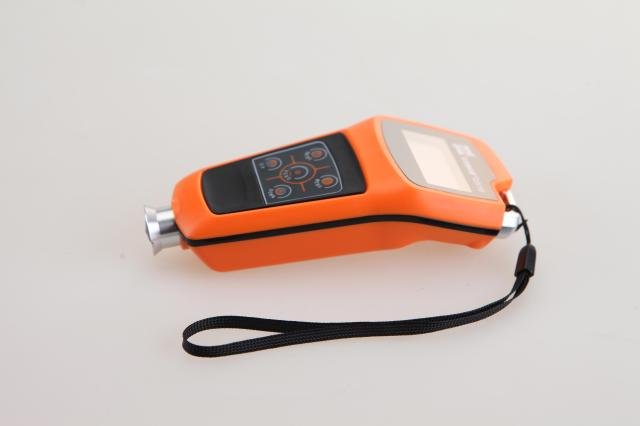

Ferrous and Non-ferrous Coating Thickness Gauge TIME®2510 - Image 4

Digital Coating Thickness Gauge TIME®2510 adopts two thickness-measuring methods: magnetic induction (ferrous) and eddy current (non-ferrous). It can rapidly, nondestructively, and precisely measure the thickness of non-magnetic coating on magnetic metal substrate, and the thickness of non-conductive coating on non-magnetic metal substrate. It automatically detects the type of metal to be measured. TIME2510 thickness gauge is ideal for painted surface testing, car paint inspection, coated material testing and quality control applications.

Features

Two principle of operation are adapted: magnetic induction (ferrous) and eddy current (nonferrous) to take non-destructive measurements
Zero point calibration and two-point calibration to correct the system error of the probe
Features two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE
Statistics include the mean, maximum, minimum, test numbers and standard deviation.
Automatic recognition of substrate.
Memory of 500 data
Deletion of current data, calibrated data, limit data and all data stored.
Integrated with printer to print the statists values if needed
Low battery indication and error alarm
Buzz during operation for indication
Backlight for the screen
Auto or manual shutdown

Technical Specifications

Probe types		F	N
Working principle		Magnetic induction	Eddy current
Measuring range		0-1250 μm	0-1250 μm, 0-40μm (for chrome plate on copper)
Minimum resolution		0.1μm
Tolerance	Zero point calibration	±(3%H+1) μm	±(3%H+1.5) μm
		H means the thickness of tested piece ?
	Two points calibration	±{(1-3)%H+1}μm	±{(1-3)%H+1.5}μm
		H means the thickness of tested piece ?
Measuring condition	Min. curvature radius	Convexity 1.5 mm	Convexity 3 mm
	Min. area diameter	Φ7 mm	Φ5 mm
	Critical thickness of the base	0.5 mm	0.3 mm
Operating environment		Temperature: 0?- 40?
		Humidity: 20%-90%
		No strong magnetic field
Power		2 pcs AAA 1.5 V battery
Dimension		110 x 50 x 23 (mm)
Weight		100 g

Standard Delivery		Optional Accessory
Main unit	1	Printer TA230
Substrate	2	Connecting cable
Calibration foil	1	Dataview
AAA 1.5V battery	2
TIME certificate	1
Warranty card	1
Instruction manual	1
