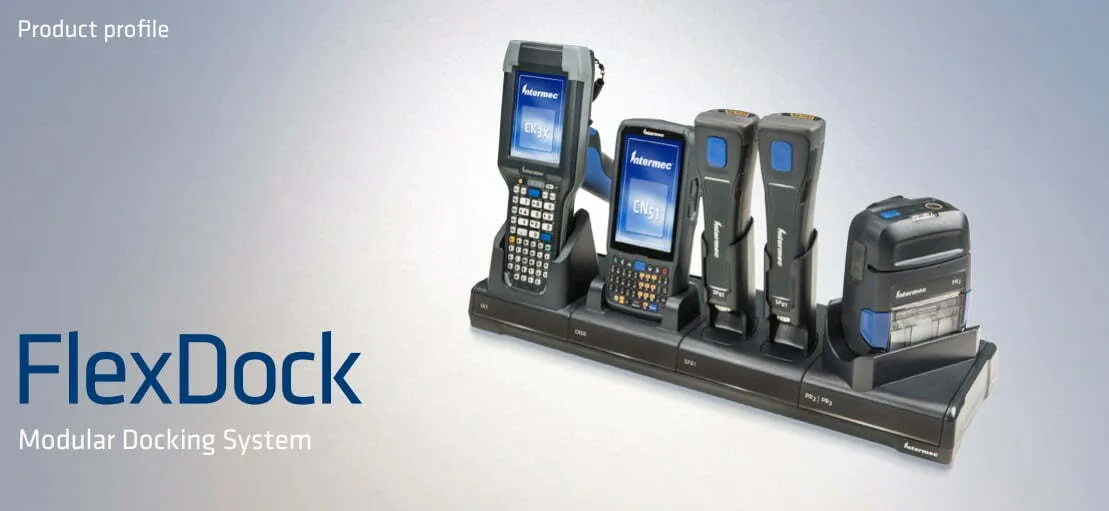

Physical Characteristics
Dimensions (L x W x H) & Weight
(Base heights vary slightly based on type of cup used)
Desktop Base: 23.1 x 12.7 x 4 cm (9.10 x 5.0 x 1.58 in);
541.5g (19.1 oz)
Dual Base: 23.1 x 12.7 x 4 cm (9.10 x 5.0 x 1.58 in); 553 g
(18.8 oz) or 654.9 g (23.1 oz) with Ethernet
Quad Base: 44.45 x 12.7 x 4 cm (17.5 x 5.0 x 1.58 in)
Power Supply (Dual/Desktop Base): 13 x 7.6 x 3.3 cm
(5.1 x 3.0 x 1.3 in); 272.2 g (9.6 oz)
Power Supply (Quad Base): 18 x 5.8 x 3.9 cm (7.09 x
2.27 x 1.52 in); 688.9 g (24.3 oz)
Cups: 10.6 x 12.5 cm (4.18 x 4.94 in); Cup height varies
from 4.8 to 10.2 cm (1.9 to 4.0 in); Cup weight varies
from 90.7 to 124.8 g (3.2 to 4.4 oz)
Supported Mobile Computers
CK3, CK70, CK71, CN3, CN3e, CN4, CN4e, CN50, CN51,
CN70, CN70e, CS40
Supported Mobile Printers
PR2, PR3
Supported Handheld Scanners
SF61B
Cups
Mobile Computer: Accommodates one mobile
computer; provide charging and data communication
connectivity; front-mounted Ethernet connectivity
indicator (where applicable)
Handheld Scanner: Accommodates one handheld
scanner; provides charging with status via indicators
on scanner.
Mobile Printer: Accommodates one mobile printer;
provides charging with status via indicators on printer.
Battery Pack: Accommodates up to two battery packs
per cup; provides charging; front-mounted charge
status indicator for each pack.
Data Communications
Quad & Dual Base: Optional Ethernet 100Base-T; RJ45
Uplink and Downlink ports
Desktop Base: USB 2.0 Full Speed, Standard USB-A
Host port, Micro USB-B Client port
Desktop Base accepts optional Ethernet 100Base-T or
56 Kbps Analog Modem modules via USB Host port
Battery Charging Time
Typically less than 4 hours; maximum 6 hours for fully
discharged packs
Mounting Options
Rack Mounting Kit: Shelf for mounting one Quad Base
or one Dual Base with Power Supply Shelf underneath.
Options for mounting horizontal; adapters for 15
degree upward or downward angle mounting.
Regulatory Approvals and Compliance
Docks: 1002UU01, 1002UU02, 1002UU03, 1002UU04,
1002UU05
Cups: 1002UD01, 1002UD02, 1002UD03, 1002UD04,
1002UD05, 1002UD06, 1002UC01, 1002UC02, 1002UC05
Power Supplies: 9004AE01, 9006AE01
Safety: cULus Listed (pending), DEMKO (pending)
EMC: Class B – FCC/ICES/EN (Desktop Base and Dual
Base configurations)
Class A – FCC/IC/EN (Dual Base, Quad Base Ethernet
and Quad Base Charge-only configurations)
Environmental: EU Directives – WEEE, RoHS,
Packaging& Waste Packaging
Features
- A modular and extensible design, with replaceable cups, allows for field configuration or reconfiguration of the FlexDock base to match changing needs
- Engineered for large scale deployments, a small footprint allows for high density docking and charging utilizing standard 19” IT racking solutions
- Reduces installation costs and simplifies wiring with 100Base-T Ethernet daisy chaining capability (up to 10)
- A future-proof design delivers docking system infrastructure investment protection, so upgrading to next generation devices only requires the purchase of the devices and battery cups—the docking system infrastructure can be reused
