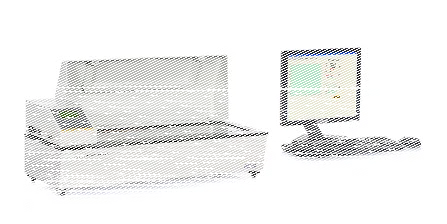

Friction/ Peel Tester FPT-F1 Labthink

Menguji koefisien gesekan statis dan kinetik film plastik, lembaran, foil, kertas, kardus, tas anyaman, kain (uji gaya kain), strip / sabuk komposit logam-plastik untuk kabel komunikasi, ban dan tekstil, serta uji kekuatan kulit dari produk laminasi perekat, perban perekat medis, kertas pelepas dan film perlindungan. Alat Uji Gesekan / Kupas, Distributor Friction /FPT-F1 Friction/ Peel Tester Labthink, Alat Pengujian Gesek

Features

2 testing modes are available in this instrument including coefficient of friction test and 180° peel test
7 test speeds and 3 test ranges could be selected as required
This instrument conforms to multiple standards of ISO, ASTM and GB and the user could select testing methods as required
Wide range and high-precision of automatic temperature control system to support tests at different temperatures
This instrument is controlled by computer and micro processing unit which is convenient for user’s operation
The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
Professional operating software supports superposition analysis of test curves
Equipped with USB ports which is convenient to the data transmission and PC connection

Standards

This instrument conforms to various national and international standards:

Friction testing with Automatic Temperature Control System: Conforms to ISO 8295, ASTM D1894, ASTM D4917, TAPPI T816, TAPPI T549, GB 10006

Peel strength testing: Conforms to ISO 8510-2, ASTM D3330, GB/T 2790, GB/T 2791, GB/T 2792

Applications

Basic Applications
Plastic Films and Sheets Coefficient of static and dynamic friction tests of plastic films and sheets
Paper and Paperboard Coefficient of static and dynamic friction tests of paper and paperboard
Textiles, Non-woven Fabrics and Woven Bags Coefficient of static and dynamic friction tests of textiles, non-woven fabrics and woven bags
Rubber Coefficient of static and dynamic friction tests of rubber products
Aluminum Foils and Aluminum Foil Composite Films Coefficient of static and dynamic friction tests of aluminum foils, aluminum foil composite films and other metal products
Printing Matters Coefficient of static and dynamic friction tests of printing matters
Extended Applications
High Temperature Test Coefficient of static and dynamic friction tests at higher temperature than room temperature
Wood and Flooring Coefficient of static and dynamic friction tests of wood and flooring
Photographic Films Coefficient of static and dynamic friction tests of photographic films
Screen of Mobile Phone and Leather Coefficient of static and dynamic friction tests of mobile screens against the leather products
Adhesives Peeling test of the adhesive products
Medical Adhesives Peeling test of medical adhesives e.g. adhesive bandages and plasters
Protection Films Peeling test of protection films for mobile phones or computers
Magnetic Cards Peeling test of the films and magnetic cards

Technical Specifications

Specifications	FPT-F1 Friction / Peel Tester
Capacity Range	0 ~ 5 N, 0 ~ 10 N, 0 ~ 30 N
Accuracy	0.5% FS
Mass of Sled	200 g, 500 g (Standard)
Mass of Sled	100 g, 1000 g, 1814 g, 2000 g are optional
Test Speed	50, 100, 150, 200, 250, 300, 500 mm/min
Temperature	Room Temperature ~ 99.9°C
Power Supply	220VAC 50Hz / 120VAC 60Hz
Instrument Dimension	850 mm (L) x 350 mm (W) x 290 mm (H)
Net Weight	30 kg

Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: The described product features, test standards and configurations should be in line with Technical Specifications.

Configurations

Standard Configurations: Instrument, Peeling Grips, Sled of 200g, Sled of 500g, Professional Software, USB Communication Cable

Optional Parts: Test Plate, Sample Cutter, Customized Sled, Customized Sample Grips and Load Cell (Different Ranges)
