Komunikasi Nirkabel Bluetooth

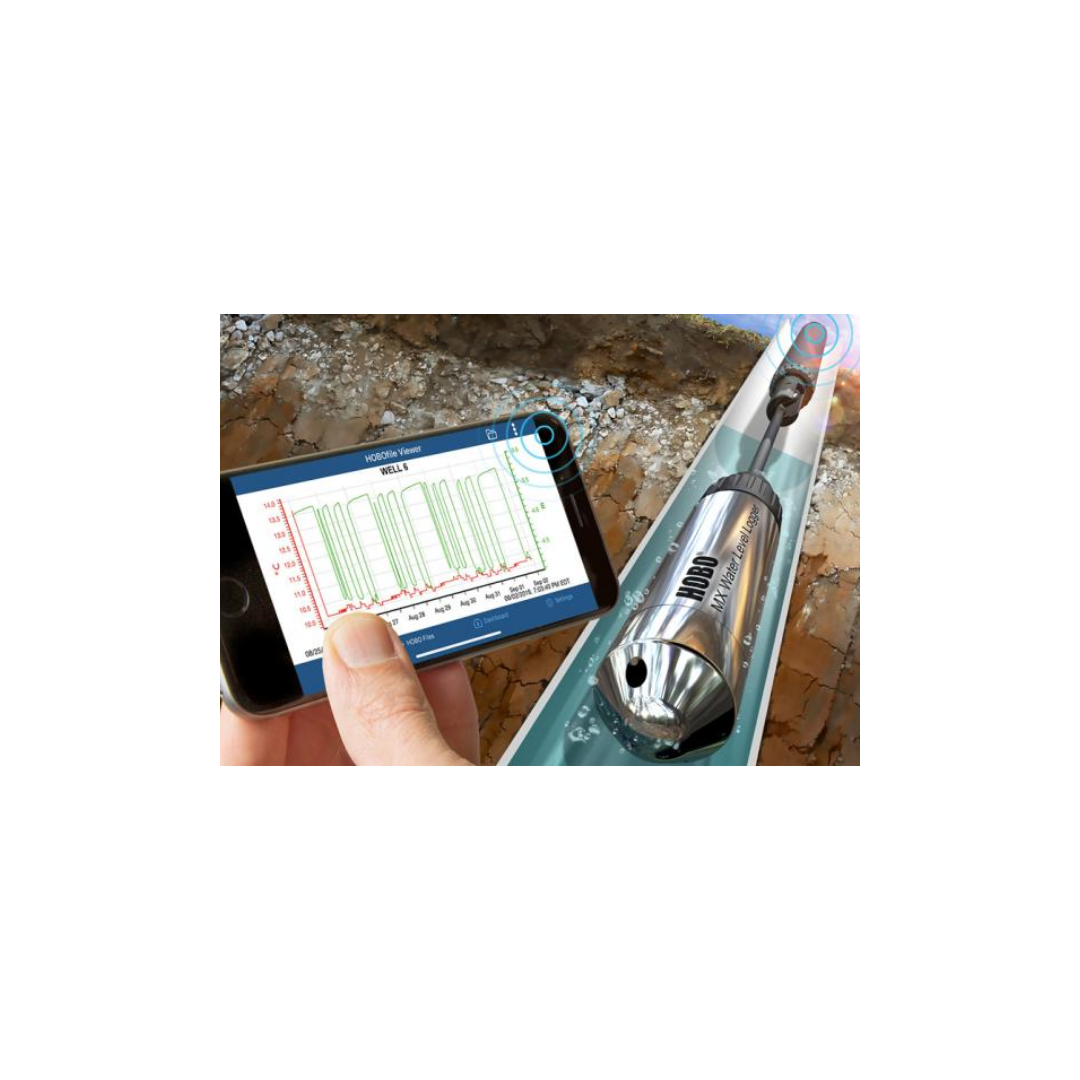

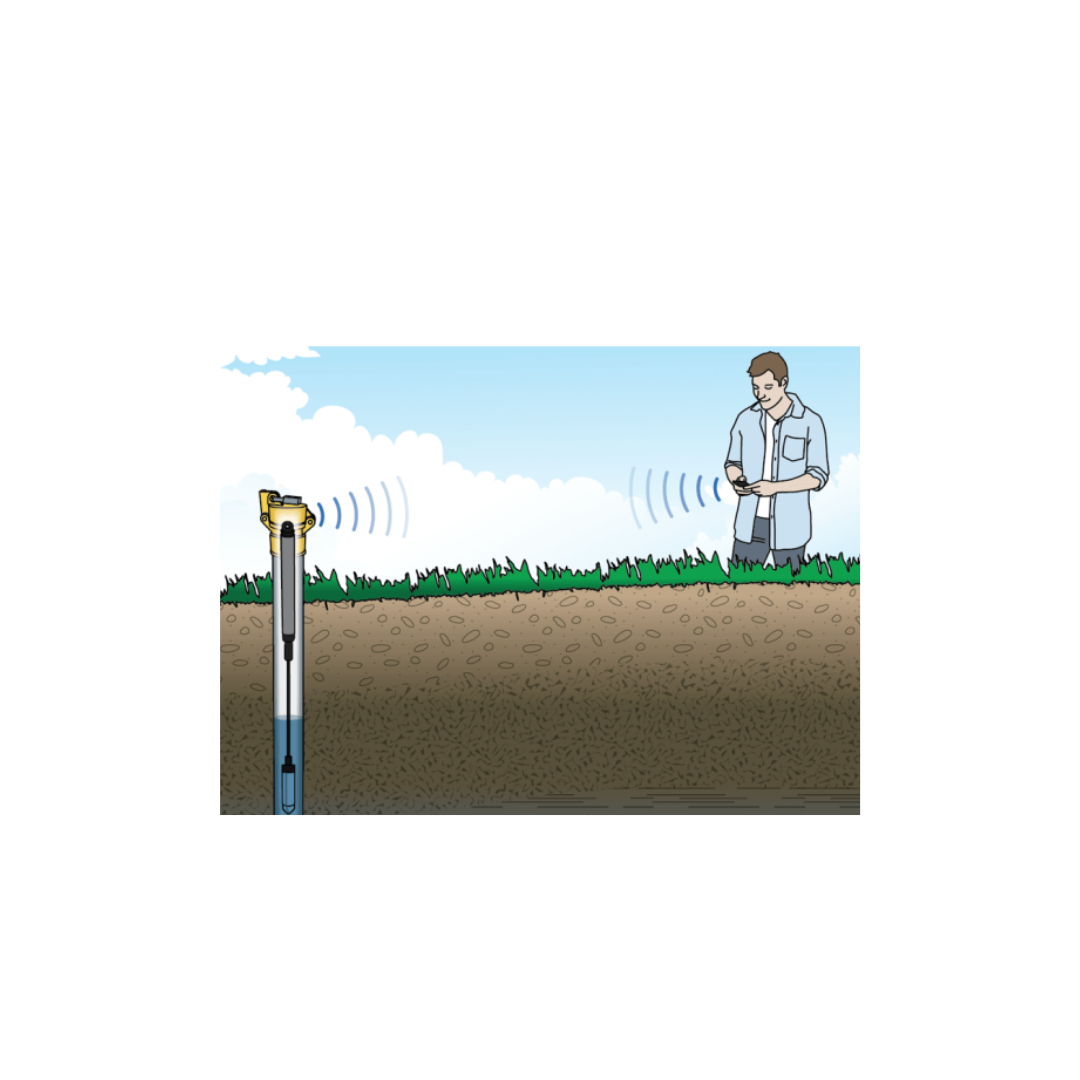

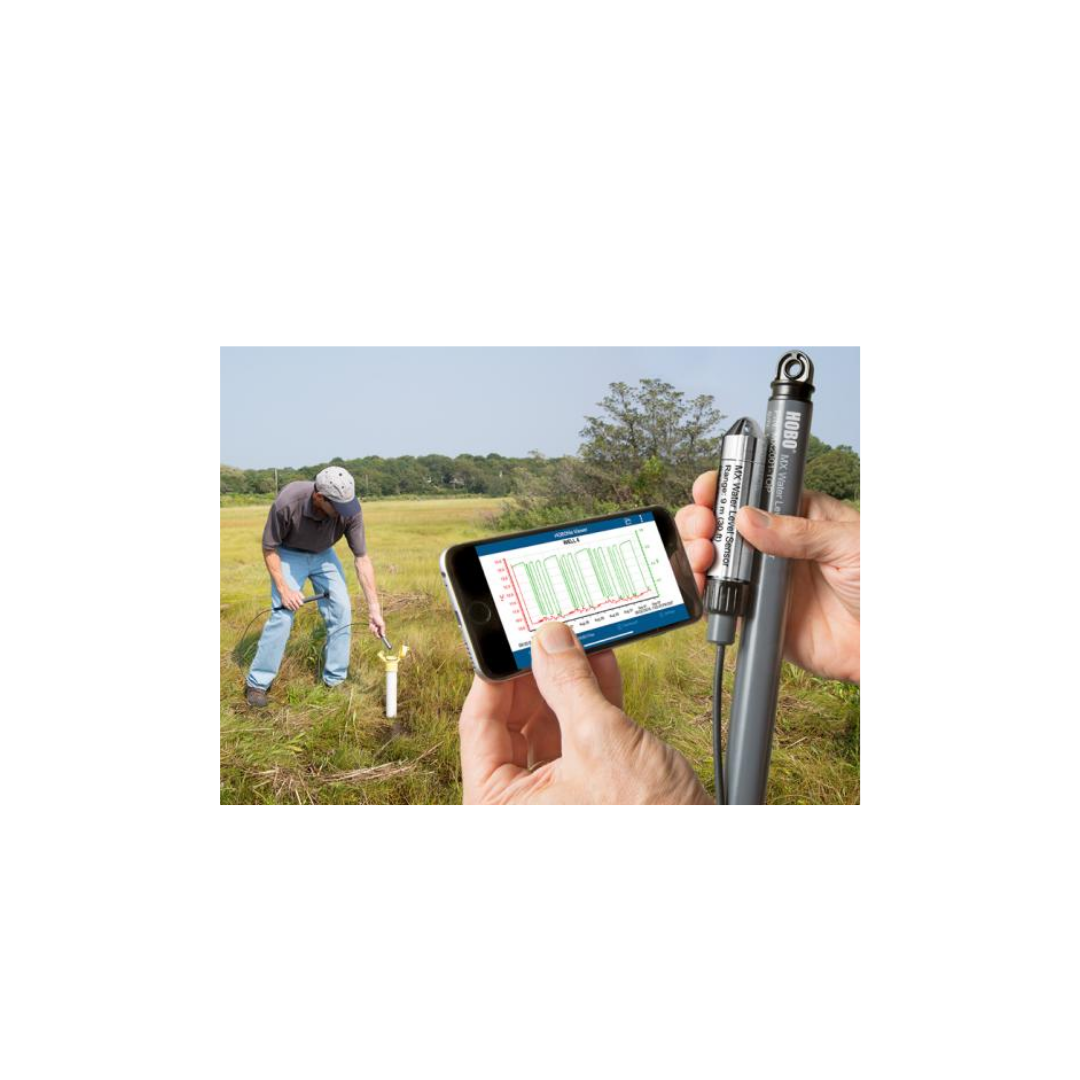

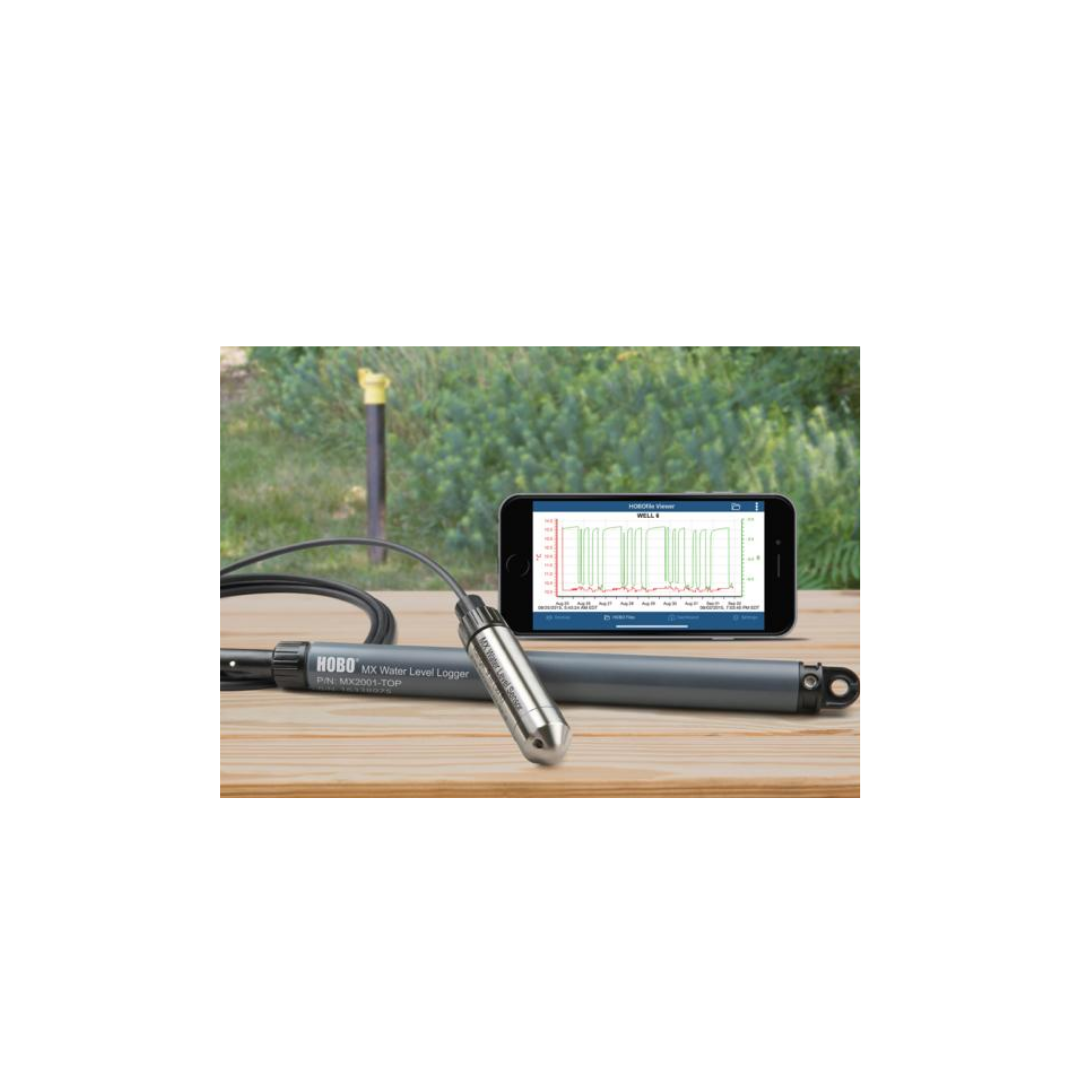

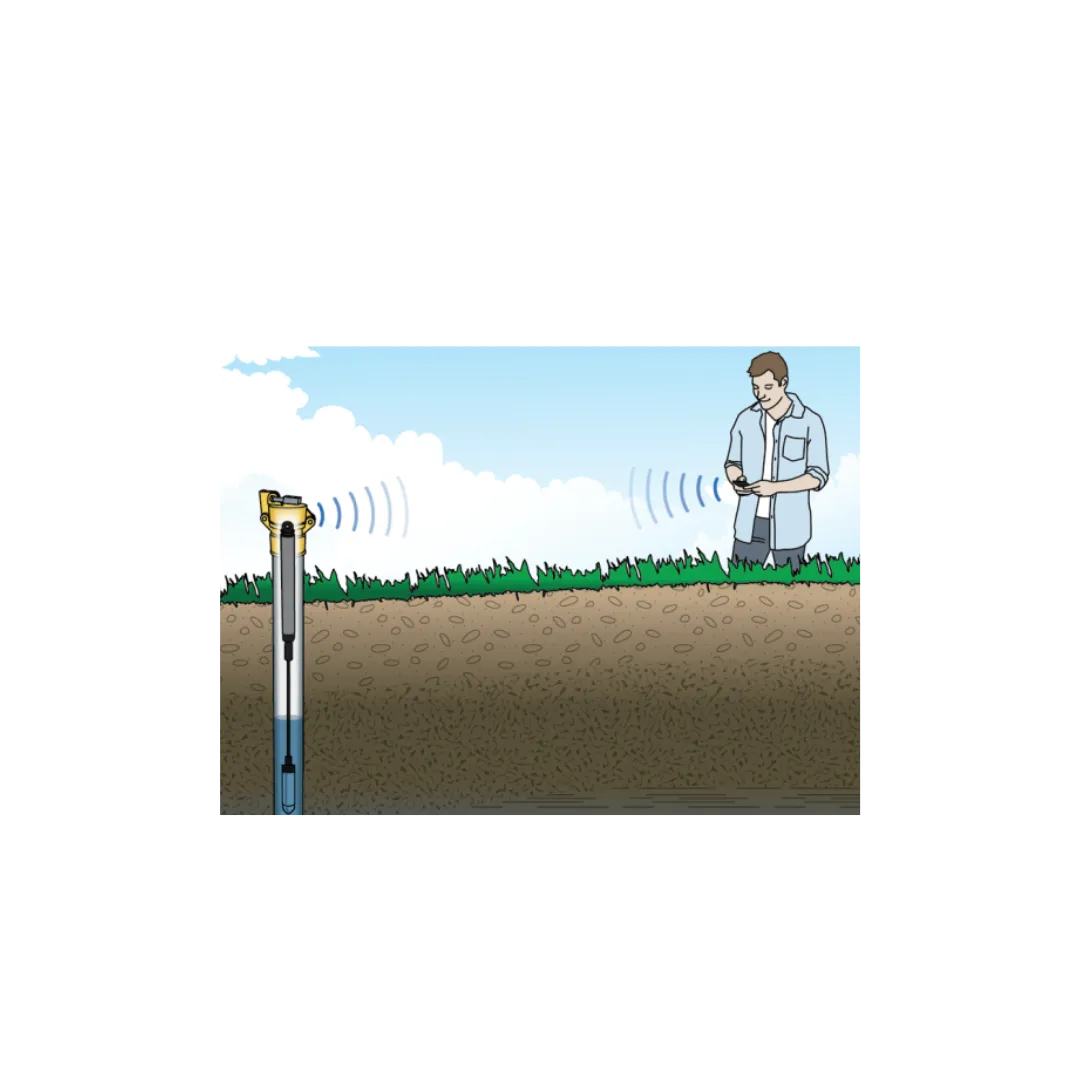

Data logger ketinggian air pertama di industri yang dirancang untuk konfigurasi dan pengunduhan data secara nirkabel melalui perangkat seluler atau laptop Windows menggunakan teknologi Bluetooth.
| Operation Range | 0 to 207 kPa; approximately 0 to 9 m of water depth at sea level, or 0 to 12 m of water at 3,000 m of altitude 0 to 30 psia; approximately 0 to 30 ft of water depth at sea level, or 0 to 40 ft of water at 10,000 ft of altitude |
| Factory Calibrated Range | 69 to 207 kPa, 0° to 40°C 10 to 30 psia, 32° to 104°F |
| Burst Pressure | 310 kPa or 18 m depth 45 psia or 60 ft depth |
| Water Level Accuracy* | Typical error: ±0.05% FS, 0.5 cm water Typical error: ±0.05% FS, 0.015 ft waterMaximum error: ±0.1% FS, 1.0 cm water Maximum error: ±0.1% FS, 0.03 ft water |
| Raw Pressure Accuracy** | ±0.3% FS, 0.62 kPa maximum error ±0.3% FS, 0.09 psi maximum error |
| Resolution | <0.02 kPa, 0.21 cm water <0.003 psi, 0.007 ft water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Operation Range | 0 to 400 kPa; 0 to 58 psia;approximately 0 to 30.6 m of water depth at sea level, or 0 to 33.6 m of water at 3,000 m of altitude approximately 0 to 100 ft of water depth at sea level, or 0 to 111 ft of water at 10,000 ft of altitude |
| Factory Calibrated Range | 69 to 400 kPa, 0° to 40°C 10 to 58 psia, 32° to 104°F |
| Burst Pressure | 500 kPa or 40.8 m depth 72.5 psia or 134 ft depth |
| Water Level Accuracy* | Typical error: ±0.05% FS, 1.5 cm water Typical error: ±0.05% FS, 0.05 ft waterMaximum error: ±0.1% FS, 3.0 cm water Maximum error: ±0.1% FS, 0.1 ft water |
| Raw Pressure Accuracy** | ±0.3% FS, 1.20 kPa maximum error ±0.3% FS, 0.17 psi maximum error |
| Resolution | <0.04 kPa, 0.41 cm water <0.006 psi, 0.013 ft water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Operation Range | 0 to 850 kPa; approximately 0 to 76.5 m of water depth at sea level, or 0 to 79.5 m of water at 3,000 m of altitude 0 to 123.3 psia; approximately 0 to 251 ft of water depth at sea level, or 0 to 262 ft of water at 10,000 ft of altitude |
| Factory Calibrated Range | 69 to 850 kPa, 0° to 40°C 10 to 123.3 psia, 32° to 104°F |
| Burst Pressure | 1,200 kPa or 112 m depth 174 psia or 368 ft depth |
| Water Level Accuracy* | Typical error: ±0.05% FS, 3.8 cm water Typical error: ±0.05% FS, 0.125 ft waterMaximum error: ±0.1% FS, 7.6 cm water Maximum error: ±0.1% FS, 0.25 ft water |
| Raw Pressure Accuracy** | ±0.3% FS, 2.55 kPa maximum error ±0.3% FS, 0.37 psi maximum error |
| Resolution | <0.085 kPa, 0.87 cm water <0.012 psi, 0.028 ft water |
| Pressure Response Time (90%)*** | <1 second at a stable temperature |
| Operation Range | 66 to 107 kPa 9.57 to 15.52 psia |
| Temperature Calibrated Range | -20 to 50°C -4 to 122°F |
| Accuracy | ±0.2 kPa over full temperature range at fixed pressure; maximum error ±0.5% FS ±0.029 psi over full temperature range at fixed pressure; maximum error ±0.5% FS |
| Water Level Accuracy* | Typical error: ±0.075% FS, 0.3 cm water Typical error: ±0.075% FS, 0.01 ft waterMaximum error: ±0.15% FS, 0.6 cm water Maximum error: ±0.15% FS, 0.02 ft water |
| Resolution | <0.01 kPa <0.0015 psi |
| Response Time | <1 second at stable temperature |
| Stability (Drift) | <0.01 kPa per year <0.0015 psi per year |
| Operation Range | -20° to 50°C -4° to 122°F |
| Accuracy | ±0.44°C from 0° to 50°C, see manual for plot ±0.79°F from 32° to 122°F, see manual for plot |
| Resolution | 0.1°C at 25°C, see manual for plot 0.18°F at 77°F, see manual for plot |
| Response Time (90%) | 5 minutes in water (typical) |
| Stability (Drift) | 0.1°C per year 0.18°F per year |
| Operating Range | -20° to 50°C -4° to 122°F |
| Radio Power | 1 mW 0 dBm |
| Transmission Range | Approximately 30.5 m line-of-sight Approximately 100 ft line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart®) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval, multiple intervals with up to 8 user-defined logging intervals and durations, or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, date & time, or next interval |
| Stop Modes | When memory full, date & time, or after a set logging period |
| Time Accuracy | ±1 minute per month 0° to 50°C ±1 minute per month 32° to 122°F |
| Battery | Two AA, 1.5 V alkaline batteries, user replaceable |
| Battery Life | 1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, excessive readouts, checking of Full Status Details, and remaining connected with the app will impact battery life. |
| Memory | 256 KB memory (30,000 sets of measurements) |
| Full Memory Download Time | Approximately 2 minutes; may take longer the further the device is from the top end of the logger |

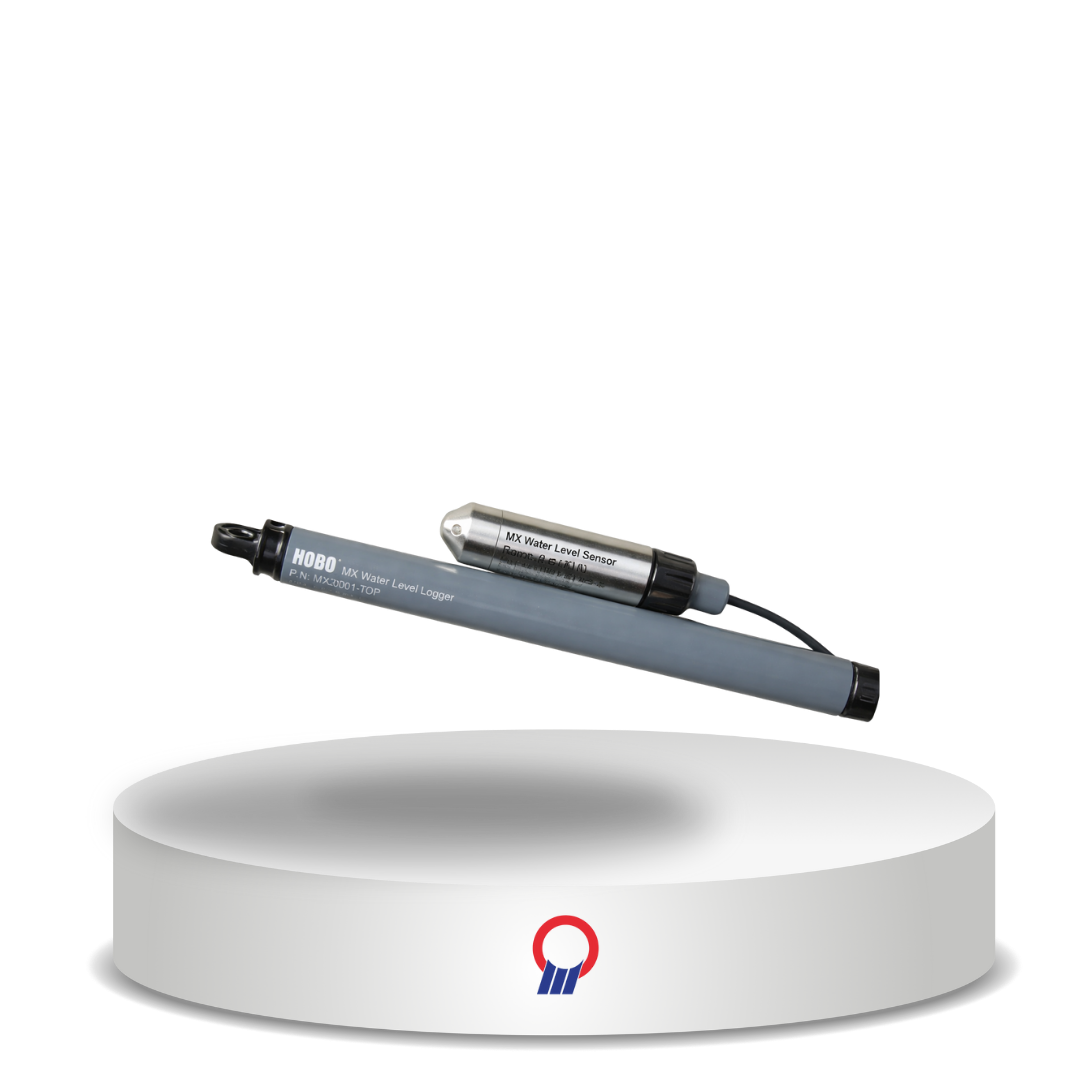

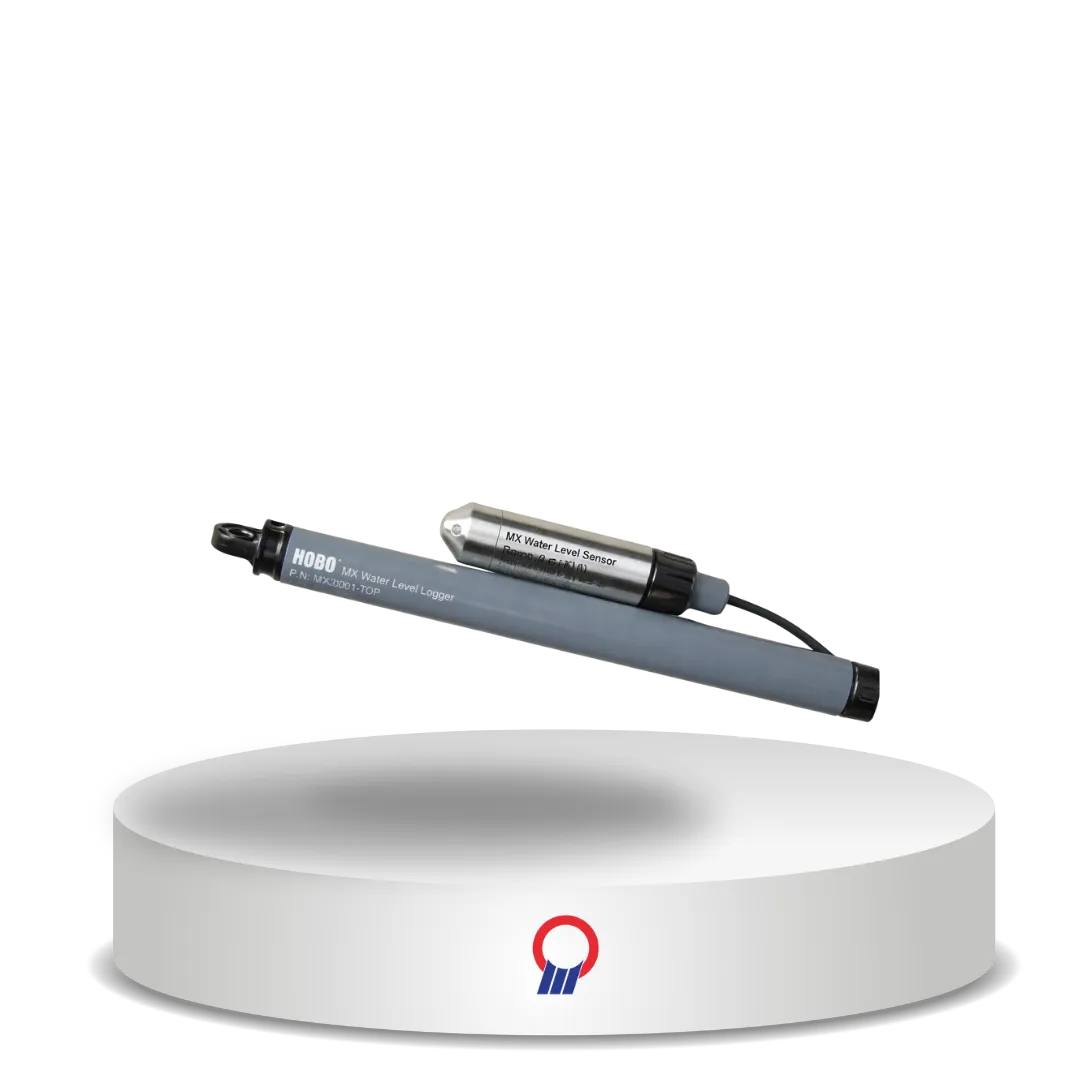

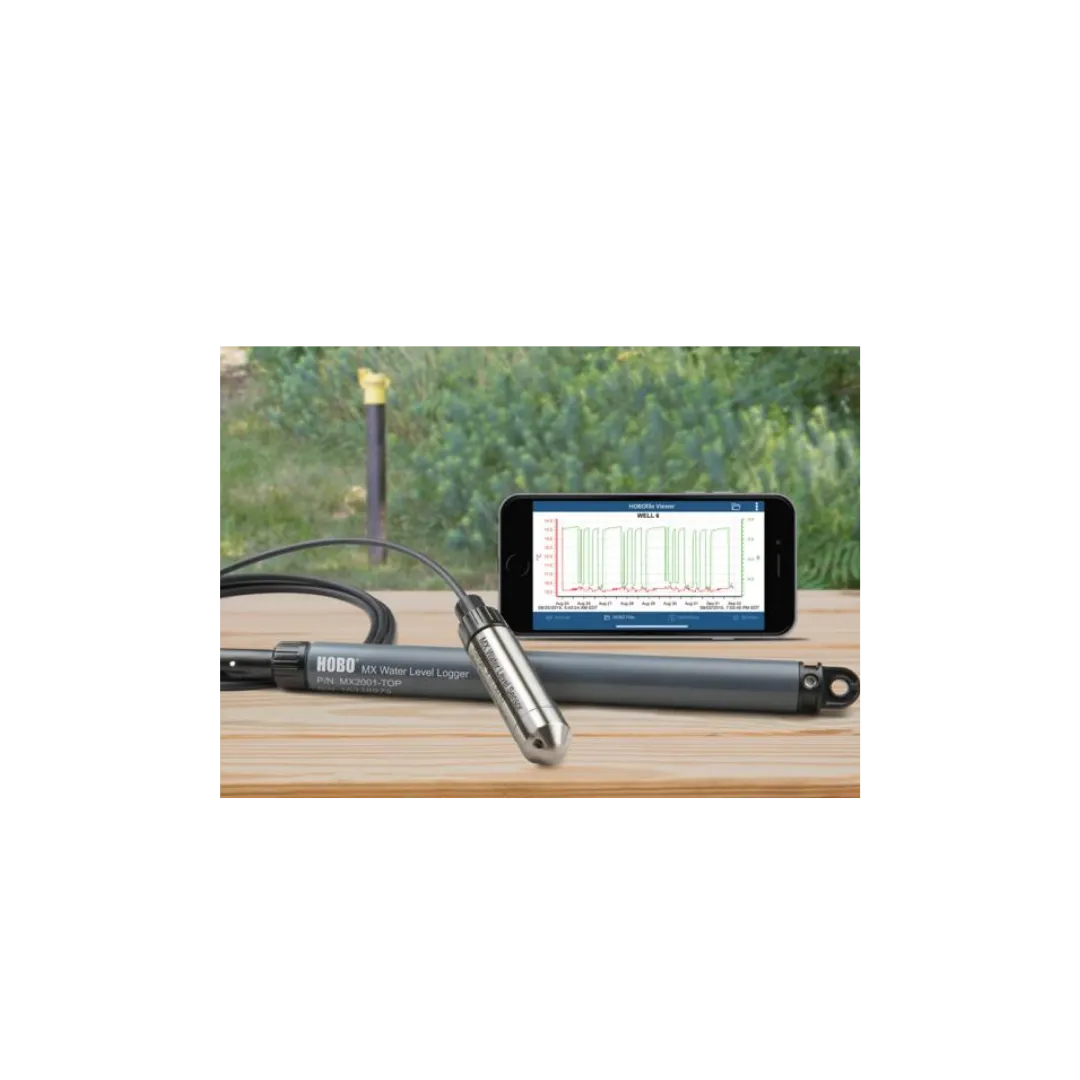

| Dimensions | Top end (MX2001-TOP): 2.54 cm (1.0 inches) diameter, 28.9 cm (11.4 inches) length; mounting hole 7.6 mm (0.3 inches) diameter

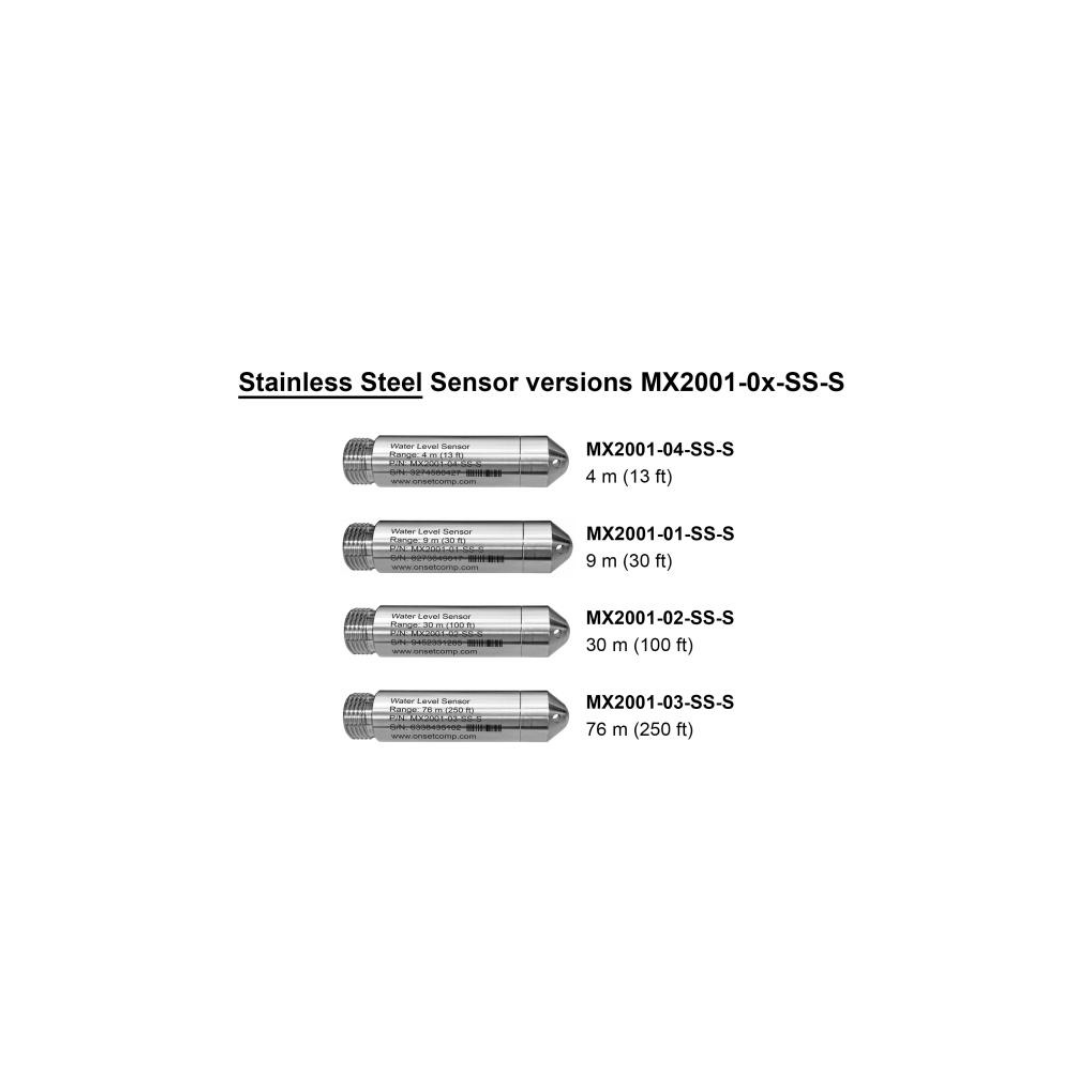

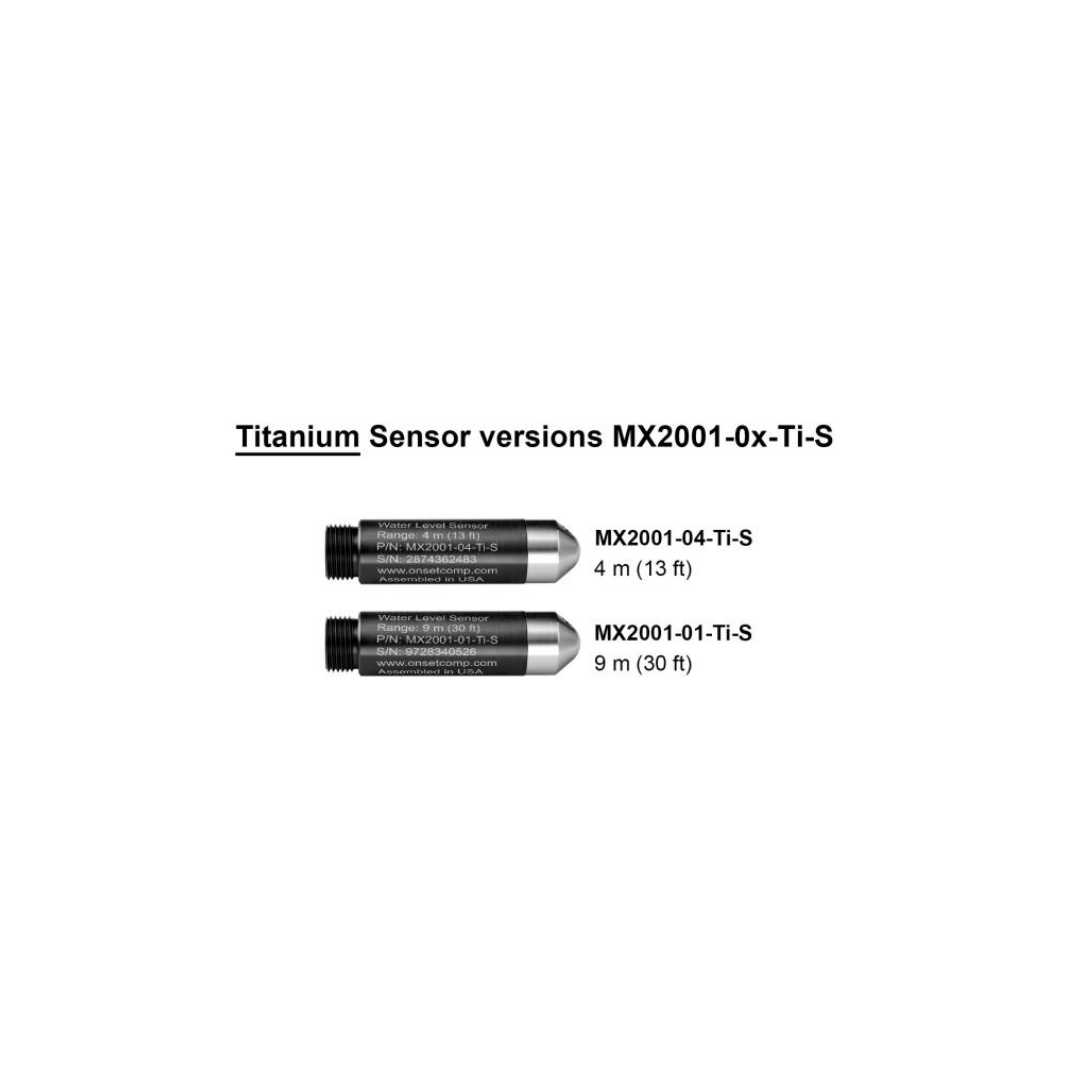

Sensor end (MX2001-0x-SS-S and MX2001-0x-Ti-S): 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length Note: The length of the water level logger cable (CABLE-DR-xxx) can vary -0% to +3% +10 cm (3.9 inches) from the length ordered. The logger adds 38.8 cm (15.3) inches to the length of the cable ordered. |
| Weight | Top end (MX2001-TOP): Approximately 136 g (4.78 oz) in air Stainless sensor end (MX2001-0x-SS-S): Approximately 141.4 g (4.99 oz) in air; approximately 93.4 g (3.3 oz) in fresh water Titanium sensor end (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |
| Wetted Materials | Top end (MX2001-TOP): PVC housing, Polycarbonate end cap, Viton O-ring Stainless sensor end (MX2001-0x-SS-S): Stainless steel housing, Viton and Buna-N O-rings, ceramic sensor in stainless steel end cap Titanium sensor end (MX2001-0x-Ti-S): Acetal housing, Viton and Buna-N O-rings, ceramic sensor in Titanium end cap Cable (CABLE-DR-XXX): Polycarbonate strain relief (top end connection), PVC end cap (sensor connection), nylon collar nuts, Viton O-rings, polyurethane jacket |
| Top end | NEMA 6, IP67; Intermittent 100% RH |
| Sensor end | IP68 |
