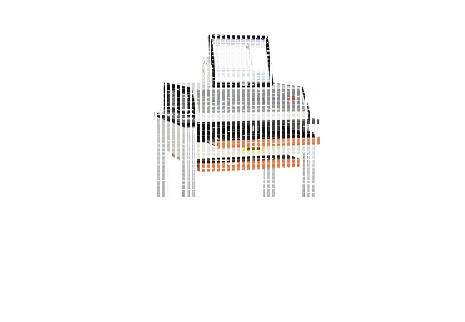

i-Boxtek 1700 Box Compression Tester

i-Boxtek 1700 Box Compression Tester

Features

  • Three test modes are available: crushing force test, stacking test A and stacking test B
  • Wide power input, step motor control and three test speeds to meet different test requirements
  • Over-load protection, maximum stroke protection and error alert provide a safe test operation
  • The instrument utilizes Windows operation interface and can be easily operated with a mouse and a keyboard
  • Test pressure and deformation can be dynamically displayed on standard LCD monitor
  • Equipped with four USB ports and dual Internet ports make it convenient for data transmission
  • Miniaturization and integration structure design is suitable for various test environment
  • Embedded computer control system provides safer and more reliable data management as well as test operation
  • It also supports Labthink exclusive DataShieldTM Note3 (Optional) which provides the users with safe and reliable management of test data and test reports.

Standards

This instrument conforms to many standards:
ASTM D642, ASTM D4169,TAPPI T804, ISO 12048, JIS Z0212, GB/T 16491, GB/T 4857.4

Applications

Basic Applications
  • Crushing Test of Cartons
    Test crushing force of corrugated cartons and beehive crates
  • Stacking Test A of Cartons
    Test deformation of corrugated cartons and beehive crates as stack behavior generates
  • Stacking Test B of Cartons
    Test deformation of corrugated cartons and beehive crates and judge whether the deformation is within the qualified range at fixed time and pressure.
Extended Applications
  • Crushing Test of Hollow Containers
    Test crushing force of hollow containers and other samples
  • Stacking Test A of Hollow Containers
    Test deformation of hollow containers as stack behavior generates
  • Stacking Test B of Hollow Containers
    Test deformation of hollow containers and judge whether the deformation is within the qualified range at fixed time and pressure.

Technical Specifications

Item Specification
Load Cell Capacity 9 kN
Accuracy 1% FS
Force Resolution 1 N
Deformation Resolution 0.1 mm
Specimen Height 100 mm ~ 600 mm
Test Speed 5 mm/min, 10 mm/min, 12.7 mm/min
Test Space 0.6 m (L) x 0.6 m (W) x 0.61 m (H)
Instrument Dimension 0.65 m (L) x 0.81 m (W) x 1.62 m (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Net Weight 180 kg

Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: The described product features, test standards and configurations should be in line with Technical Specifications.
Note 3: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be purchase as required.

Configurations

Standard Configurations
Instrument, Professional Software, LCD Monitor, Keyboard, Mouse, Printer
Optional Parts
Calibration Set, DataShieldTM Note3
