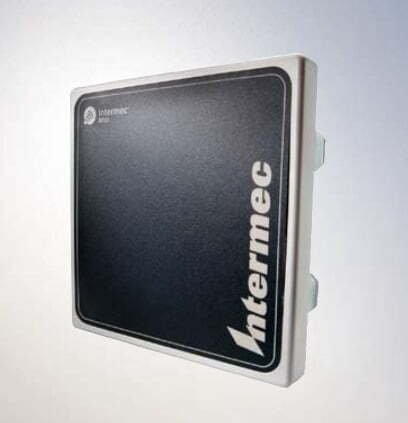

Intermec Model Number
IA33D / IA33E
Intermec Part Number
805-816-001 / 805-816-002
RFID Frequency Ranges
865 – 870 MHz / 902 – 928 MHz
Physical Characteristics
IA33D
Length: 19.6 cm (7.7 in)
Width: 19.6 cm (7.7 in)
Height: 2.5 cm (1 in)
Weight: 1.4 kg (3 lb)
IA33E
Length: 19.6 cm (7.7 in)
Width: 19.6 cm (7.7 in)
Height: 2.5 cm (1 in)
Weight: 1.4 kg (3 lb)
Environment
IA33D
Operating Temperature: -25°C to 55°C (-13°F to 131°F)
Storage Temperature: -30°C to 75°C (-22°F to 167°F)
Humidity (non-condensing): 10% to 90%
IA33E
Operating Temperature: -25°C to 55°C (-13°F to 131°F)
Storage Temperature: -30°C to 75°C (-22°F to 167°F)
Humidity (non-condensing): 10% to 90%
Environmental Rating
IP66 / IP66
Shock
IA33D
50 g, 8ms ½ sine, 5000 impulses each direction, each axis
IA33E
50 g, 8ms ½ sine, 5000 impulses each direction, each axis
Gain
6.0 dBi / 6.0 dBi
Impedance
50 Ohms / 50 Ohms
VSWR
<1.5:1 / <1.5:1
Axial Ratio
N/A / N/A
Polarization
Right Hand Circular / Right Hand Circular
Front-to-Back Ratio
10 dB / 10 dB
Maximum Input Power
10 Watts / 10 Watts
H-Plane Beamwidth
66 degrees (half power)** / 82 degrees (half power)
E-Plane Beamwidth
82 degrees (half power) / 82 degrees (half power)
Connector
N / N Reverse Polarity
RoHS, WEEE Compliance
Complies / Complies
Mounting Hardware
Adaptable Load Backrest Mounting Included / Adaptable Load Backrest Mounting Included
