RFID
Standards: EPC Class 1 Gen2, ISO 18000-
6c, ISO 18000-63
Antenna: Circular Polarized
Filed: 120° forward-facing
Frequency Ranges:
EU: 865-868 MHz
US: 902-928 MHz
Normal Read Range: 6m(20ft)
Normal Write Range: 3m(10ft)
COMMUNICATIONS
Bluetooth:
V.5.0
DIS Profile, BAS Profile
BLE
Bluetooth Pairing: Simple Secure Pairing
POWER
Removable, rechargeable 3.8V Lithium
Polymer 4000mAH
INDUSTRY STANDARDS
Industry Standard EPC Global Class 1 Gen 2
CHARGING

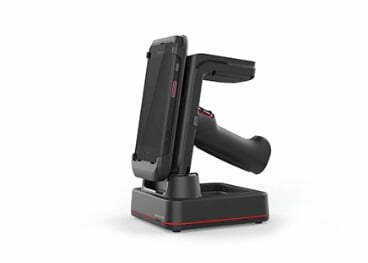

EDA51 Homebase Charging for Battery,
PDA and RFID reader simultaneously, Quad
Base for multi RFID readers charging, USB
cable charging
PHYSICAL CHARACTERISTICS
Dimension: Without Mobile Computer
185*77.8*147mm
Weight: 430g without Mobile Computer
Notifications: 4 LEDs and buzzer
ENVIRONMENTAL
Operating Temperature: -10° to 40°
Charging Temperature.: 0° to 40°
Storage Temperature: -20° to 60°
Humidity: 5-95% non-condensing
Drop spec: Multiple 4ft/1.2m drops
to concrete (0°-40°)
Tumble spec: 1000 tumbles at 1.6ft/0.5m
Sealing: IP54
Electrostatic Discharge:
+/-15Kdc air discharge
+/-8kVdc contact discharge
COMPATIBLE COMPUTERS
Compatible Models: Dolphin CT40,
ScanPal EDA51
SOFTWARE
Demo Apps: Download from
www.honeywellaidc.com
APK on Android
SDK and technical document
Features
- High tag read rate increases efficiency and reduces costs
- Single charging station for Reader and Computer makes it easy and faster to charge
- Ergonomic, balanced design provides extended use in different usage scenarios
- Exceptional read range, increases productivity and decreases manual effort
- Large, 4000 mAH battery enables uninterrupted use over long periods
