Physical Description

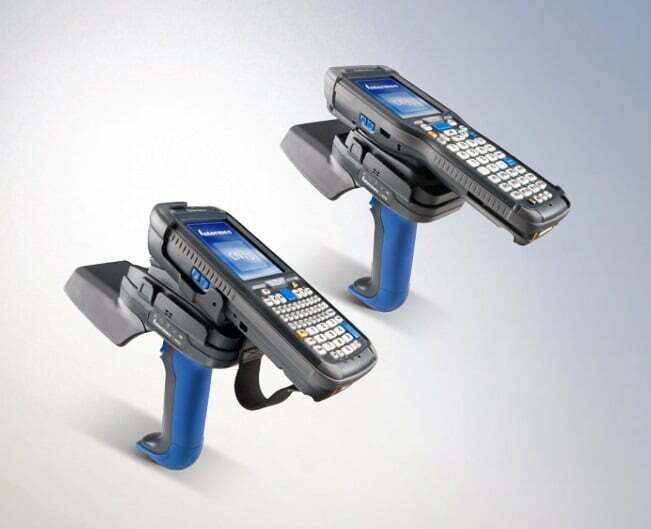

The IP30 handheld reader incorporates an
Intermec high-performance radio module as
well as a linear polarized antenna for superior
range. The IP30 supports a Bluetooth connection
to all supported handheld computers.
The IP30 meets ETSI and FCC standards and is factory
configured to operate in many regions including USA,
Mexico and Canada, EU, China, Taiwan, Thailand,
Australia, New Zealand, Brazil, Hong Kong, Singapore,
and Philippines.
Physical Characteristics
Weight without handheld computer:
430 g with battery (0.95 lbs)
Weight with CN70 and CK3B: 880 g with battery (1.94 lbs)
Weight with CN70e: 921 g with battery (2.03 lbs)
Weight with CK3X: 929 g with battery (2.05 lbs)
Weight with CK70: 992 g with battery (2.19 lbs)
Weight with CK71: 1.01 kg with battery (2.24 lbs)
Environmental Specifications
Operating Temp: -15° C to 50° C (5° F to 122° F)
Storage Temp: -30° C to 70° C (-22° F to 158° F)
Humidity: 10 to 95% (non-condensing)
Enclosure: IP64 compliant
Shock: 30 G, 11 ms, half sine pulse (operating)
Vibration: Quasi Random Vibration 17.5G
RMS for 2 hours, each of three axis
Drop Survival: Withstands 4 foot drop (1.3m)
26 times to concrete
Non-incendive (NI) Option: Class I – Div. 2 Groups A,
B, C, D; Class II – Div. 2 Groups F, G; Class III – Div 2. T6
Compatible Handheld Computers
CN70, CN70e, CK70, CK71, CK3B, CK3X
Communication Interface to Handheld Computer
Bluetooth
Antenna Type
Linear polarized
Antenna Field
70-degree cone (approx.) measured from
nose of device
Typical Read Range (tag and environment dependent)
6.09 cm to 609.6 cm+ (0.2 ft. to 20 ft.+)
Typical Write Range (tag and environment dependent)
30.5 cm to 182.9 cm+ (1 ft. to 6 ft.+)
Maximum Output Power
Up to 30 dBm (regional dependent)
Indicator LEDs
Five indicator LEDs:
1. SmartSystems – Power/Ready to Work
2. Data Transfer to Host
3. RF on
4. Tag Read
5. Battery Status
Power
Removable Lithium–ion battery pack (2400 mAh)
Accessories
External battery charger
RFID Frequency Ranges
865 and 915 MHz bands supporting
multiple regional configurations
Tag Air Interfaces
EPCglobal Class 1 Gen 2
ISO 18000-6c
ISO 18000-6b
Software
Demonstration software
Common API with Intermec’s RFID reader portfolio
Features
- Easy, snap-on installation to Intermec mobile computers, featuring near/far area imaging and multiple network communication options
- Lightweight ergonomic design
- Bluetooth® connection to the mobile computer
- Seamless software application portability between Intermec fixed readers and IP30
- Optional non-incendive (NI) configurations
- Based on EPCglobal certified radio
- Available in multiple frequency bands for global operation
