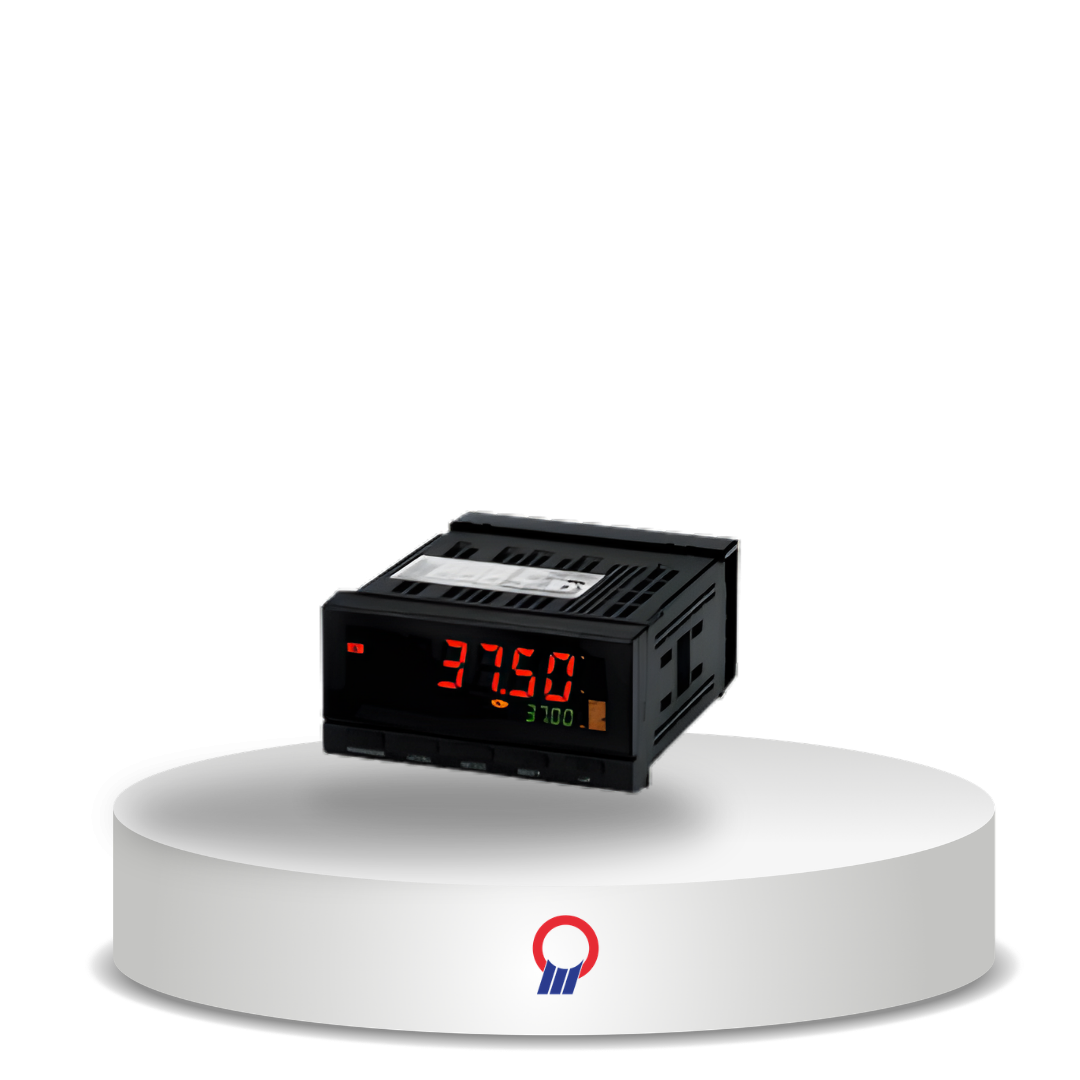

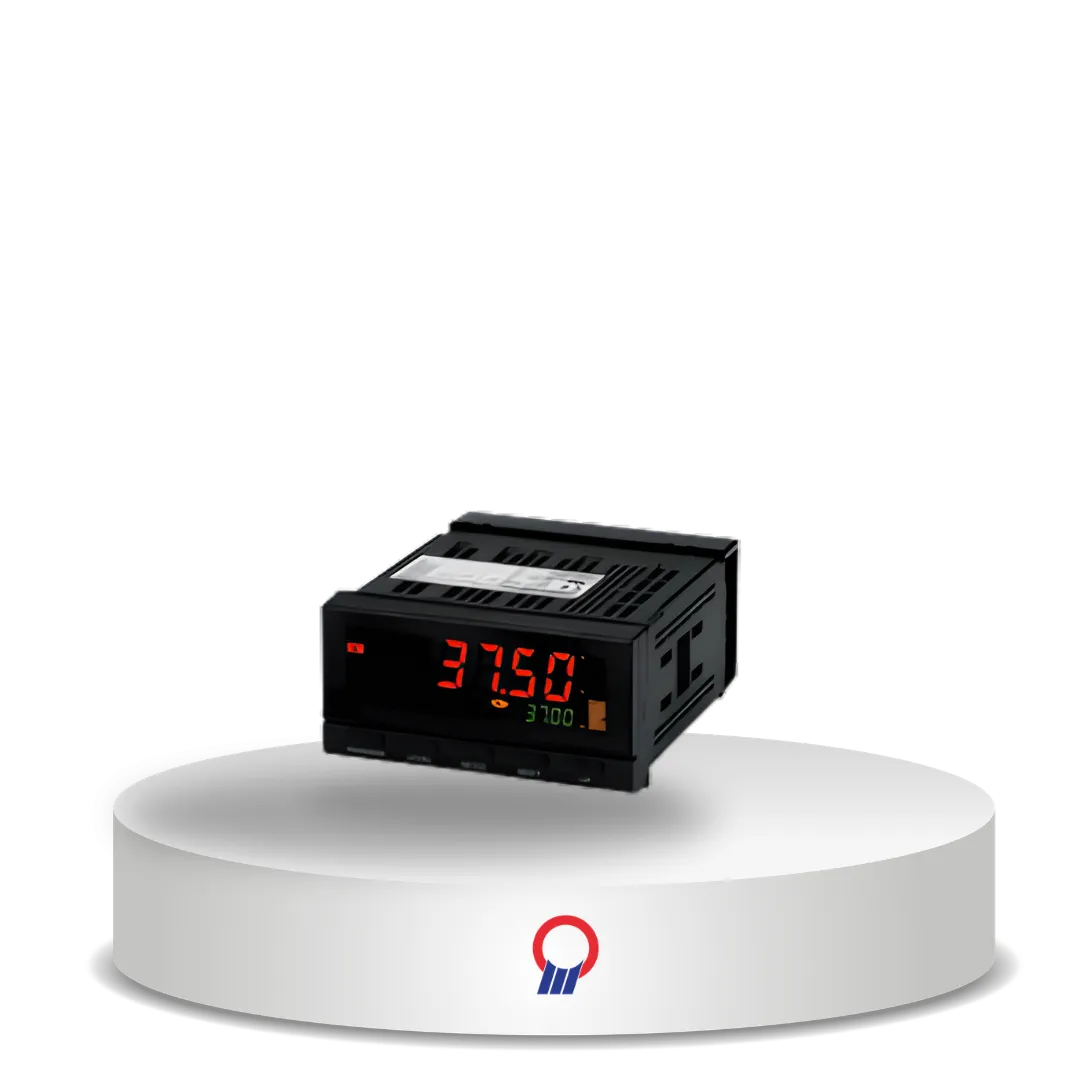

Power supply voltage
|
100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC
|
|
Allowable power supply voltage range
|
85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC
|
|
Power consumption
|
100 to 240 V: 18 VA max. (max. load), 24 VAC/DC: 11 VA/7 W max. (max. load)
|
|
Display method
|
Negative LCD (backlit LED) display 7-segment digital display
(character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green))
|
|
Ambient operating temperature
|
−10 to 55°C (with no icing or condensation)
|
|
Display range
|
−19,999 to 99,999
|
|
Weight
|
Approx. 300 g (base unit only)
|
|
Degree of protection
|
Front-panel
|
Conforms to NEMA 4X for indoor use (equivalent to IP66)
|
|
Rear case
|
IP20
|
|
Terminals
|
IP00 + finger protection (VDE0106/100)
|
|
Memory protection
|
EEPROM (non-volatile memory), number of rewrites: 100,000
|
|
Event input ratings
|
Contact
|
ON: 1 kΩ max., OFF: 100 kΩ min.
|
|
No-contact
|
ON residual voltage: 2 V max., OFF leakage current: 0.1 mA max., load current: 4 mA max.
Maximum applied voltage: 30 VDC max.
|
|
Output ratings
|
Transistor output
|
Maximum load voltage
|
24 VDC
|
|
Maximum load current
|
50 mA
|
|
Leakage current
|
100 µA max.
|
|
Contact output
(resistive load)
|
Rated load
|
5 A at 250 VAC, 5 A at 30 VDC
|
|
Rated through current
|
5 A
|
|
Mechanical life expectancy
|
5,000,000 operations
|
|
Electrical life expectancy
|
100,000 operations
|
|
Linear output
|
Allowable load impedance
|
500 Ω max. (mA); 5 kΩ min. (V)
|
|
Resolution
|
Approx. 10,000
|
|
Output error
|
±0.5% FS
|
|
Size in mm (H×W×D)
|
48×96×100
|
