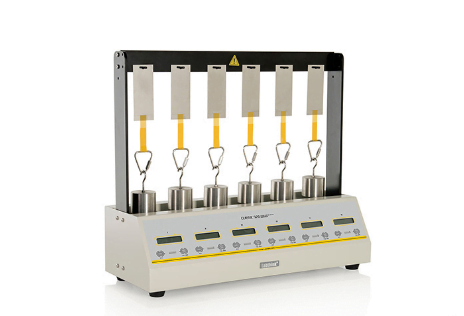

Lasting Adhesive Tester CLASSIC 920 Labthink

Alat Uji Perekat, Alat Pengujian Perekat, Alat Uji Lasting Adhesive, Instrumen ini dikendalikan oleh komputer mikro, dengan panel operasi PVC, sakelar membran, dan LCD, yang nyaman bagi pelanggan untuk beroperasi dan melihat data uji Lasting Adhesive Tester CLASSIC 920 Labthink

Features

Standard test plates and weights ensure the accuracy of test data
The instrument is controlled by micro-computer, with PVC operation panel, membrane switches and LCD, which is convenient for customers to operate and view test data
Six testing stations could test groups of specimens simultaneously
Auto timing and locking functions provide higher accuracy of test results

Principle

The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property could be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at such load.

Standards

This test instrument conforms to the standards: GB/T 4851, ASTM D3654, JIS Z0237

Applications

Basic Applications
GB/T 4851 A Method Including various adhesives, e.g. pressure-sensitive tapes, medical patches, adhesive labels and protection films
Extended Applications
GB/T 4851 D/E/F Method Fiber reinforced adhesive tape
Pharmacopoeia standards Medical plasters

Technical Specifications

Specifications	CLASSIC 920 Lasting Adhesive Tester
Standard Roller	2000 g ±100 g
Weight	1000 g ±5 g (with triangle hook)
Test Plate	125 mm (L) x 50 mm (W) x 1.1 mm (D)
Timing Range	0 ~ 100 h (standard)
Timing Range	0 ~ 10000 h (optional)
Number of Stations	6
Instrument Dimension	600 mm (L) x 240 mm (W) x 530 mm (H)
Power Supply	220VAC 50Hz / 120VAC 60Hz
Net Weight	23 kg

Configurations

Standard Configurations: Instrument, Weight, Triangle Hook, Test Plate

Optional Parts: NIST SRM1810A Fiberboard, Test Accessories for Horizontal Test: Test Stand for Horizontal Test, Weight, Test Plate
