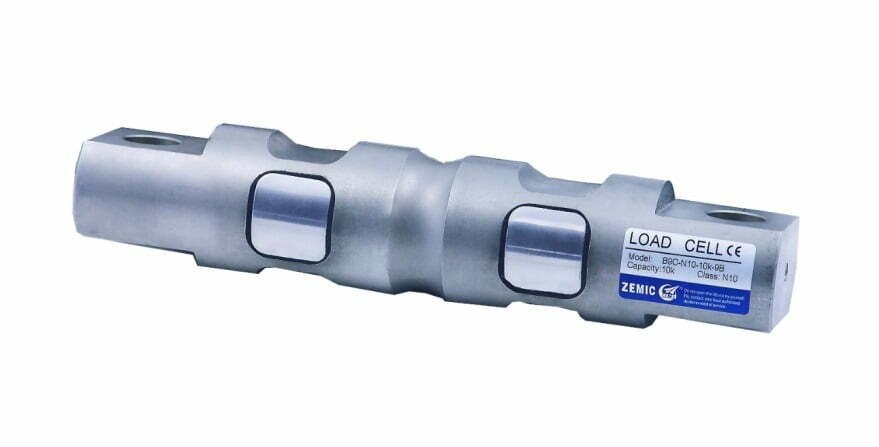

Loadcell B9C stainless steel dual shear beam load cell (5K-250K)

Loadcell B9C stainless steel dual shear beam load cell (5K-250K) - Image 3

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models B9C

Technical Specification B9C

Spesifikasi

Stainless steel IP67 dual shear beam load cell
High accuracy
Suitable for truck scales and other heavy weighing devices
Sealed construction

Available Models

Capacity Accuracy Full article description
5Klb N3 B9C-N3-5K-9B
10Klb N10 B9C-N10-10K-9B
15Klb N10 B9C-N10-15K-9B
20Klb N10 B9C-N10-20K-9B
30Klb N10 B9C-N10-30K-9B
40Klb N10 B9C-N10-40K-9B
50Klb N10 B9C-N10-50K-9B
60Klb N10 B9C-N10-60K-9B
75Klb N10 B9C-N10-75K-9B
90Klb N10 B9C-N10-90K-9B
100Klb N10 B9C-N10-100K-9B
150Klb N3 B9C-N3-150K-9B
200Klb N3 B9C-N3-200K-9B
250Klb N3 B9C-N3-250K-9B
