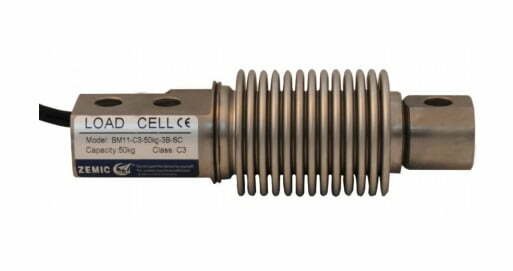

Loadcell BM11 stainless steel bending beam load cell, OIML approved (5kg-500kg)

Loadcell BM11 stainless steel bending beam load cell, OIML approved (5kg-500kg) - Image 3

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models BM11

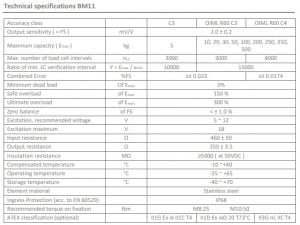

Technical specifications BM11

Spesifikasi

Stainless steel IP68 single ended bending beam
Hermetically sealed
Suitable for pallet, platform and small hopper scales
High accuracy
Current calibrated (sc-option)

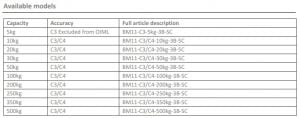

Available Models

Capacity Accuracy Full article description
5kg C3 Excluded from OIML BM11-C3-5kg-3B-SC
10kg C3/C4 BM11-C3/C4-10kg-3B-SC
20kg C3/C4 BM11-C3/C4-20kg-3B-SC
30kg C3/C4 BM11-C3/C4-30kg-3B-SC
50kg C3/C4 BM11-C3/C4-50kg-3B-SC
100kg C3/C4 BM11-C3/C4-100kg-3B-SC
200kg C3/C4 BM11-C3/C4-200kg-3B-SC
250kg C3/C4 BM11-C3/C4-250kg-3B-SC
350kg C3/C4 BM11-C3/C4-350kg-3B-SC
500kg C3/C4 BM11-C3/C4-500kg-3B-SC
