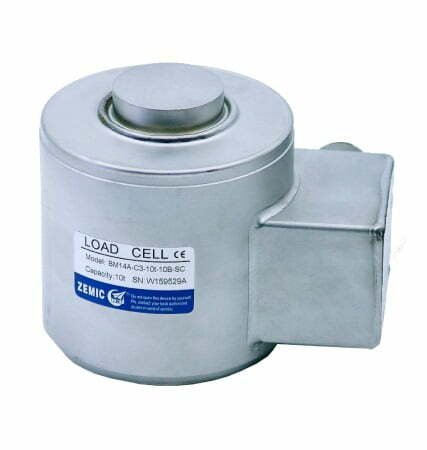

Loadcell BM14A stainless steel compression load cell, OIML approved (10t-200t)

Loadcell BM14A stainless steel compression load cell, OIML approved (10t-200t) - Image 3

Loadcell BM14A stainless steel compression load cell, OIML approved (10t-200t) - Image 4

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models BM14A

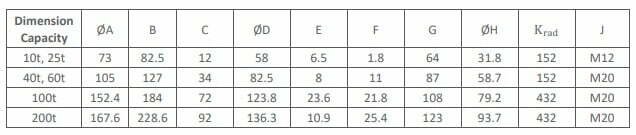

Technical Specifications BM14A

Spesifikasi

Stainless steel IP68 compression load cell
Hermetically sealed
Suitable for vehicle and hopper scales and
vehicle testing facilities
Built-in surge arrestors
Current calibrated (SC-option)

Available Models

Capacity Accuracy Full article description
10t C3 BM14A-C3-10t-10B/20B-SC
25t C3 BM14A-C3-25t-20B-SC
40t C3 BM14A-C3-40t-20B-SC
60t C3 BM14A-C3-60t-20B-SC
100t C3 BM14A-C3-100t-20B-SC
200t G1 (Excluded from OIML) BM14A-G1-200t-20B
