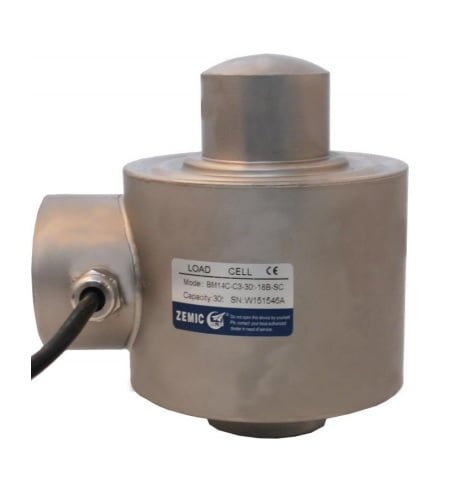

Loadcell BM14C stainless steel compression load cell, OIML approved (0.5t-50t)

Available Models BM14C

Detailed Specifications BM14C

Spesifikasi

• Stainless steel IP68 compression load cell
• Hermetically sealed
• Suitable for vehicle and hopper scales and
  vehicle testing facilities
• Built in surge arrestors
• High accuracy
• Current calibrated (sc-option)

Available models

Capacity Accuracy Full article description
0.5t C3 Excluded from OIML BM14C-C3-0.5t-15B-SC
1t C3 Excluded from OIML BM14C-C3-1t-15B-SC
2t C3 Excluded from OIML BM14C-C3-2t-15B-SC
3t C3 Excluded from OIML BM14C-C3-3t-15B-SC
5t C3 Excluded from OIML BM14C-C3-5t-15B-SC
10t C3/C4 BM14C-C3/C4-10t-15B-SC
20t C3/C4 BM14C-C3/C4-20t-15B-SC
25t C3/C4 BM14C-C3/C4-25t-15B-SC
30t C3/C4 BM14C-C3/C4-30t-15/18B-SC
40t C3/C4 BM14C-C3/C4-40t-15/18B-SC
50t C3/C4 BM14C-C3/C4-50t-15/18B-SC
