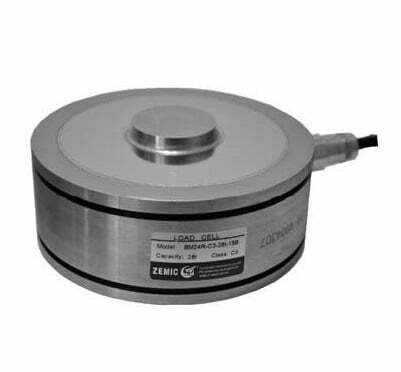

Loadcell BM24R stainless steel ring torsion load cell, OIML approved (60kg-60t)

Loadcell BM24R stainless steel ring torsion load cell, OIML approved (60kg-60t) - Image 3

Loadcell BM24R stainless steel ring torsion load cell, OIML approved (60kg-60t) - Image 4

Loadcell BM24R stainless steel ring torsion load cell, OIML approved (60kg-60t) - Image 5

Loadcell BM24R stainless steel ring torsion load cell, OIML approved (60kg-60t) - Image 6

Loadcell BM24R stainless steel ring torsion load cell, OIML approved (60kg-60t) - Image 7

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models BM24R

Technical Specification BM24R

Spesifikasi

Stainless steel IP68 low profile load cell
Hermetically sealed
Suitable for hopper, platform and pallet scales
Integrated static overload protection up to 13t

Available Models

Capacity Accuracy Full article description
60kg C3/C4/C5 BM24R-C3/C4/C5-60kg-3G
130kg C3/C4/C5 BM24R-C3/C4/C5-130kg-3G
250kg C3/C4/C5 BM24R-C3/C4/C5-250kg-3G
280kg C3/C4/C5 BM24R-C3/C4/C5-280kg-3G
500kg C3/C4/C5 BM24R-C3/C4/C5-500kg-3G
1t C3/C4/C5 BM24R-C3/C4/C5-1t-3G
2t C3/C4/C5 BM24R-C3/C4/C5-2t-6G
3.5t C3/C4/C5 BM24R-C3/C4/C5-3.5t-6G
5t C3/C4/C5 BM24R-C3/C4/C5-5t-6G
10t C3/C4/C5 BM24R-C3/C4/C5-10t-15G
13t C3/C4/C5 BM24R-C3/C4/C5-13t-15G
28t C3/C4/C5 BM24R-C3/C4/C5-28t-15G
60t C3/C4/C5 BM24R-C3/C4/C5-60t-15G
