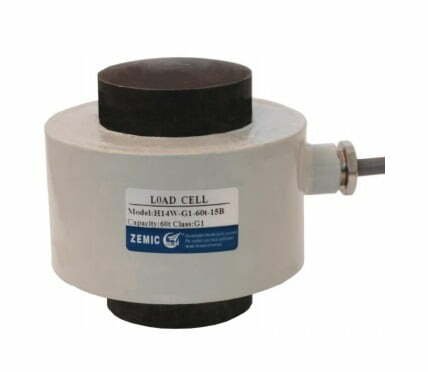

Loadcell H14W tool steel compression load cell (2.8t-500t)

Available Models H14W

Technical Specifications H14W

Spesifikasi

• Tool steel IP66 compression load cell
• Epoxy coated
• Cable suitable for application with higher
  temperatures up to 130˚C
• Low profile
• Double bridge option from 13t and up

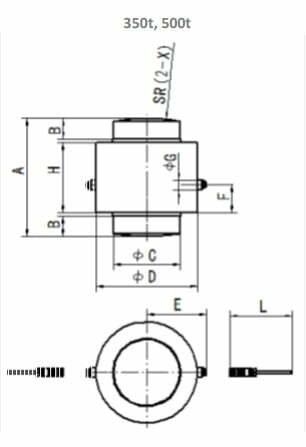

• 350t and 500t load cells are delivered with
  a connector for easy installation

Available Models

Capacity Accuracy Full article description
2.8t G1/G2 H14W-G1/G2-2.8t-6B
6t G1/G2 H14W-G1/G2-6t-6B
13t G1/G2 H14W-G1/G2-13t-15B
28t G1/G2 H14W-G1/G2-28t-15B
60t G1/G2 H14W-G1/G2-60t-15B
130t G1/G2 H14W-G1/G2-130t-20B
280t G1/G2 H14W-G1/G2-280t-20B
350t G1/G2 H14W-G1/G2-350t-25J
500t G1/G2 H14W-G1/G2-500t-25J
