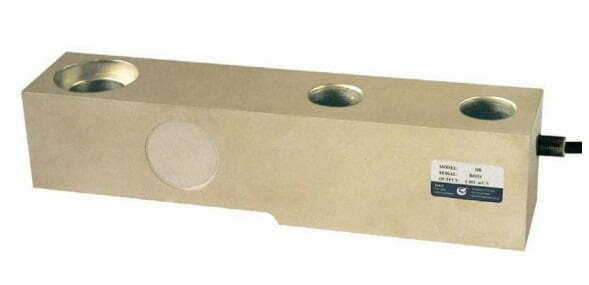

Loadcell H8 nickel plated alloy steel shear beam load cell, OIML approved (500kg-50t)

Loadcell H8 nickel plated alloy steel shear beam load cell, OIML approved (500kg-50t) - Image 3

Loadcell H8 nickel plated alloy steel shear beam load cell, OIML approved (500kg-50t) - Image 4

Loadcell H8 nickel plated alloy steel shear beam load cell, OIML approved (500kg-50t) - Image 5

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models H8

Detailed specifications H8

Spesifikasi

Nickel plated alloy steel IP67 shear beam load cell
Suitable for truck-, track and hopper scales
Suitable for hazardous locations

Available Models

Capacity Accuracy Full article description
500kg C3 Excluded from OIML H8-C3-500kg-4B6
1t C3 Excluded from OIML H8-C3-1t-4B6
2t C3 Excluded from OIML H8-C3-2t-4B6
2.5t C3 Excluded from OIML H8-C3-2.5t-4B6
3t C3 Excluded from OIML H8-C3-3t-4B6
5t C3 H8-C3-5t-6.5B6
10t C3 H8-C3-10t-12B6
15t C3 H8-C3-15t-12B6
20t C3 H8-C3-20t-12B6
25t C3 H8-C3-25t-12B6
30t C3 H8-C3-30t-12B6
50t C3 H8-C3-50t-12B6
