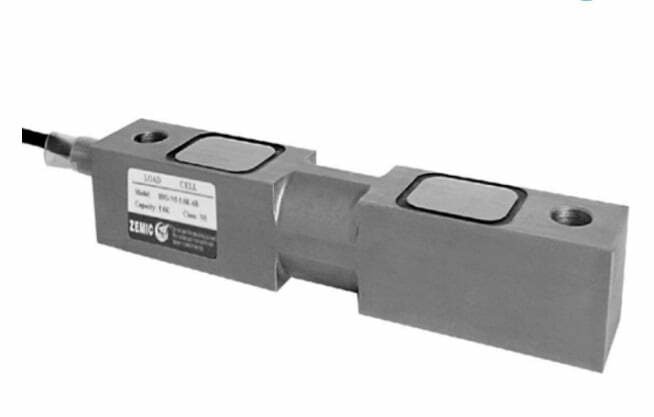

Loadcell H9D nickel plated alloy steel dual shear beam load cell, OIML approved (1K-75K)

Loadcell H9D nickel plated alloy steel dual shear beam load cell, OIML approved (1K-75K) - Image 3

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models H9D

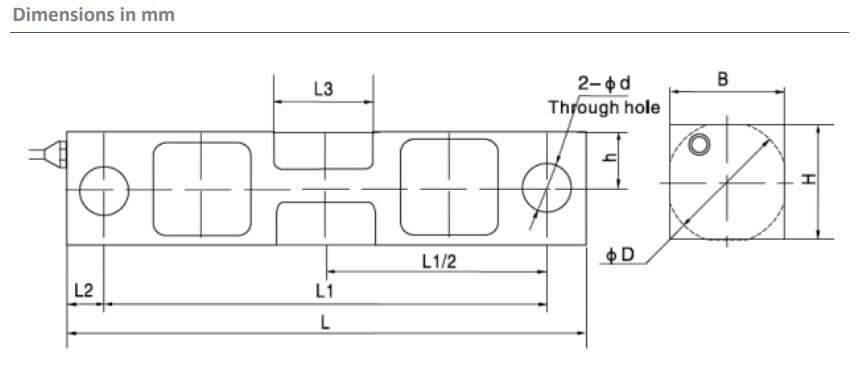

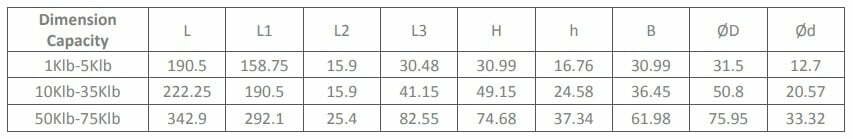

Technical Specification H9D

Spesifikasi

Nickel plated alloy steel IP67 dual shear beam load
cell
High accuracy
Suitable for truck and track scales and other heavy
weighing devices
Sealed construction

Available Models

Capacity Accuracy Full article description
1Klb N3 H9D-N3-1K-6B
1.5Klb N3 H9D-N3-1.5K-6B
2Klb N3 H9D-N3-2K-6B
2.5Klb N3 H9D-N3-2.5K-6B
4Klb N3 H9D-N3-4K-6B
5Klb N3 H9D-N3-5K-6B
10Klb N3 H9D-N3-10K-6B
15Klb N3 H9D-N3-15K-6B
20Klb C3/C4/C5 H9D-C3/C4/C5-20K-6B
25Klb C3/C4/C5 H9D-C3/C4/C5-25K-6B
35Klb C3/C4/C5 H9D-C3/C4/C5-35K-6B
50Klb C3/C4/C5 H9D-C3/C4/C5-50K-6B
75Klb C3/C4/C5 H9D-C3/C4/C5-75K-6B
