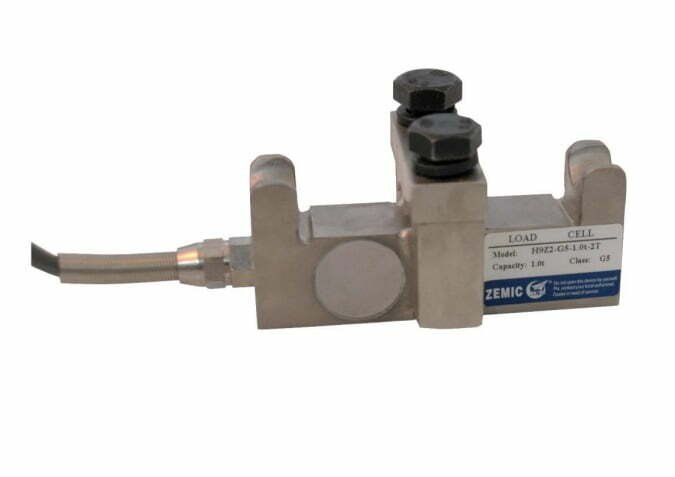

Loadcell H9Z2 Nickel plated alloy steel IP67 shear beam load cell, hoist cable sensor (0.5t-10t)

Loadcell H9Z2 Nickel plated alloy steel IP67 shear beam load cell, hoist cable sensor (0.5t-10t) - Image 3

Loadcell H9Z2 Nickel plated alloy steel IP67 shear beam load cell, hoist cable sensor (0.5t-10t) - Image 4

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models H9Z2

Technical Specifications H9Z2

Spesifikasi

Nickel plated alloy steel IP67 shear beam load cell
Used on the hoist cable to monitor the weight lifted

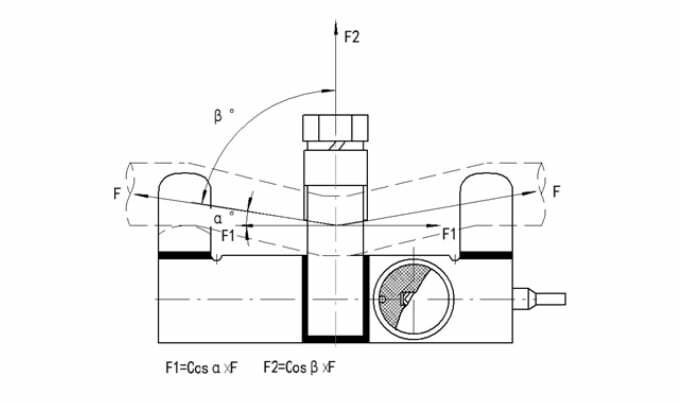

Suitable for measuring rope extension for

Available Models

Capacity Accuracy Full article description
0.5t G5 H9Z2-G5-0.5t-2T
1t G5 H9Z2-G5-1t-2T
1.5t G5 H9Z2-G5-1.5t-2T
2.5t G5 H9Z2-G5-2.5t-2T
5t G5 H9Z2-G5-5t-2T
10t G5 H9Z2-G5-10t-2T
