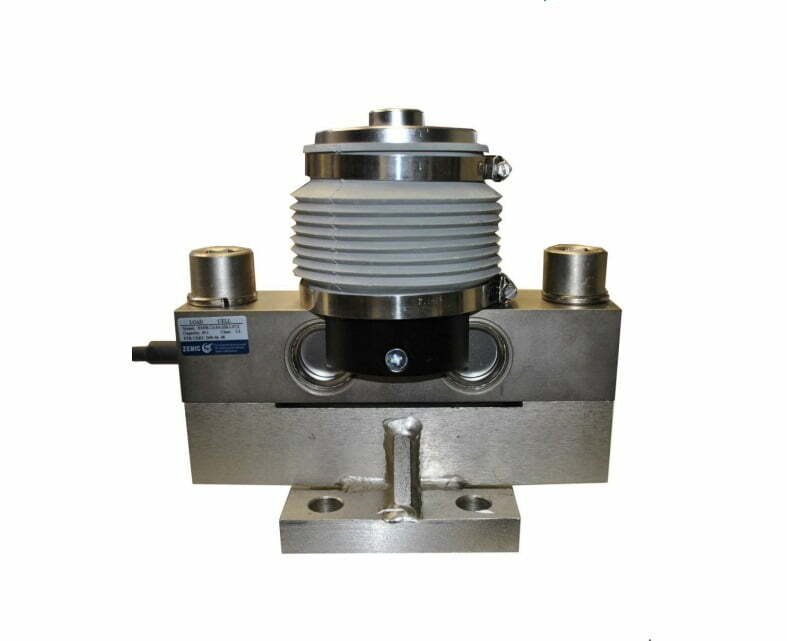

Loadcell HM9B nickel plated alloy steel dual shear beam load cell, OIML approved (10t-50t)

Loadcell HM9B nickel plated alloy steel dual shear beam load cell, OIML approved (10t-50t) - Image 3

Loadcell HM9B nickel plated alloy steel dual shear beam load cell, OIML approved (10t-50t) - Image 4

Loadcell HM9B nickel plated alloy steel dual shear beam load cell, OIML approved (10t-50t) - Image 5

Loadcell HM9B nickel plated alloy steel dual shear beam load cell, OIML approved (10t-50t) - Image 6

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models HM9B

Technical Specifications HM9B

Spesifikasi

Nickel plated alloy steel IP68 dual shear beam
load cell
High accuracy
Suitable for truck, track, hopper and other
electronic weighing devices
Current calibrated (sc-option)

Available Models

Capacity Accuracy Full article description
10t C3 HM9B-C3-10t-12B-2-FH
20t C3 HM9B-C3-20t-12B-2-FH
25t C3 HM9B-C3-25t-20B(-SC) -2-FH
30t C3 HM9B-C3-30t-20B(-SC) -2-FH
40t C3 HM9B-C3-40t-16B-2-FH
50t C3 HM9B-C3-50t-16B-2-FH
