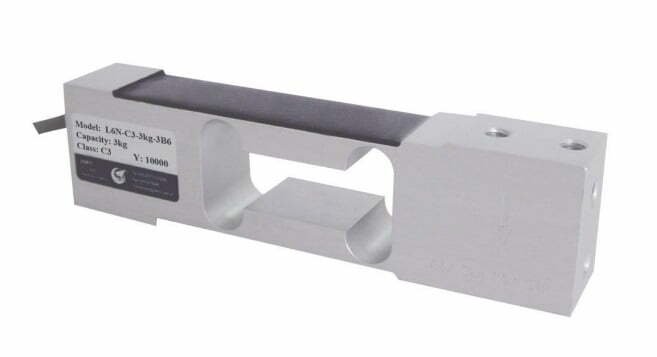

Loadcell L6N aluminium single point load cell, OIML approved (3kg-100kg)

Loadcell L6N aluminium single point load cell, OIML approved (3kg-100kg) - Image 3

Loadcell L6N aluminium single point load cell, OIML approved (3kg-100kg) - Image 4

Loadcell L6N aluminium single point load cell, OIML approved (3kg-100kg) - Image 5

Load Cell, Single Point Load Cell, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models L6N

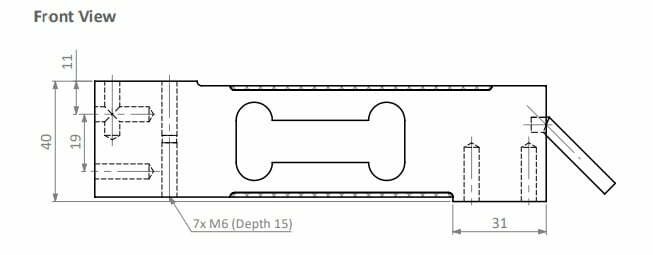

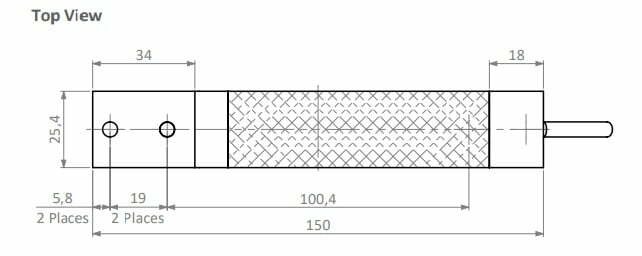

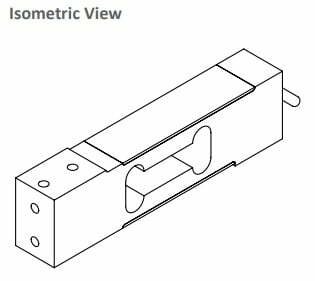

Technical Specification L6N

Spesifikasi

Aluminium-alloy IP65 single point load cell
Colourless anodized
Suitable for single or double load cell structured
platform scales
Maximum platform size: 400 x 400 mm

Available Models

Capacity Accuracy Full article description
3kg C3 L6N-C3-3kg-3B6
5kg C3 L6N-C3-5kg-3B6
8kg C3 L6N-C3-8kg-3B6
10kg C3 L6N-C3-10kg-3B6
15kg C3/C4 L6N-C3/C4-15kg-3B6
20kg C3/C4 L6N-C3/C4-20kg-3B6
30kg C3/C4 L6N-C3/C4-30kg-3B6
40kg C3/C4 L6N-C3/C4-40kg-3B6
50kg C3/C4 L6N-C3/C4-50kg-3B6
75kg C3/C4 L6N-C3/C4-75kg-3B6
100kg C3 L6N-C3-100kg-3B6
200kg C3 Excluded from OIML L6N-C3-200kg-3B6
