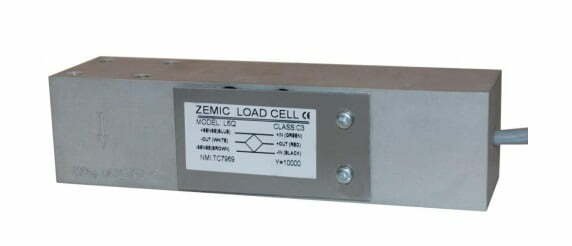

Loadcell L6Q aluminium single point load cell, OIML approved (50kg-250kg)

Available Models L6Q

Technical Specification L6Q

Spesifikasi

• Aluminium-Alloy IP65 single point load cell
• Colourless anodized
• Suitable for single and double load cell structured
  platform scales
• Maximum platform size: 400 x 400 mm

Available Models

Capacity Accuracy Full article description
50kg C3/C4 L6Q-C3/C4-50kg-3B6
100kg C3/C4/C5 L6Q-C3/C4/C5-100kg-3B6
150kg C3/C4/C5 L6Q-C3/C4/C5-150kg-3B6
200kg C3/C4/C5 L6Q-C3/C4/C5-200kg-3B6
250kg C3/C4/C5 L6Q-C3/C4/C5-250kg-3B6
