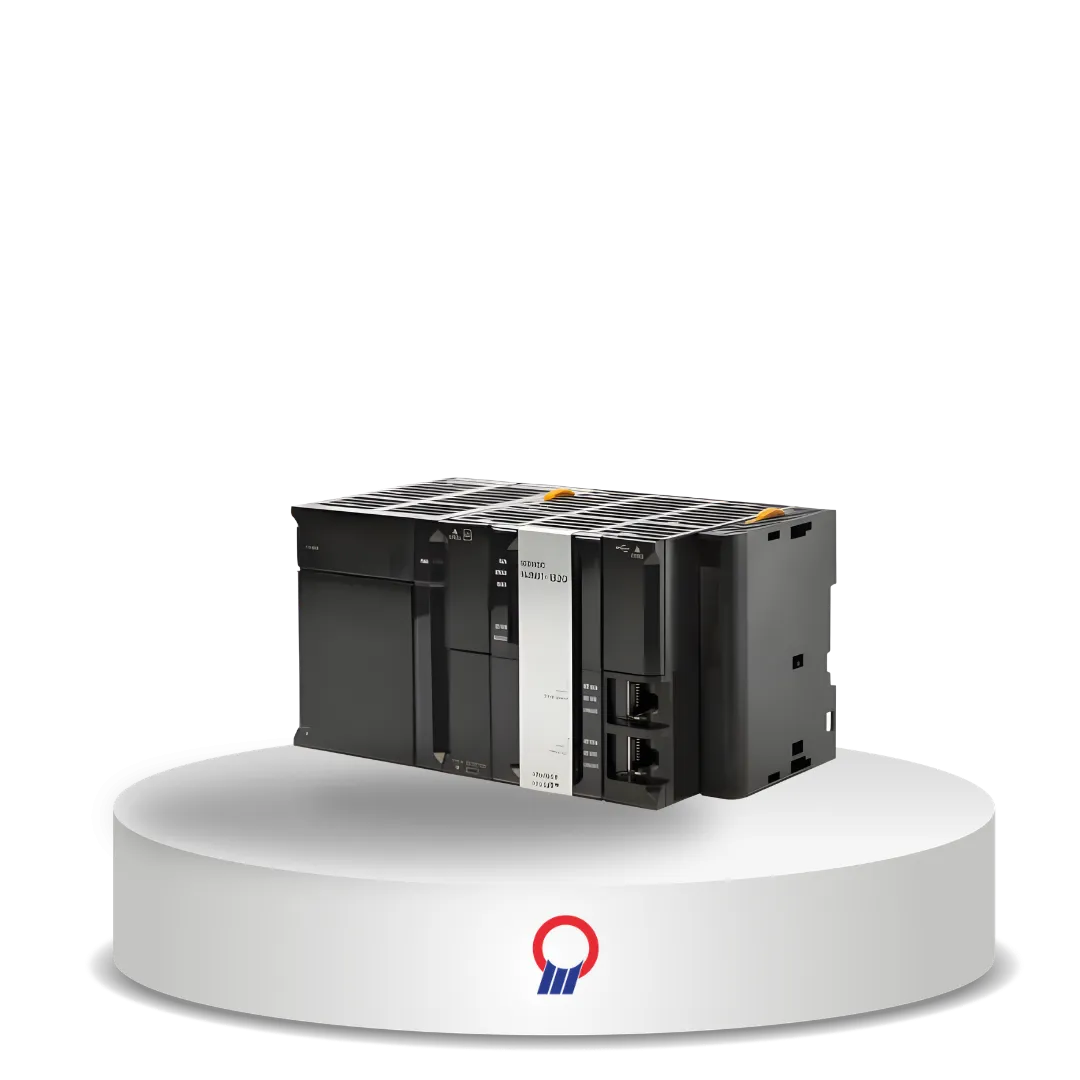

Seri NJ3 memperluas solusi pengontrol Sysmac menjadi 4 dan 8 sumbu.
| Item | Specification | ||
|---|---|---|---|
| NJ501-□□□□ | NJ301-□□□□ | NJ101-□□□□ | |
| Enclosure | Mounted in a panel | ||
| Grounding Method | Ground to less than 100 Ω | ||
| Dimensions (height×depth×width) | 90 mm × 90 mm × 90 mm | ||
| Weight | 550 g (including the End Cover) | ||
| Current Consumption | 5 VDC, 1.90 A (including SD Memory Card and End Cover) | ||
| Operation Environment | Ambient Operating Temperature | 0 to 55°C | |
| Ambient Operating Humidity | 10% to 90% (with no condensation) | ||
| Atmosphere | Must be free from corrosive gases. | ||
| Ambient Storage Temperature | -20 to 75°C (excluding battery) | ||
| Altitude | 2,000 m or less | ||
| Pollution Degree | 2 or less: Meets IEC 61010-2-201. | ||
| Noise Immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) | ||
| Overvoltage Category | Category II: Meets IEC 61010-2-201. | ||
| EMC Immunity Level | Zone B | ||
| Vibration Resistance | Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s² for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
||
| Shock Resistance | Conforms to IEC 60068-2-27. 147 m/s², 3 times in X, Y, and Z directions (100 m/s² for Relay Output Units) |
||
| Battery | Life *1 | 5 years at 25°C | |
| Model | CJ1W-BAT01 | ||
| Applicable Standards *2 | cULus, EU, UKCA, RCM, KC, NK, LR *3 | ||
