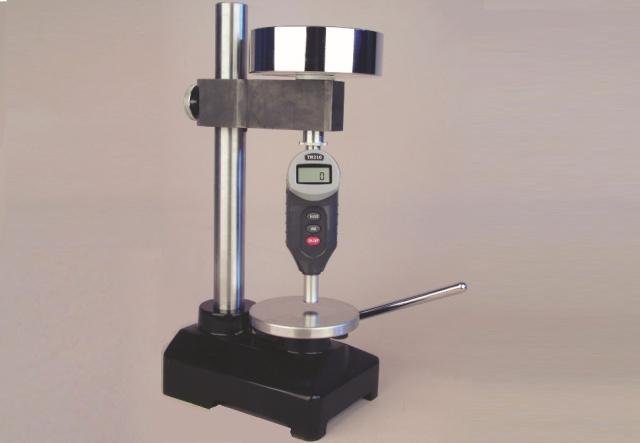

● With the operating stand, users can get good measurement accuracy and repetitiveness
● Constant measurement force eliminates the errors caused by artificially applied different forces
● The operation handle evenly applies the force to the sample; adjust the testing height to meet the measurement of different sample thickness
Specification
|
Model |
TH210FJ |
|
|
Max. thickness of sample (mm) |
80 |
|
|
Max. diameter of working table (mm) |
Ø116 |
|
|
Max. lifting displacement (mm) |
24 |
|
|
Max. touch distance between pressure foot and working table (mm) |
0.05 |
|
|
Dimensions (mm) |
420X200x170 |
|
|
Weight (g) |
22000 | |
| Standard Delivery | |
| Operating stand | 1 |
| Handle | 1 |
| Weight | 1 |
| Connecting rod | 1 |
| TIME certificate | 1 |
| Warranty card | 1 |
| Instruction manual | 1 |
