Application
Thermal receipt printing
Physical Characteristics
Depth: 3.1 inches (7.87 cm)
Height: 7.1 inches (18.03 cm)
Width: 6.62 inches (16.82 cm)
Weight: 3.0 lb (1.36 kg) w/ 2 battery packs and full roll
receipt paper
Drop test: 4 ft to concrete
Print Specifications
Print Width: 4.1 inch (104 mm)
Element Size: 0.0049 inch (0.125mm)
Minimum Graphical Element: 0.010 inch (0.254 mm)
Print Speed
2 ips (50 mm/sec)
Print Resolution
203 DPI (8 dots/mm)
Receipts
Max. Width: 4.4 inch (111.8 mm)
Thickness: 0.002 to .0044 inch
(0.05 to 0.112 mm)
Tracking: Center

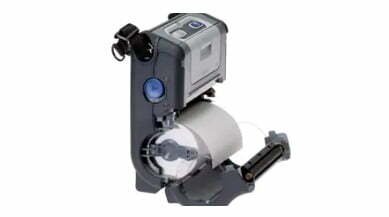

Style: Roll-fed or fanfold
Roll Max Diameter: 2.65 inches
(67 mm)
Roll Core ID: 0.75 inch (19.05 mm)
Media Type: Receipt paper
Standard Interface
Serial RS-232 (115 kbps)
USB v.1.1 (full speed)
Class 1 Bluetooth®
Optional Interface
Class 1 Bluetooth® – range up to
100 m (328 feet)
Character Sets
West European Latin No. 1 and
9: Danish, Dutch, English, Faeroese,
Finnish, French, German, Icelandic,
Irish, Italian, Norweigian,
Portuguese, Spanish, and Swedish.
East European Latin No. 2:
Albanian, Czech, English, German,
Hungarian, Polish, Rumanian,
Serbocroation, Slovak, and Slovene.
Cyrillic: Bulgarian,Byelorussian,
English, Macedonian, Russian,
Serbocroation, and Ukrainian.
Arabic
Greek
Hebrew
U.S. standard
Europe multilingual
Code Page requirements for Far East
Log onto www.intermec.com for additional
international fonts for the PB42 portable printer.
Font types
40 column, normal, bold, 80 column, normal, bold, 132
column, normal, bold
Standard Memory
16 MB SDRAM
4 MB Flash
LED Indicators
Intermec Ready-to-Work Indicator
Radio –Green Flashing
Battery – Green/Red
Power Supply
AC Adapter: 50 Watt
Voltage Range: 12 V ± 5%.
Rechargeable Li-Ion Battery: 7.2V, 2.4A-H. Each
printer ships standard with two batteries (batteries do
not ship with vehicle mount option).
Operating Environment
Operating: -20°C (-4°F) to 50°C (122°F)
Non-operating: -30°C (-22°F) to 70°C (158°F)
Battery Charging: 0°C (32°F) to 50°C (122°F)
Relative Humidity: 10% to 90% non-condensing
Regulatory Approvals
North America UL and cUL Listed, UL 60950; Europe
TÜV Rheinland GS Licensed, EN 60950; Mexico NYCE
CERTIFIED, NOM 19; Other Countries EN 60950 CB; CE
Mark
EMC Approvals
USA FCC Title 47, Part 15, Subpart B, Class B; Europe
EMC Directive (EN 55022 Class B + EN 55024); CISPR22
Options & Accessories
Belt Clip, Shoulder Strap, Batteries, AC Charger,
Vehicle Mount, External Paper Tray, AC Power Adapter,
Cigarette Lighter Adapter, Nylon System Case, Four
Bay Printer Charger
Features
- Intermec Designed & Manufactured
- Dual high capacity Lithium Ion batteries
- Intermec SmartSystems™ Device Management
- Serial, USB and Bluetooth® Class 1 Interfaces

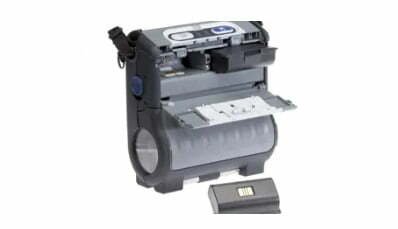

- Frontloading batteries
- Flexibility to use roll or fanfold receipt paper
- High visibility buttons and indicators
- International logos facilitate global use
- Simple paper installation
- Operates in temperatures as low as -20° C
