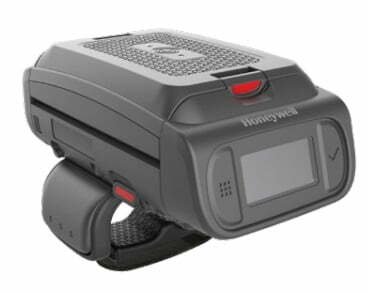

Pemindai Barcode 8690i Wearable RFID Mini Mobile Computer

RFID

Standards: EPC Global Class 1 Gen 2/ISO
18000-6C
Antenna:
Triggered ring:
Field: Directed from top of device
Polarization: Linear polarized
Glove:
Field: Directed from inside of wrist
Polarization: Linear polarized
Frequency Ranges:
EU: 865-868 MHz
US: 902-928 MHz
Nominal Read Range:
Internal antenna: 0.6m (2 ft)
Glove auxiliary antenna: 1m (3.3 ft)
Nominal Write Range:
Internal antenna: 0.3m (1 ft)
Glove auxiliary antenna: 0.5m (1.6 ft)
Output Power: Internal/external max
25dBm

MECHANICAL

Dimensions (L x W x H): 95.7 mm x 56 mm
x 39.4 mm (3.8 in x 2.2 in x 1.6 in)
Weight (Triggered Ring): 211g (7.4 oz)
Scan Performance:
Scan Pattern: Omni-directional
area imager
Motion Tolerance: Up to 584 cm (230
in)/second
Symbol Contrast: 20% minimum
reflectance
Pitch: ±45°
Skew: ±60°
Warranty: Two-year factory warranty (Note:
Battery warranty is one year.)

ENVIRONMENTAL

Operating Temperature: -20°C to 50°C
(-4°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F
to 140°F)
Humidity: 0% to 95% relative humidity
(non- condensing)
Drop: 36 1.5 m (4.9 ft) drops to concrete
Tumble: 2,000 0.5 meter (1.6 ft) tumbles
Environmental Sealing: IP54
Light Levels: 0 to 100,000 lux
ESD: ±20 kV air discharge, ±10 kV contact
discharge

WIRELESS

Radio Range:
Bluetooth: 2.4 GHz to 2.5 GHz (ISM
Band) Adaptive Frequency Hopping
Bluetooth® v. 5.0: Class 1; 100 m (330ft)
line of sight; NFC communications to
simplify pairing with host device
Advanced Model Wi-Fi: Bluetooth above
plus Wi-Fi 802.11 a/b/g/n/ac, WiFi-r fast
roaming, 2.4 and 5 GHz
Security Standards: WPA, WPA2, WEP,
WPA2 EAP (TLS, TTLS, PEAP GTC and
PEAP MSCHAPv2)
Connection: Connection, Auto-reconnect,
Intra Profile connection (roaming), Hidden
and Broadcast SSIDs
Soft Roaming: Simple and learned, across
bands (all combinations of 2.4 GHz and 5
GHz), DFS Channels and 802.11 modes
Opportunistic Key Caching (OKC)
Battery: 3.6 V, 3400 mAh
Hours of operation: Minimum 6 hour active
shift with continuous RFID reading and
optical scanning every 4 seconds
Hot Swap Capability: Under typical
conditions, device will remain operational
for 100 seconds while replacing battery
Expected Charge Time:
Battery charger: 3 hours
Device charger: 3.5 hours

GLOVE CHARACTERISTICS
Strap glove securely locates 8690i on back
of hand for optimum dexterity, ergonomics,
and user comfort. Secondary RFID antenna
optimizes performance reading items
during handling process.
Highly durable design for long lifespan,
reduced consumable costs; trigger rated for
2.5MM activations.
Hygienic, non-absorbent material
construction.
Compatible with bare hand or conventional
glove for comfort and user safety.
One size; highly adjustable at index finger,
palm, and wrist.
Left and right hand versions available.

Features

• Industry-standard EPC Global Class 1 Gen 2, RFID reader ensures that the 8690i can read all common supply chain RFID tags.
• Reduce acquisition and operations costs with the customizable line-of-sight color display, WiFi, and SDK for application development, enabling the 8690i device to support streamlined workflows as a standalone device, replacing scanner, reader, and mobile computer alternatives.
• Customize to fit multiple applications with field reconfigurable accessories that enable ring or glove mounts. Chargers are available for devices and batteries in 4 or 12 bay options for distributed or large scale consolidated deployments.
• Engineered for 2,000 0.5 meter (1.6 feet) tumbles, the 8690i wearable mini mobile is built to endure rugged work environments and real-world use.
• Honeywell Operational Intelligence workflow analytics to manage battery population lifecycle, ensuring uninterrupted full-shift operation; simple deployment of setting and firmware updates.
