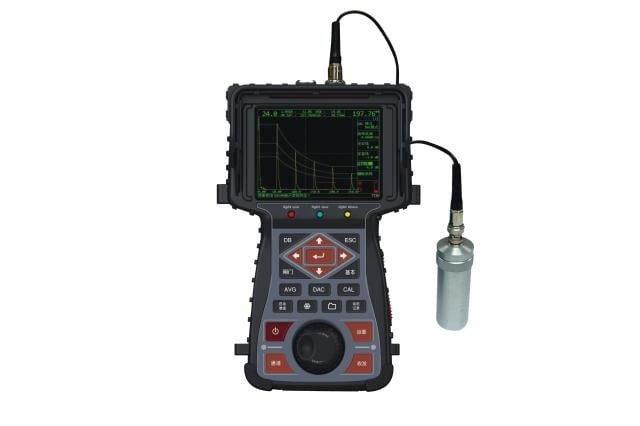

● Precise and stable horizontal and vertical linearity with horizontal linearity 0.1% and vertical linearity 2%
● High performance square wave pulser with tuning option.
● DAC,AVG,DGS curves and defect echo help to evaluate defect equivalent calculation
●Two high resolution scanning mode: A and B
● Four ways to present waveform: positive half-wave, negative half- wave, full wave and radio frequency.
● Automatic gain adjustment, defect equivalent calculation and peak memory function
● Display of echo envelope
● Two individual gates setting and alarming function.
● Gate measurement includes echo amplitude, beam path, depth, projection and so on.
● Waveform freeze available:in full ,peak, comparative and envelope ways
● 50 detecting channels are available with separate detecting parameters and DAC (Distance Amplitude Correction) curves in every channel.
● Three detecting modes(single-probe, dual crystal probe and transmission) with automatic calibration function
● Connected to PC via USB interface with advanced software for data analysis and management.
● Super large memory, 1000 waveform diagrams can be stored.
● EPSON ink-jet printers can be connected with TUD 500
●Real-time waveform display and review
Specification
|
Items |
Description |
|
Scanning range |
2.5 mm ~9999 mm |
|
Scanning |
0.1mm (2.5mm ~100mm) |
|
resolution |
1mm (100 mm ~5000mm) |
|
Gain range |
0dB ~110 dB |
|
D-delay |
-20µs~+3400µs |
|
P-delay |
0.000~750.000 |
|
Sound speed |
600 m/s~16000m/s |
|
Bandwidth |
0.1MHz~15MHz |
|
Vertical linearity accuracy |
≤2% |
|
Horizontal linearity accuracy |
≤0.1% |
|
Dynamic range |
100dB |
|
Rectification |
Positive half wave, negative wave, full wave, and RF |
|
Sensitivity leavings |
≥62dB |
|
Test mode |
Pulse-echo, dual and through transmission |
|
Pulser |
Square pulse |
|
Damping |
50ohms, 100ohms ,200ohms,500 ohms |
|
Reject |
Linear, 0-80% of full screen |
|
Unit |
Metric/inch |
|
Interface |
RS232 / USB |
|
Printer |
EPSON ink-jet printers |
|
AC requirements |
Input: 100-240~50/60Hz |
|
Temperature |
-10℃~40℃ |
|
Humidity |
20%~90%RH |
|
Power |
2×3.7V 5000mAh |
|
Charging time |
8h |
|
Dimension (mm) |
300×180×57 |
|
Weight (g) |
2000 |
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | RS232 communication cable |
| Li battery | 2sets | USB communication cable |
| Power adapter (3A/9V) | 1 | Flash disk |
| LEMO-Q9 probe connecting cable | 1 | Printer |
| LEMO-Q6 Probe connecting cable | 1 | |
| Neck strap | 1 | |
| Wrist strap | 1 | |
| Hood | 1 | |
| Straight beam probe | 1 | |
| Angle beam probe | 1 | |
| Couplant | 1 | |
| TIME certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
Applications
- Roller Flaw Detection
- Welding Flaw Detection
