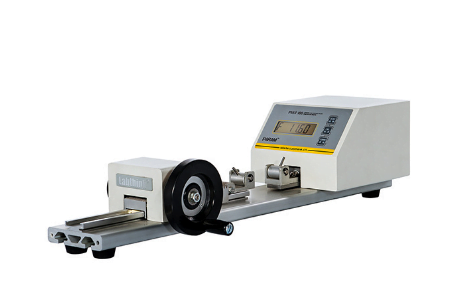

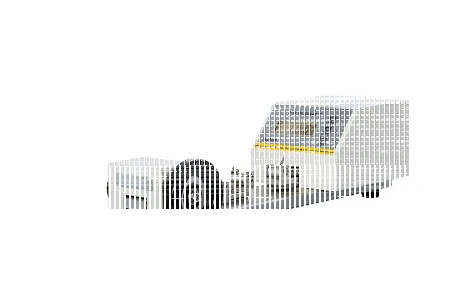

PSST-100 Portable Heat Seal Strength Tester

PSST-100 Portable Heat Seal Strength Tester

Jual Alat Uji Film Plastik, Lembar, Film Komposit Untuk uji kekuatan seal panas film plastik, lembaran dan film komposit mis. paket untuk mie instan, bubuk pabrik, bubuk cuci serta paket eksternal untuk makanan dan obat-obatan yang terbuat dari PE, PP, PET atau film komposit

PSST-100 Portable Heat Seal Strength Tester is designed for heat seal strength test of plastic films, composite films and other materials. This instrument is suitable for on-site quantitative inspection.

Features

  • The instrument is controlled by micro-computer with menu interface, PVC operation panel and large LCD display which is convenient for the user to review the testing data and results
  • Professional software supports unit conversion, data query, probability statistics and normal distribution display
  • Power cord and chargeable battery as power supplies
  • Portable design for on-site inspection
  • Equipped with RS232 port which is convenient for the data transmission
  • Supports LystemTM Lab Data Sharing System for uniform and systematic data management

Standards

This instrument conforms to the national standard: QB/T 2358

Applications

Basic Applications
  • Plastic Films, Sheets, Composite Films
    For heat seal strength tests of plastic films, sheets and composite films e.g. package for instant noodle, mill powder, washing powder as well as the external packages for food and drugs made of PE, PP, PET or composite films

Technical Specifications

Specifications PSST-100
Capacity Range 0 ~ 100 N
Accuracy 1% FS
Resolution 0.01 N
Tensile Stroke 100 mm
Power Supply 220VAC 50Hz / 120VAC 60Hz
Instrument Dimension 500 mm (L) x 165 mm (W) x 130 mm (H)
Net Weight 3.5 kg

Configurations

Standard Configurations
Instrument and Universal Sample Grips
Optional Parts
Professional Software and Communication Cable
