Physical Description

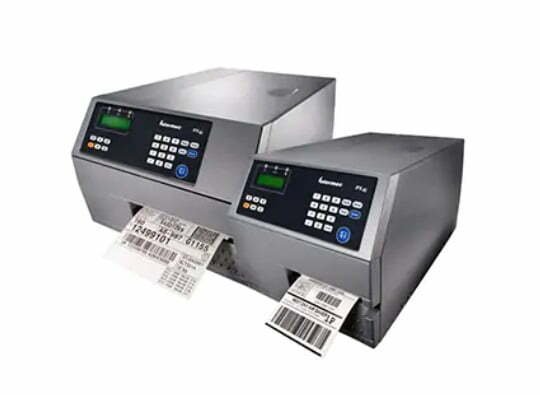

Direct thermal and thermal transfer label, ticket
and tag printer. Also available with RFID.
Physical Characteristics
LxHxW:
PX4i: 482 x 238 x 275 mm (19.0 x 9.4 x 10.8 in)
PX6i: 482 x 238 x335 mm (19.0 x 9.4 x 13.2 in)
Weight:
PX4i: 12.85 kg (28.4 lbs)
PX6i: 14.80 kg (32.6 lbs)
Print Specifications
Max. Print Width:
PX4i: 112 (DT)/110 (TT) mm (4.4/4.3 in)
PX6i: 167.4 mm (6.59 in)
Max. Length:
4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi
1016 mm (40 in) at 406 dpi

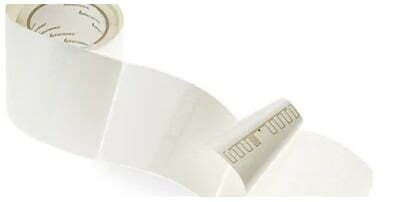

RFID Standards & Frequencies
Supports ISO 18000-6B and 18000-6C / EPC
Generation 2
865-928 MHz radio configured to comply with local
UHF RFID regulations including FCC and ETSI. Contact
local representative for availability in particular region.
Print Speed
PX4i: 100 – 300 mm/s (4 – 12 ips) for 203/300dpi
100 – 250 mm/s (4 – 10 ips) for 406 dpi
PX6i: 100 – 225 mm/s (4 – 9 ips) for 203/300dpi
Media
Type: Labels & Tags
Max/Min Width:
PX4i: 120/ 25.4mm (4.72/ 1 in)
PX6i: 170/ 76 mm (6.69/ 3 in)
Thickness: 2.4 to 10.0 mil
Configuration: Roll-fed or fanfold
Sensing: Gap, notch, black mark, continuous
Label Roll Max Diameter: 213 mm (8.38 in)
Label Roll Core: 38-76mm (1.5-3 in)
Type: Ribbons
Roll Max Diameter: 80 mm (3.15in), approx. 450m
Core ID: 25.4 mm (1”)
Type: Wax, mid-range, resin
Genuine Intermec Media: www.intermec.com/media

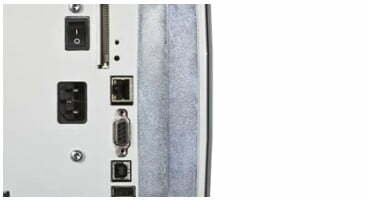

Interfaces
Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
Supported Serial Protocols:
• Fingerprint/Direct Protocol: XON/
XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0
Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4
analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485
and 20mA Current Loop, Applicator Interface
Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, Cisco® Compatible
(CCX) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-
TTLS, LEAP, PEAP, FAST), 802.11i
• Multiple industrial antenna options
for maximized coverage
Supported Protocols: TCP/IP-suite (TCP, UDP,
ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP,
HTTP, SNMPv3, SMTP.SNMP-MIB II supported
(over UDP/IP), private enterprise MIB included.
Supports IPv4 and IPv6
Software
Printer Command Languages:
• IPL
• Fingerprint/Direct Protocol
• ZSim (ZPL)
• DSim (DPL)
• XML enabled for SAP® AII and Oracle® WMS
Applications / Drivers:
• InterDriver™ Windows printer driver
• Intermec label design and print package
• PrintSet for printer configuration
Development Software:
• Intermec Fingerprint Application Builder™ (IFAB)
(RFID libraries included)
Device Management Support:
• SmartSystems™
• Wavelink Avalanche™
Bar Code Symbologies
All major 1D and 2D symbologies are supported.
Standards Supported
UPC/EAN Shipping Container; UCC/EAN 128 Serial
Shipping Container; MH10.8 Shipping Label; AIAG
(shipping parts label); OGMARS; POSTNET; HIBCC; ISBT
128; GM1724; UPS shipping label; Global Transport label
Fonts
Scalable fonts including CP1252
Font cache for maximum performance
Non-Latin fonts and legacy fonts available
Graphics
Supports PCX file format. (Fingerprint Only)
Other graphic formats supported
with Label Generation Tools
Memory
Standard: 16MB Flash memory, 32MB
SDRAM, 1 Compact Flash slot
Available: 1GB CompactFlash memory, multi-GB USB
memory device (FAT16/FAT32 USB drivers supported)

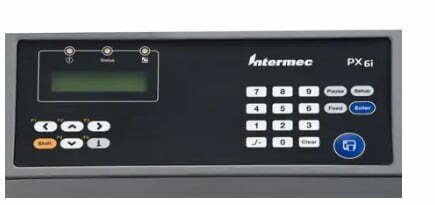

Keypad Control Panel
Interactive numeric keypad control panel
Power Supply
AC Voltage: 90 to 265 VAC, 45 to 65Hz
PFC Regulation: IEC 61000-3-2
Power Consumption: Standby 20W;
Continuous average 125W; Peak 400W
Operating Environment
Ambient Operating Temperature:
+5°C to +40°C (+41°F to +104°F)
Storage Temperature: -20°C to +70°C (-4°F to +152°F)
Humidity: 10 to 90% non-condensing
Regulatory Approvals
CE (EN55022 Class A), FCC Class A, UL/cUL, C-Tick
Options
RFID, integral self-strip unit with liner takeup,
Label Taken Sensor (LTS), Compact Flash (CF)
memory, various international double byte fonts,
alphanumeric keyboard*, parallel interface board,
additional serial interface board*, industrial interface
board*, applicator interface board*, real time
clock, media supply hub, cutter, label low sensor
Features
- Strong, all-metal construction and
superior throughput for 24×7 printing
in harsh industrial environments - Ideal for high volume & compliance
applications – the PX4i prints at

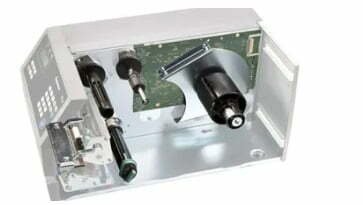

406 dpi without loss of speed - Modular design facilitates integration
into automated labeling applications
• Smart Printing capabilities support
stand-alone printer applications,
eliminating PC expense and complexity - All-in-one, user-selectable
printer languages – Fingerprint/
Direct Protocol (DP), IPL, ZSim
and DSim – in every printer - Secure wireless connectivity : CCX
and WiFi® certified with WPA2 - Integrated Ethernet, USB host and
device, and serial interface standard - Internet Protocol v6 (IPv6) support

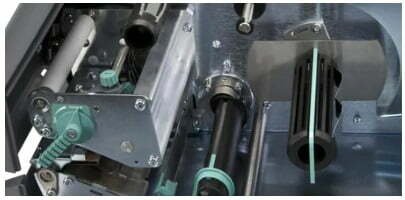

- Interchangeable print head provides
choice of print resolution - RFID option supports ISO18000
– 6B 6C/ EPC Gen 2
