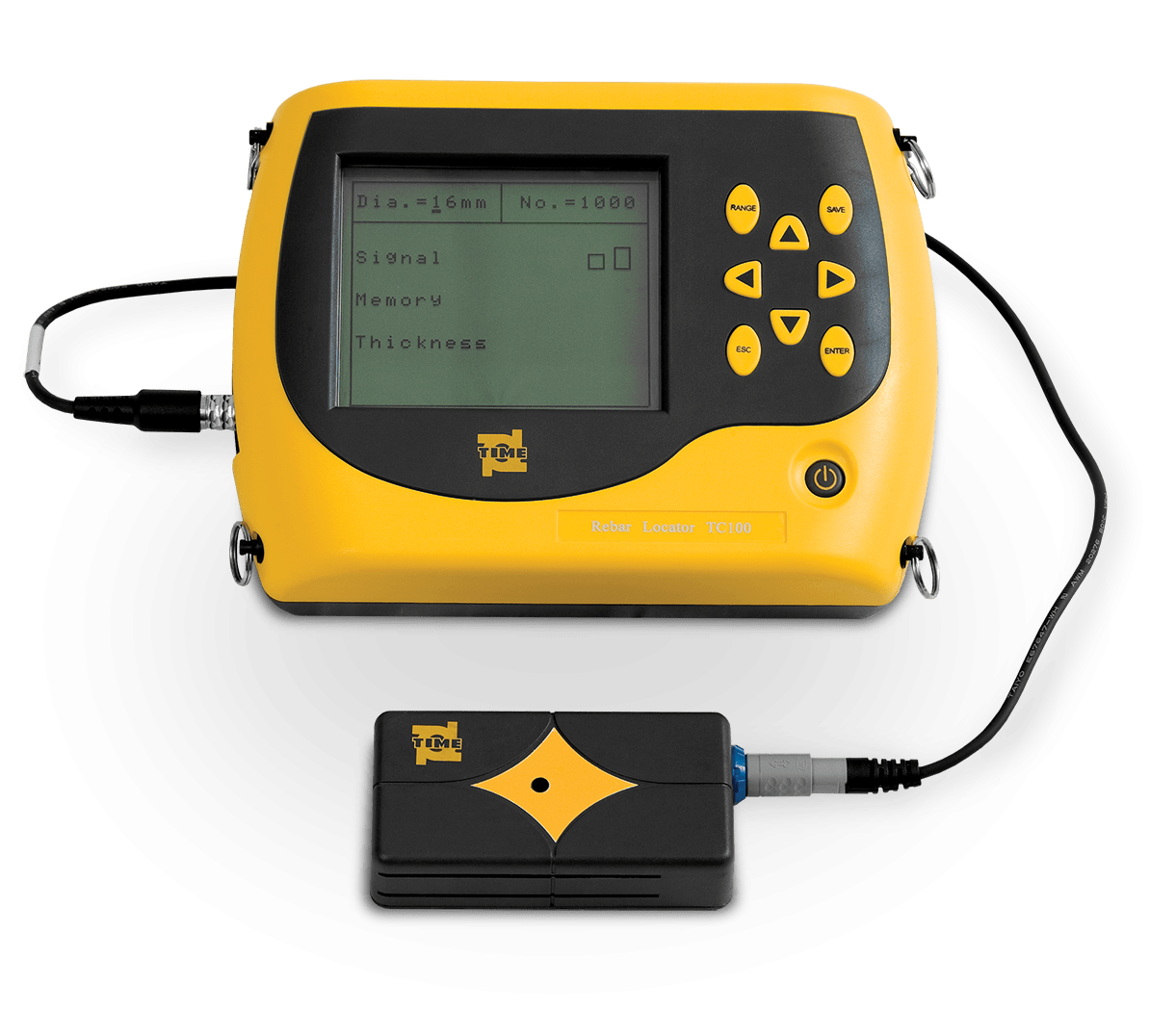

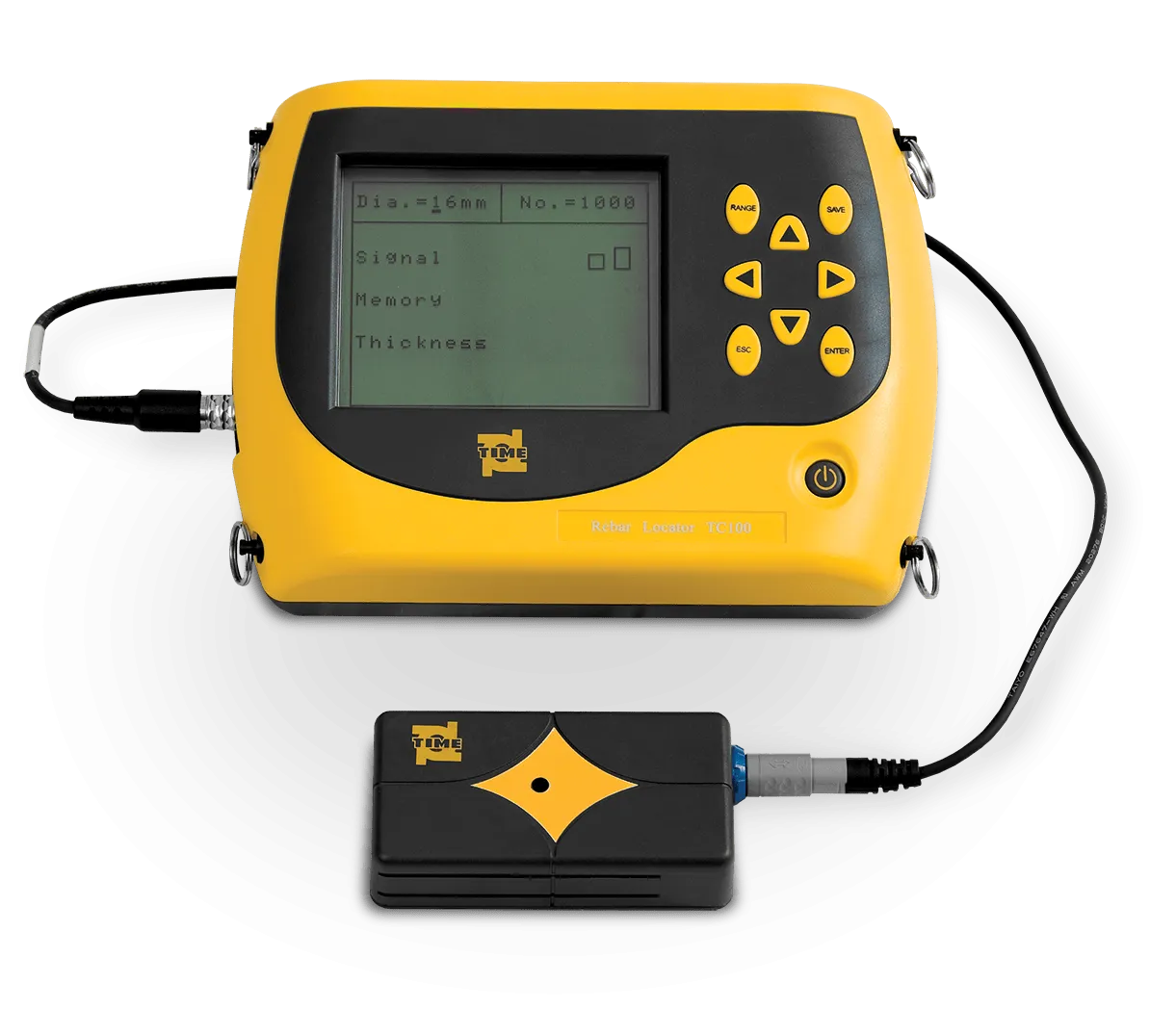

TC100/110 is used to detect the thickness of concrete covering layer and rebar diameter. Besides, it can detect the location of magnetic substance and electric and electric conductor in non-magnetic and non-conductive medium, e.g. cable inside wall body and water & heating pipe etc. it is a kind of intelligent nondestructive test equipment possessing the functions of automatic detection, data memory and output.
Features
- Acceptance inspection of cover after formwork is removed
- Locate rebars to avoid them when drilling holes
- Provide essential data (location, cover, diameter of rebars) for strength calculations of reinforced concrete structures
- Measuring concrete cover thickness
- Quality assurance in mass production of fabricated concrete elements
- Measuring the thickness of concrete over steel reinforcement and metal pipes
- Signal strength bar display and sound alarm for high accuracy
- Real time graphic output both to screen and printer
- Data processing software compatible with windows 95/98/2000/Me/WT/XP
- Auto calibration, correct the system error
- Three scan modes for TC110:grid pattern, profile scan and large area scan
- For TC110: direct display grid and profile image of rebars
Technical Specifications
|
Covering layer thickness measuring range |
Range ?:6mm-90mm |
|
|
Range ?:7mm-200mm |
||
|
Rebar diameter measuring range |
Ø6mm- Ø50mm |
|
|
Tolerance of covering layer thickness |
Range ? |
Range ? |
|
±1mm |
6mm-59mm |
7mm-79mm |
|
±2mm |
60mm-69mm |
80mm-119mm |
|
±4mm |
70mm-90mm |
120mm-180mm |
|
Display |
Large graphic display with backlight |
|
|
Operating temperature |
-10?~40? |
|
|
Relative humidity |
<90% |
|
|
Dimension (mm) |
210 x 153 x 90 |
|
|
Weight (g) |
880 |
|
??
Other special testing conditions
- Avoid strong magnetic field interruption
- Avoid high temperature
- Has no corrosive gas in the atmosphere
| Standard Delivery (TC100) | ? | Standard Delivery (TC110) | ? |
| Main unit | 1 | Main unit | 1 |
| Transducer | 1 | Transducer | 1 |
| Software | 1 | Software | 1 |
| Signal cable | 1 | Signal cable | 1 |
| Shoulder strap | 1 | Shoulder strap | 1 |
| AA battery (LR6) | 6 | Connecting cable | 1 |
| Key | 2 | Scanning trolley | 1 |
| TIME certificate | 1 | AA battery (LR6) | 6 |
| Warranty card | 1 | Key | 2 |
| Instruction manual | 1 | TIME certificate | 1 |
| ? | Warranty card | 1 | |
| ? | ? | Instruction manual | 1 |
