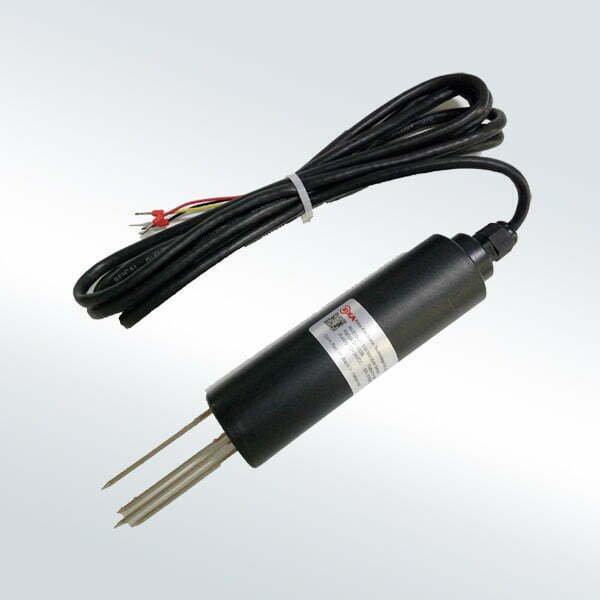

RK510-01 adalah akurasi tinggi, sensitivitas tinggi alat ukur kelembaban tanah.Produk ini berdasarkan prinsip pulsa elektromagnetik (FDR: Frequency Domain Reflectometry) untuk mengukur konstanta dielektrik tanah, probe stainless steel dimasukkan ke permukaan tanah atau profil tanah untuk pengukuran online cepat kadar air volumetrik tanah, metode ini adalah metode yang paling populer pengukuran kelembaban tanah. Hal ini dapat digunakan secara permanen tertanam di dalam tanah. Sensor kelembaban minyak dapat secara luas diterapkan pada pemantauan kelembaban tanah, hemat air irigasi, kontrol rumah kaca, pertanian halus, hidrologi dan meteorologi, dan bidang lainnya, pemantauan jalan.
FITUR
* Empat probe jarum 316L
* Stabilitas tinggi
* Akurasi tinggi
* Respon cepat
* Instalasi Mudah
* Tidak terpengaruh oleh pupuk kimia dan pengaruh ion logam
APLIKASI
* Irigasi pertanian
* Rumah Kaca
* Peternakan rumput
* Pemantauan lingkungan
* Konservasi air
* Pengujian tanah
TECHNICAL SPECIFICATION
Item |
Technical Specification |
Range(m3/m3) |
0-100%,0-50%,0-30%, |
Accuracy |
±2%(0-50%) |
Output Signal |
4-20mA ,0-5V,0-2V, RS485 optional |
Response Time |
<1s |
Supply |
5V, 12-24VDC |
Effective measurement area |
With the center of the probe diameter is 70mm, high 70mm cylinder |
Housing |
ABS |
Dimensions |
Ø50*208mm( probe:Ø4*78mm) |
Operating Temperature |
-30℃-+70℃ |
Ingress Protection |
IP67 |
Storage |
10-60℃@20%-90%RH |
Probe material |
316L stainless steel |
DIMENSION
Unit:mm
MOUNTING
Testing medium should be with uniform intensity;
If surface soil water content measurement, the sensor should be insert into soil vertically. Do not shake the sensor when inserted, otherwise the probe will be blended;
If multi-layer soil water content measurement, the sensor should be buried in the soil and parallel to the ground. Make sure the probe not be blended;
When removing sensors from the soil, please hold the sensor housing shell and do not forcibly pull on the cable. Soil on probes should be brushed tightly;
Please keep the sensor in dry & clean conditions.
PARAMETER SELECTIONTABLE
Remark |
Series |
Type |
Range |
Supply |
Output |
Cable Length |
|
RK |
|
|
|
|
|
|
|
|
510 |
|
|
|
|
|
|
|
|
01 |
|
|
|
|
|
A | 100% | ||||||
B | 50% | ||||||
C | 30% | ||||||
A | 5V | ||||||
|
|
|
B |
|
|
12-24V |
|
|
|
|
X |
|
|
Other |
|
|
|
|
|
A |
|
4-20mA |
|
|
|
|
|
B |
|
0-5V |
|
C | 0-2V | ||||||
|
|
|
|
D |
|
RS485 |
|
|
|
|
|
X |
|
Other |
|
|
|
|
|
|
2000 |
Units:mm(typ) |
|
|
|
|
|
|
… |
Units:mm |
Example: RK510-01ABA2000 Range: 0-100%, Supply: 12-24V, Output:4-20mA,Cable Length:2m.
