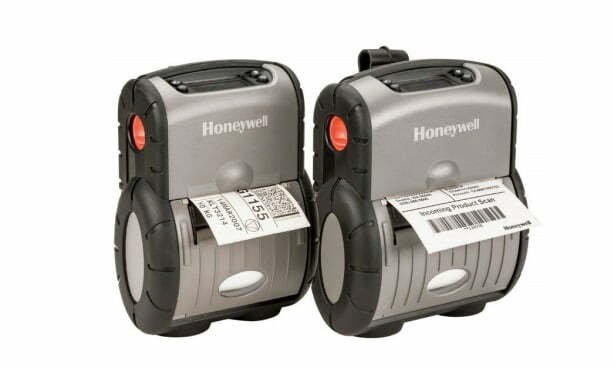

RL3e and RL4e Mobile Label Printers

MECHANICAL

Dimensions (H x W x D):
RL3e: 193 mm x 142 mm x 81 mm
(7.6 in x 5.6 in x 3.2 in)
RL4e: 200 mm x 166 mm x 81 mm
(7.9 in x 6.5 in x 3.2 in)
Weight (Printer Only):
RL3e: 0.88 kg (1.95 lb)
RL4e: 0.98 kg (2.16 lb)
Drop Specifications: 1.8 m (6 ft)
IP Rating: IP54 (when used with the
protective case)
User Interface: 128 x 64 LCD display
with white LED backlighting, four-button
user interface

ENVIRONMENTAL

Operating Temperature: -20°C to 50°C
(4°F to 122°F)
Storage Temperature: -40°C to 60°C
(40°F to 140°F)
Charging Temperature: 5°C to 40°C (41°F
to 104°F)
Relative Humidity Range: 10% to 90%,
non-condensing
ESD Protection: 8 kV Air; 4 kV Contact

PRINT TECHNOLOGY

Printhead: Direct thermal; 8 dots per mm
(203 dots per in)
Print Width:
RL3e: 72 mm (2.8 in)
RL4e: 105 mm (4.125 in)
Print Mechanism Speed: 102 mm per
second (4 in per second)
Speed rating under normal optimal operating
conditions. Performance may vary based on
temperature of operating environment and
label file density.

POWER SOURCE

Battery: 14.8V Lithium-ion, 33 W-h
(2200 mAh)
DC Inputs: External DC jack, 11–15V, builtin spike and surge protection with battery
management
Recharging: 4 – 6 hours
Endurance:
RL4e: Prints more than 320, 100 mm
x 150 mm (4 in x 6 in) labels when
operating 16 continuous hours on an
802.11 network
RL3e: Prints more than 850, 76 mm x 152
mm (3 in x 1 in) labels when operating
for 28 consecutive hours on an 802.11
network
Memory: 64 MB RAM/128 MB Flash

COMMUNICATION

Serial: RS-232, up to 460.8 Kbps
USB: 2.0 (full speed)
Bluetooth®: Bluetooth 2.1 dual radio mode;
serial port profile, security modes 1-4,
encryption 1-3e
802.11 a/b/g/n Option:
Network standard: IEEE 802.11 a/b/g/n
and Bluetooth with dual radio mode
Wireless access modes: infrastructure
and ad-hoc
Security Protocols:
DETAILS WEP WPA WPA2
MODES PSK/Enterprise
SECURITY/
ENCRYPTION
64/128 TKIP/RC4 CCMP/AES
AUTHENTICATION LEAP, EAP-PEAP, EAP-FAST, EAPTTLS, EAP-LEAP, IPV4
Internet Protocols Supported: UDP/
TCP, DHCP BootP, FTP, FTPS, SFTP, TFTP,
Telnet, LDP, SNMP; remote and Auto
Update features supported; 802.11i

MEDIA

For optimum print quality and printer
performance, use certified Honeywell media.
Media Width:
RL3e: 26 mm to 79 mm (1 in to 3.125 in)
RL4e: 51 mm to 105 mm (2 in to 4.12 in)
Media Type: Linered and linerless* labels
with black mark or gap sensing; external
fanfold or roll supply
Maximum Roll Capacity: 67 mm (2.65 in)
O.D.; 19 mm (0.75 in) I.D. core
Media Thickness: 2 mil to 6.5 mil
* For use in RLe Series printers equipped
with linerless option only.

AGENCY APPROVAL

Contact your Honeywell sales representative
for the most recent list of agency approvals.
FCC 15 Class B, EN55022 Class B,
EN55024, IEC 60950-1 2nd Edition,
EAC – Customs Union, CCC, SRRC
Safety: UL/cUL, CE

BARCODES/FONTS/GRAPHICS

Scalable Fonts: CG Triumvirate Bold
Condensed, CG Triumvirate, and CG Times
with Cyrillic, Greek, Arabic, and Hebrew
character support from Monotype Imaging
Standard Fonts: 5.5CPI, 7.2CPI, 10.2CPI,
10.7CPI, 18.5CPI, 20.4CPI, 22.6CPI, 34.0CPI,
OCR-A, OCR-B (additional fonts available)
Downloadable Font Types: TrueType, Bitmap
Character Sets: Unicode/UTF8 support:
50 international symbol sets, Big 5, JIS and
Shift JIS, and more
Optional Characters: Arabic, Greek,
Hebrew, Unicode subset including Latin;
Asian (including Big 5, Simplified Chinese,
Kanji, Hangul, and Shift JIS); additional
international characters available
Barcodes:
Linear: Codabar, Code 3 of 9, Code 93,
Code 128, EAN-8, EAN13, Interleaved 2
of 5, HIBC, PLESSEY, MSI/Plessey, UCC/
EAN-128, UPC-A, UPC-E, UPC 2 and 5
digit addendums, Postnet, Telepen, UPS
MaxiCode, FIM, USD-8
2D Symbologies: PDF417, Aztec,
QR Code, GS1, Datamatrix, TLC39,
MicroPDF417
Graphics: Supports storage of graphics/
logos in Flash memory and transient “print
once” graphics

SOFTWARE/FIRMWARE

NETira™ Configuration Tool: complete
printer set-up utility
NETira MS: Menu Scripting
NETira CA: NETira Connect for AirWatch
Control Language Compatibility: Ez-Print,
DPL, ZPL II, CPCL, IPL, XML (limited)
Device Management Compatibility: NETira
Remote Management: monitor and
manage printers; NETira MD: mobile
device management utility for smart
mobile devices; AirWatch® Mobile Device
Management: Wavelink® Avalanche MC
Network Compatibility: TCP-IP based
networks; AS/400 (LPD) based networks
Drivers: Microsoft® Windows® XP, Windows
Vista, Windows 7, and Windows 8
NETira LD: Label Design Software
Label-Design Software Compatibility:
BarTender®, Niceware/NiceLabel, and others
ERP Systems Compatibility: SAP, Oracle
Software Development Kit: Android™ 2.1
and above, Apple® iOS 5, 6, and 7; Microsoft
Windows Desktop up to Windows 8, Windows
8 Store, Windows Mobile, and Windows CE;
C++, C-Sharp, Java, ActiveX Control

OPTIONS

AirWatch support
Lua and JSON scripting language

ACCESSORIES

Charge contacts
Cigarette lighter vehicle charger
Configurable multi-bay charger
Dual-battery charger
IP54 environmental case
Linerless single-bay charger for use with
external multi-unit charging adaptor

WARRANTY

Standard Warranty: Covers platen roller,
printhead, and installed options when used
with approved supplies
Printer: 2 years
Extended Warranty: Contact your
Honeywell sales representative for
extended warranty options available
through Honeywell Repair Services.

Features

• The RLe Series continues to print after 26 consecutive drops to concrete from 1.8 m (6 ft), even in extreme temperature conditions.
• Includes popular language emulations that allow youto easily replace existing printers in the workplace.
• The lithium-ion battery offers maximum power capacity for an eight-hour shift, even under the toughest conditions.
• Change paper rolls with one hand. Speed label application with an intuitive LCD screen and a peel-andpresent mechanism.
• Co-engineered media supplies ensure optimum, trouble-free performance and guarantee the highest print quality and image stability
