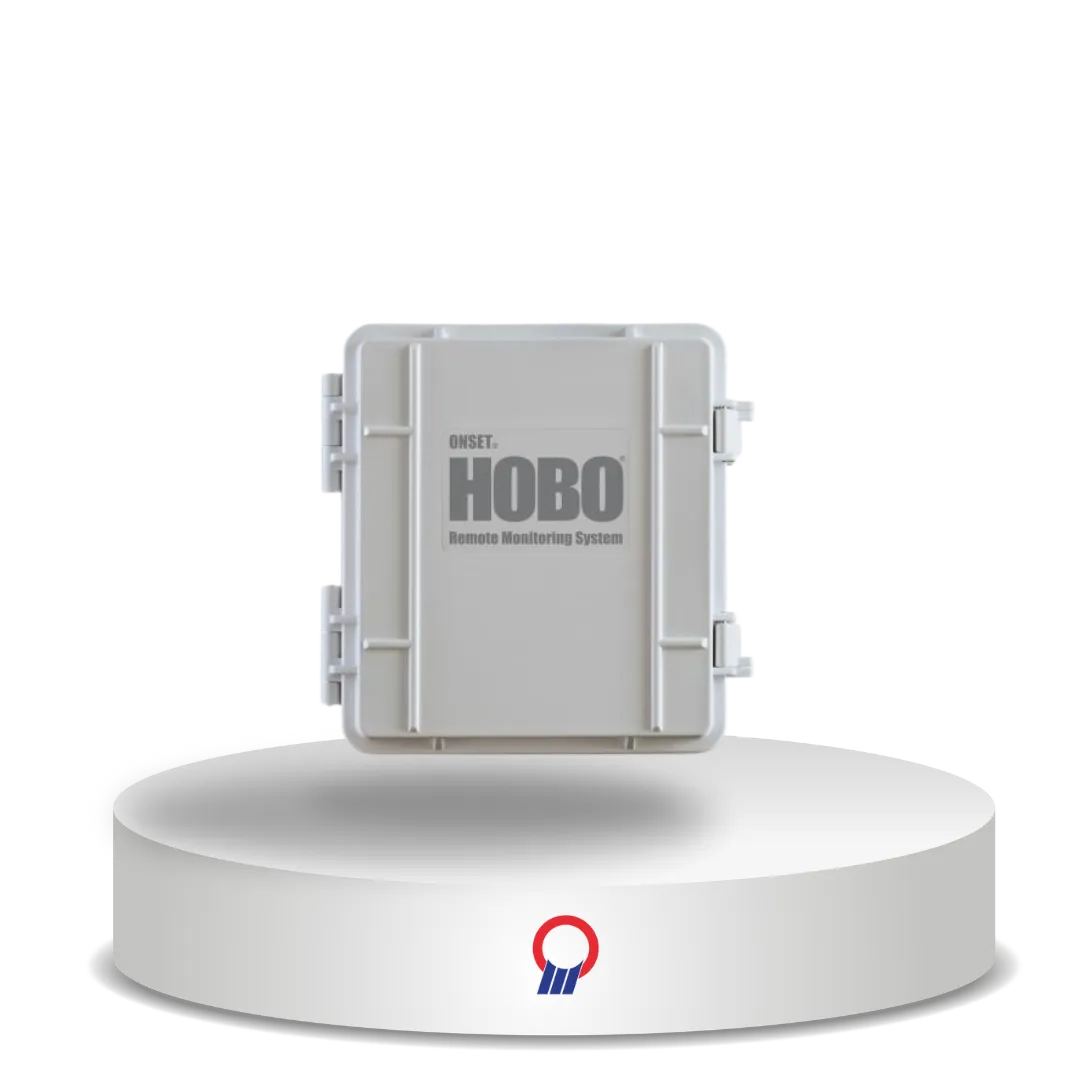

HOBO RX3000 adalah stasiun data logging jarak jauh yang fleksibel, memberikan akses instan ke data lingkungan spesifik lokasi kapan saja melalui internet, dilengkapi layar LCD dan sistem plug-and-play.
Perangkat ini merupakan komponen utama HOBOnet Field Monitoring System yang hemat biaya dan skalabel untuk pertanian, riset lingkungan, gudang, cold chain, dan rumah kaca.
| Operating Range | -40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC |
| Smart Sensor Connectors | 10 |
| Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
| Smart Sensor Data Channels | Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details) |
| Module Slots | 2 |
| Logging Rate | 1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours |
| Time Accuracy | ±8 seconds per month in 0° to 40°C (32°F to 104°F) range; ±30 seconds per month in -40° to 60°C (-40° to 140°F) range |
| Battery Type / Power Source | 4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR) |
| Rechargeable Battery Service Life | Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life |
| Memory | 32 MB, 2 million measurements, continuous logging |
| Alarm Notification Latency | Logging interval plus 2–4 minutes, typical |
| Enclosure Access | Hinged door secured by two latches with eyelets for use with user-supplied padlocks |
| LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Materials | Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish |
| Size | 18.6 × 18.1 × 11.8 cm (7.3 × 7.1 × 4.7 in.) |
| Weight | 2.2 kg (4.85 lb) |
| Mounting | 3.8 cm (1.5 inch) mast or wall mount |
| Environmental Rating | Weatherproof enclosure, NEMA 4X (requires proper installation of cable channel system) |
| Wireless Radio-RX3003 | GSM/GPRS/EDGE Quad Band (850/900/1800/1900 MHz); UMTS/HSPA+ Five Band (800/850/900/1900/2100 MHz) |
| Wireless Radio-RX3004 | GSM/GPRS/EDGE Quad Band (850/900/1800/1900 MHz); UMTS/HSPA+ Seven Band (800/850/900/1800/1900/2100 MHz); LTE Twelve Band (700/800/850/900/1800/1900/2100/2600 MHz) |
| Antenna | RX3003: Penta Band RX3004: 4G LTE |
| Connector | One RJ45/100BaseT |
| Network Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.412 – 2.484 GHz |
| Antenna Connector | 1 (tanpa diversity) |
| Data Rates | 1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n: 6.5 Mbps hingga 65 Mbps |
| Selectable Radio Subchannels | Up to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and “Other” (multiple countries) |
| Radio Modulations | OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM |
| Security | WEP 64/128, WPA-PSK, AES end-to-end encryption, WPA2, protocols not listed are not supported |
| Maximum Receive Level | -10 dBm (with PER <8%) |
| Receiver Sensitivity | -72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps, -90 dBm for 2.0 Mbps, -92 dBm for 1.0 Mbps |
| Wireless Radio – RX3003 | GSM/GPRS/EDGE: Quad band 850 / 900 / 1800 / 1900 MHz UMTS/HSPA+: Five band 800 / 850 / 900 / 1900 / 2100 MHz |
| Wireless Radio – RX3004 | GSM/GPRS/EDGE: Quad band 850 / 900 / 1800 / 1900 MHz UMTS/HSPA+: Seven band 800 / 850 / 900 / 1800 / 1900 / 2100 MHz LTE: Twelve band 700 / 800 / 850 / 900 / 1800 / 1900 / 2100 / 2600 MHz |
| Antenna | RX3003: Penta band RX3004: 4G LTE |
