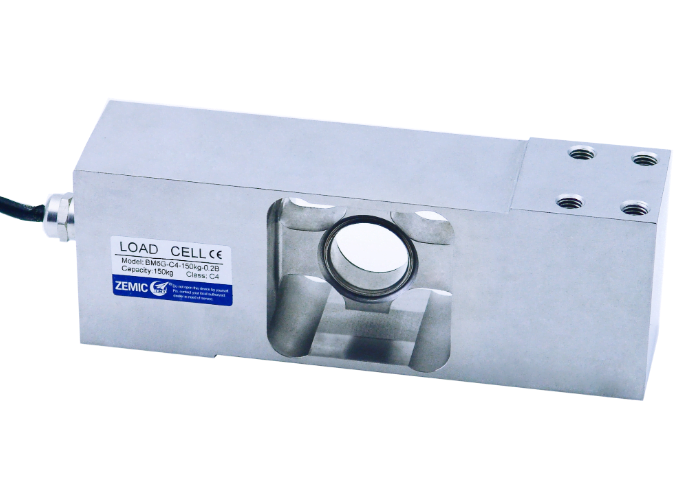

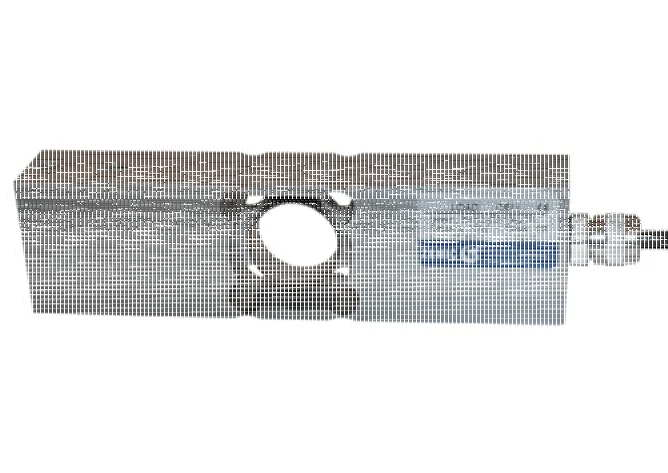

Stainless Steel Single Point Load Cell BM6G, OIML approved (10kg-500kg)

Spesifikasi

• Stainless steel IP68/IP69k single point load cell.
•  Suitable for platform, belt scales and other weighing devices.
• Maximum platform size 800 x 800mm (for 100 – 500 kg).
• Maximum platform size 400 x 400mm (for 10 – 50 kg).
• 10kg only available with PTB certificate D09-10.06 Revision 1 of C R60/2000 DE1-10.02.
• 10kg, 20 kg, 50 kg also available with C4MR approval with PTB certificate D09-10.06 revision 1, C of C R60/2000 DE1-10.02.

Available models
Capacity      Accuracy                     Full article description
10kg             C3/C4/C4MR              BM6G-C3/C4/C4MR-10kgSE-3B6
20kg             C3/C4/C5/C4MR        BM6G-C3/C4/C5/C4MR-20kgSE-3B6
50kg             C3/C4/C5/C4MR        BM6G-C3/C4/C5/C4MR-50kgSE-3B6
75kg             C3/C4/C5                    BM6G-C3/C4/C5-75kgSE-3B6
100kg           C3/C4/C5                    BM6G-C3/C4/C5-100kgSE-3B6
100kg           C3/C4/C5                    BM6G-C3/C4/C5-100kg-3B
150kg           C3/C4/C5                    BM6G-C3/C4/C5-150kg-3B
200kg           C3/C4/C5                    BM6G-C3/C4/C5-200kg-3B
300kg           C3/C4/C5                    BM6G-C3/C4/C5-300kg-3B
400kg           C3/C4/C5                    BM6G-C3/C4/C5-400kg-3B
500kg           C3/C4/C5                    BM6G-C3/C4/C5-500kg-3B
