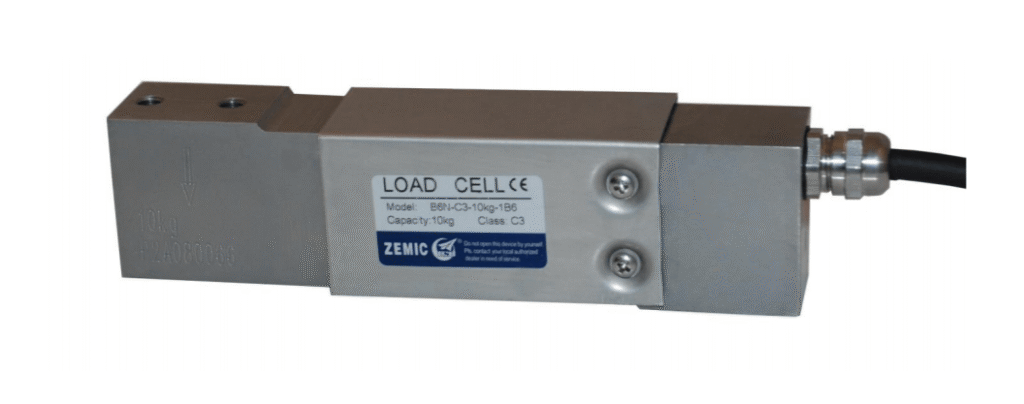

Stainless Steel Single Point Load Cell, OIML approved B6N (8kg-200kg)

Stainless Steel Single Point Load Cell, OIML approved B6N (8kg-200kg)
Stainless Steel Single Point Load Cell, OIML approved B6N (8kg-200kg) - Image 2

Load Cell, Single Point Load Cell, Alat Konversi Ketegangan, Sensor Timbangan, Sensor Load Cell, Sensor Timbangan Digital, Jual Sensor Timbangan

Available Models B6N

Technical Spesification B6N

Spesifikasi

  • Stainless steel IP67 single point load cell.
  • Bending beam.
  • Suitable for weighing equipment like platform and belt scales.
  • Maximum platform size: 400 x 400 mm.

Available models
Capacity      Accuracy      Full article description
8kg               C3/C4           B6N-C3/C4-8kg-1B6
10kg             C3/C4           B6N-C3/C4-10kg-1B6
15kg             C3/C4           B6N-C3/C4-15kg-1B6
20kg             C3/C4           B6N-C3/C4-20kg-1B6
30kg             C3/C4           B6N-C3/C4-30kg-1B6
50kg             C3                 B6N-C3-50kg-1B6
75kg             C3                 B6N-C3-75kg-1B6
100kg           C3                 B6N-C3-100kg-1B6
150kg           C3                 B6N-C3-150kg-1B6
200kg           C3                 B6N-C3-200kg-1B6
