| FEATURES : |
- Full stainless steel construction material SUS 304
- Rubber for protect sensor from water

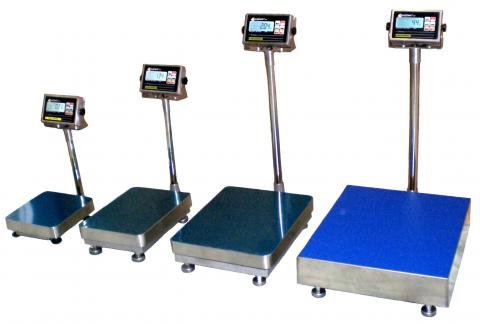

- Construction of platform :
* Four side stopper for over load weigh
* Middle stopper for protect sensor for transportation
* Rust proof stainless steel SUS 304 platter
- Features and specification of indicator, see the catalog of the indicator
- According the function have 2 option model Indicator : GW / A12ESS
| SPECIFICATIONS : |
| SPECIFICATION | PLATFORM SIZE | |||
| 280 x 280 mm | 300 x 400 mm | 400 x 500 mm | 500 x 600 mm | |
| Capacity & Division | 3kg x 0.2g | 30kg x 2g | 30kg x 2g | 75kg x 5g |
| 6kg x 0.5g | 60kg x 5g | 75kg x 5g | 150kg x 10g | |
| 15kg x 1g | – | 150kg x 10g | 300kg x 50g | |
| 30kg x 2g | – | – | 500kg x 0.1kg | |
| Pan size (W x L x H) mm | 280 x 280 x 60 | 300 x 400 x 110 | 400 x 500 x 140 | 500 x 600 x 150 |
| Shape size (W x L x H) mm | 280 x 400 x 520 | 300 x 520 x 690 | 400 x 620 x 860 | 500 x 720 x 860 |
| Carton size (W x L x H) mm | 640 x 290 x 250 | 750 x 330 x 260 | 920 x 420 x 240 | 1000 x 530 x 270 |
| Gross weight/pcs (kg) | 8.2 | 10.4 | 15.4 | 28.4 |
